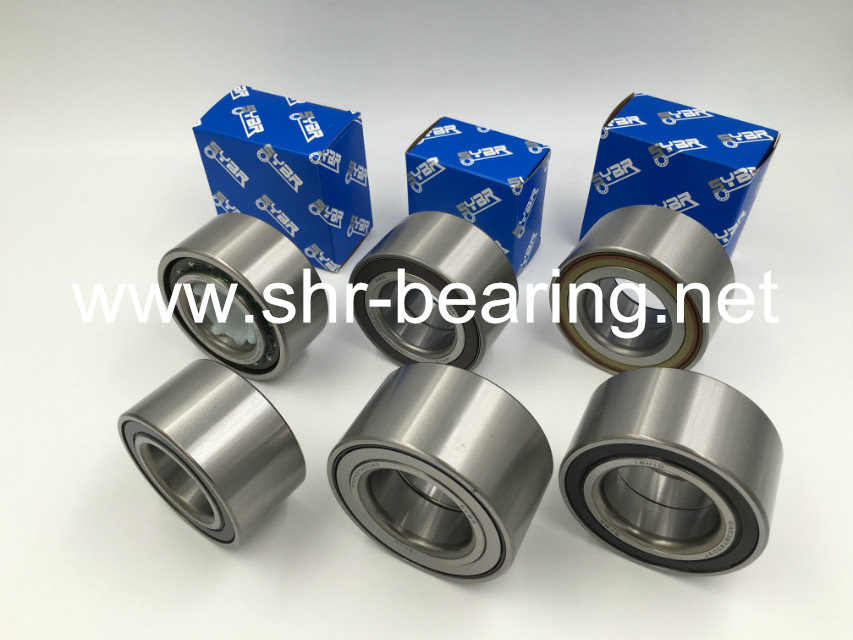

SYBR type of front wheel bearing DAC30620032

> > >

SYBR type of front wheel bearing DAC30620032

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
needle roller bearing
CARB toroidal roller bearings
thrust roller bearings
Deep groove ball bearings
Angular contact ball bearings
Thrust ball bearings
Self-aligning ball bearing
Y-bearing
Description
Technical
Application
Pictures
The automotive wheel bearings are double-row angular contact ball bearings incorporating an integral outer ring and two separable inner rings and double-row tapered roller bearings with back-to-back duplex outer rings,these bearings are available either with seals or without seals.SYBR can provide completed auto wheel bearing model types with 11 years experience.

Advantages:
◆No need for pre-load adjustment at assembly.
◆compactness and high performance of wheel axles
◆no need for grease replenishment at assembly
◆high productivity,large load rating
◆Appropriate interneal axial clearance,superior sealing
Wheel bearing Specification:


Brand

NSK

Name

wheel bearing

Model

DAC20420030/29-2 rs, DAC24450060-2 rs, DAC255200206-2 rs, DAC25521037-2 rs, DAC25520042-2 rs, DAC25520043-2 rs, DAC25620048-2 rs,

DAC27520045/43-2 rs, DAC27530043-2 rs, DAC28580038-2 rs, DAC28580042-2 rs, DAC28590038/28 - E, DAC28610042 - E, DAC29530037 - ZZ, DAC30580042-2 rs, DAC30600037-2 rs,

Material

GCr15

Certificate

ISO9001:2001

Precision

P0, P6, P5

Bore Size:

25mm-200mm

Outside diameter

52mm-420mm

Clearance

C0,C1,C2,C3,C4,C5 etc.

Cage Type

Brass cage or Stainless cage

Seals Type

RS, 2RS, R2, Z, 2Z, 2RZ etc

Features

 Auto front wheel bearings play a critical role in keeping vehicles safe and smooth. Wheel bearings are typically located at the spindle of the wheel hub to allow free wheel movement. They  are designed to support the weight of the vehicle and allow it to roll with minimal force while withstanding the loads from high speed cornering and hard acceleration and braking. Wheel bearings must withstand outrageous temperatures and conditions.

Application

It is used widely for the application uesd cars etc.

Package

pallet, wooden case,industrial package or as customers' requirement

Price

FOB, CRF, CIF

Delivery Time

1-3 days

Payment Terms

A.100% irrevocable L/C at sight

B.30% T/T in advance, 70% against copy of B/L

C. Western Union

D. Others

Bearings d D B N/W(kg)
DAC255200206 25 52 20.6 0.19
DAC25520037 25 52 37 0.33
DAC25520042 25 52 42 0.36
DAC25560032 25 56 32 0.35
DAC27600050 27 60 50 0.42
DAC28580042 28 58 42 0.41
DAC28610042 28 61 42 0.51
DAC30550026 30 55 26 0.32
DAC30600037 30 60 37 0.46
DAC30600338 30 60.03 37 0.41
DAC30600342 30 63.03 42 0.56
DAC30630042 30 63 42 0.57
DAC30640042 30 64 42 0.58
DAC30650021 30 65 21 0.27
DAC30680045 30 68 45 0.72
DAC32720045 32 72 45 0.81
DAC32730054 32 73 54 0.98
DAC34620037 34 62 37 0.42
DAC34640034 34 64 34 0.43
DAC34640037 34 64 37 0.5
DAC34640037A 34 64 37 0.5
DAC34660037 34 66 37 0.52
DAC34680037 34 68 37 0.55
DAC34680037A 34 68 37 0.55
         Wheel hub bearing's main function is to provide accurate guide for the rotation of the wheel hub, it carry axial load,
and bear radial load, is a very important component.Wheel hub bearing unit is in the standard angular contact ball bearings
and tapered roller bearings, on the basis of it will be two sets of bearing as a whole, the advantages are the assembly performance
is good, can omit clearance adjustment, light weight, tight structure, and load capacity is big, can first fill grease when sealed bearing,
omit the external wheel hub seal and no maintenance etc, and has been widely used in cars, in a truck also has a tendency
to gradually expand the application.

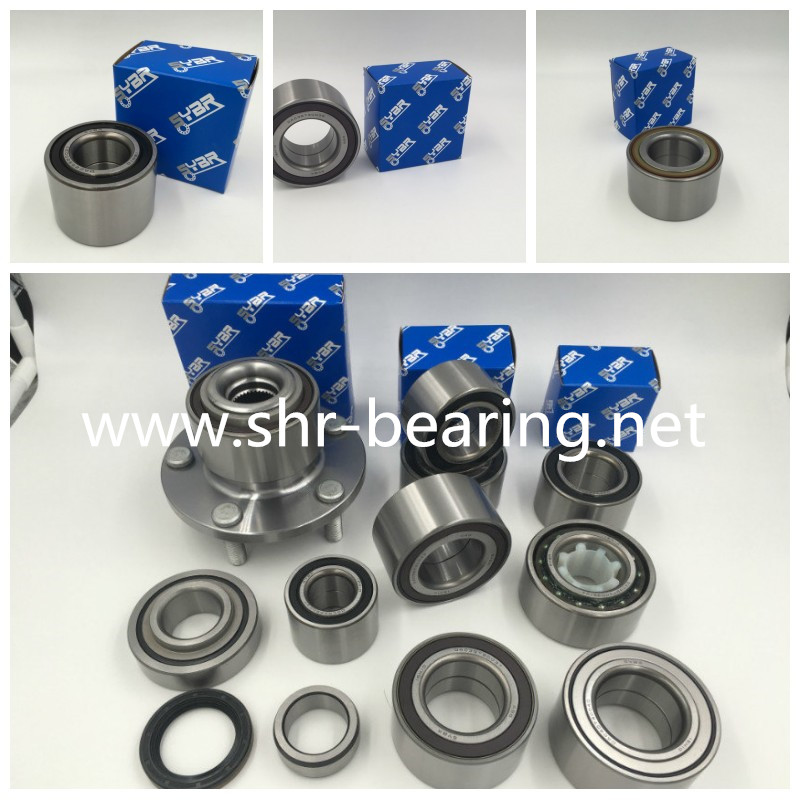

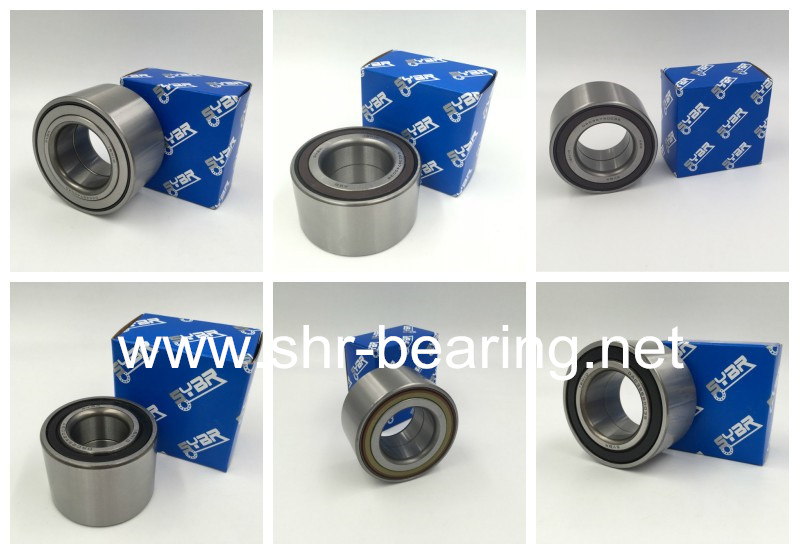

Pictures of wheel bearings
