FAG 803775 Wheel Hub Bearings for Heavy Trucks

> > >

FAG 803775 Wheel Hub Bearings for Heavy Trucks

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
needle roller bearing
CARB toroidal roller bearings
thrust roller bearings
Deep groove ball bearings
Angular contact ball bearings
Thrust ball bearings
Self-aligning ball bearing
Y-bearing
Description
Technical
Application
Pictures
The Brief Description of FAG Wheel Hub bearings:

FAG wheel bearings in the standard angular contact ball bearings and tapered roller bearings on the basis of development, it will be two sets of bearings as a whole, with good assembly performance, can be omitted clearance adjustment, light weight, compact structure, load capacity Large, sealed bearings can be pre-loaded with grease, omit the external wheel hub sealing and maintenance-free advantages, has been widely used in cars, in the truck also gradually expand the application trend.

Products Wheel Hub Bearing FAG 803775 for heavy trucks
Brand FAG Customers' requirements
Type Wheel Hub Bearing
Bearing Material  Chrome steel
Tolerance

P6

Clearance C3
Size 38*68*39 mm
Weight 0.6 kg
Quality Standard ISO/TS16949:2009
Service OEM or Customers' Sample
Payment Terms T/T
 Application

Widely used in general machinery ,Cars, Trucks ,Railways ,

Ships ,Mines,Metals,Power ,Agricultural machinery and so on.


FAG Wheel Hub Bearing Size Chart:


bearing DAC387436W


number Dimension   (mm)   weight SKF FAG KOYO
  d D B C kg
DAC35720433 35 72.04 33 33 0.58 633669   IR-8094
DAC36720534 36 72 34 34 0.58     DAC3572234A
DAC36680033 36 68 33 33 0.5     DAC3668W
DAC36720534 36 72.05 34 34 0.58     DAC367234A
DAC37720237 37 72.02 37 37 0.59 BA2B633028 527631 GB12807
DAC37720237 37 72.02 37 37 0.59 GB12807.SO3
DAC37720437 37 72.04 37 37 0.59 633531 562398A
DAC37740045 37 74 45 45 0.79 309946AC
DAC38700038 38 70 38 38 0.55     DAC3870DW
DAC38710233/30 38 71.02 33 33 0.5 38BWD09CA   DAC3871W-2
DAC38700037 38 70 37 37 0.52     DAC3870BW
DAC38720236/33 38 72.02 36 33 0.54     DAC3872W-3
DAC38720040 38 72 40 40 0.63     DAC3872W-10
DAC38740236/33 38 74.02 36 33 0.58   574795A DAC3874W-6
DAC38740050 38 74 50 50 0.78 38BWD06 559192 NTNDE0892
DAC39680037 39 68.07 37 37 0.48 3113158BD 540733
DAC39720037 39 72 37 37 0.56 BAHB311396B 542186A DAC3972W4
DAC39/41750037 39/41 75 37 37 0.62 BAHB633815A 567447B
DAC39740039 39 74 39 39 0.66 636096A
DAC40720036/33 40 72 36 33 0.54
DAC40720037 40 72 37 37 0.55 BAHB311433 566719
DAC40720038 40 72 38 38 0.55
DAC40740036/34 40 74 36 34 0.58     DAC4074CWCS73
DAC40740036 40 74 36 36 0.6
DAC40740040 40 74 40 40 0.66     DAC407440
DAC40740042 40 74 42 42 0.7
DAC40750037 40 75 37 37 0.62 BAHB633966
DAC40760033 40 76 33 33 0.53 555800
DAC40760033/28 40 76 33 28 0.54 474743 539166AB
DAC40760041/38 40 76 41 38 0.66     DAC4076412RCS
DAC408000302 40 80 30.2 30.2 0.7 440320
DAC40800036/34 40 80 36 34 0.73     DAC4080M1
DAC40800381 40 80 38.1 38.1 0.75
DAC40800381 40 80 38.1 38.1 0.75 GB10800
DAC40900046 40 90 46 46 0.9
DAC42720038/35 42 72 38 35 0.58
DAC42750037 42 75 37 37 0.59 309245 633196 545495D DAC4275BW2RS
DAC42760038/35 42 76 38 35 0.64     NSK42BWD06
DAC42760039 42 76 39 39 0.62
DAC42760040/37 42 76 40 37 0.64 909042 5475059A DAC427640 2RSF
DAC42800342 42 80.03 42 42 0.81 BA2B309609AD 527243C DAC4280B2RS

FAG Wheel Hub Bearings 803775 Application:


Bearing DAC3880W-1CS65

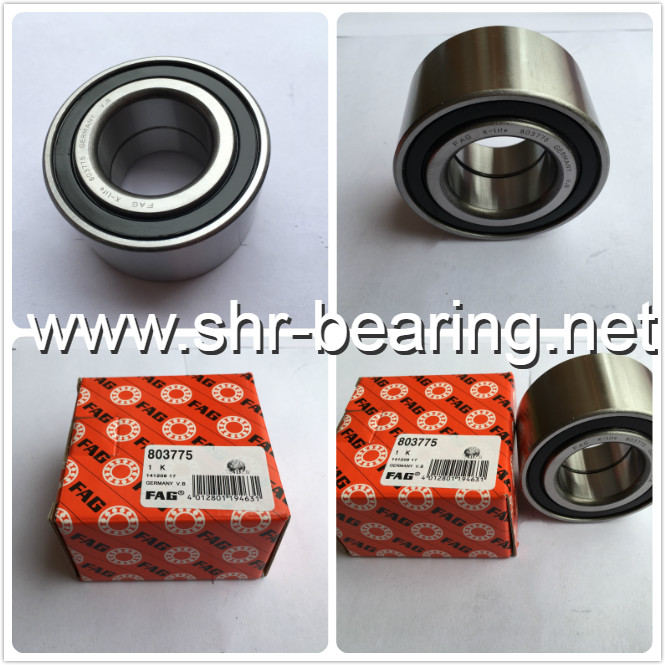

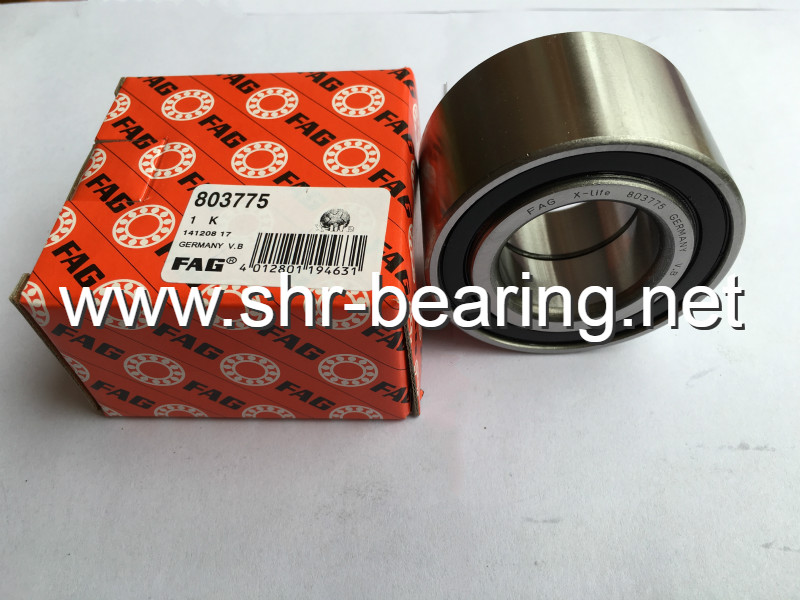

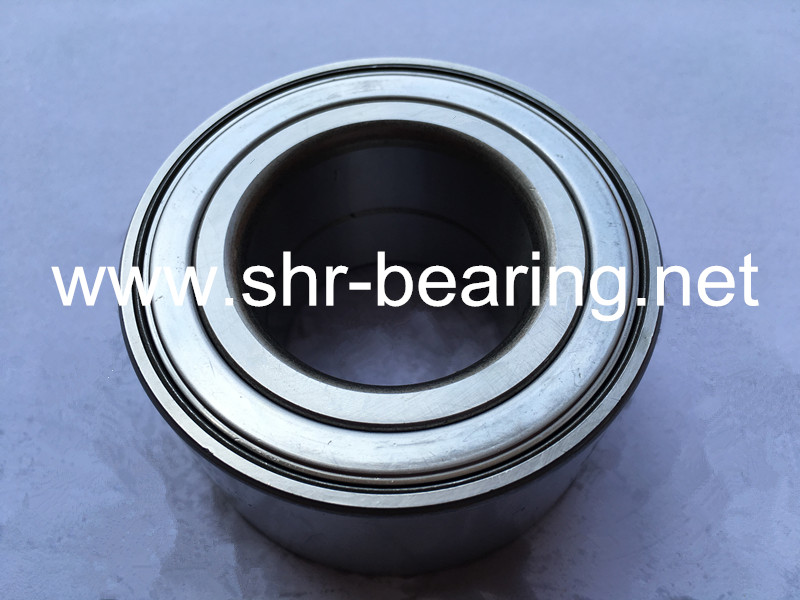

FAG Wheel Hub Bearings 803775 Pictures:
