NTN bearing NAS205D1 AS205D1 nadella bearing suppliers

> > >

NTN bearing NAS205D1 AS205D1 nadella bearing suppliers

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
needle roller bearing
CARB toroidal roller bearings
thrust roller bearings
Deep groove ball bearings
Angular contact ball bearings
Thrust ball bearings
Self-aligning ball bearing
Y-bearing
Description
Technical
Application
Pictures

 Features of the Insert ball bearings

1) Radial insert bearings are particularly easy to fit. They are located onthe shaft by means of an eccentric locking collar, grub screws in the innerring, an adapter sleeve, drive slot or fit.
2) The radial insert ballbearings are integrated in the housing units.
In order to ensure correctfunction and operational reliability in all operating conditions, the bearingand housing are matched to each other.
3) Housing materials: Cast ironpillow blocks / cast iron plummer blocks / sheet steel housings / plastichousings / stainless steel housings.

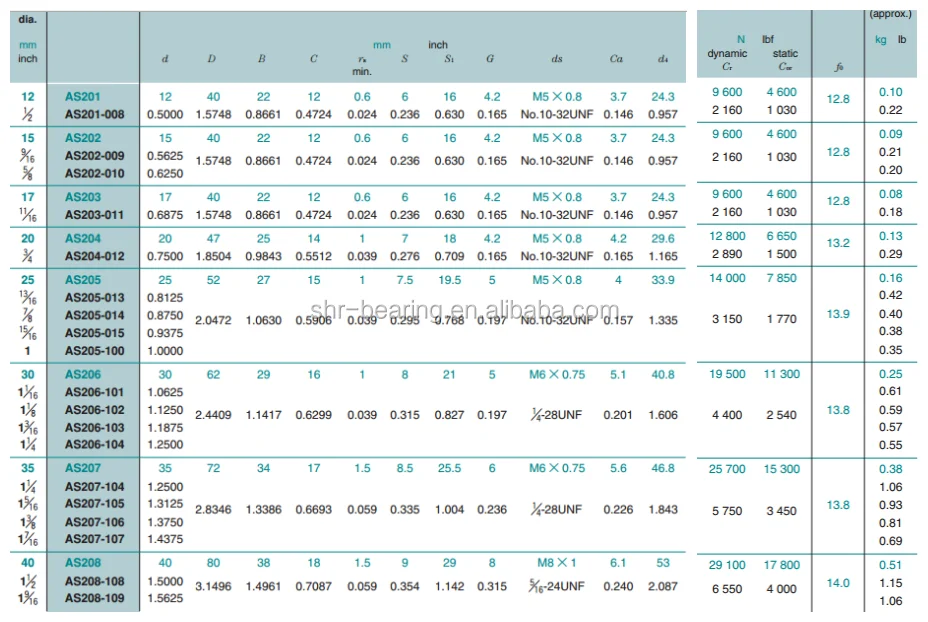

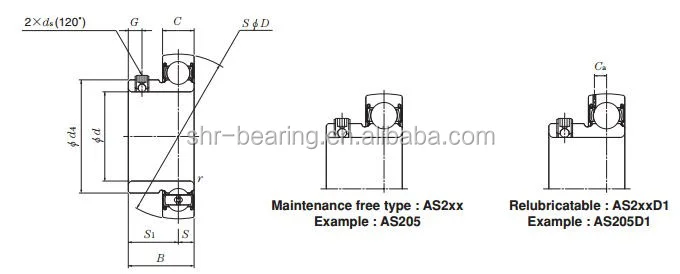

Size chart of NTN bearings AS205D1

Pillow block bearing housing NAS205D1 Japan NTN insert bearing AS205D1

Bearing model AS 205 D1
Type Insert ball bearings
Brand NTN
Inner Diameter d 25mm
Outer Diameter D 52mm
Thickness T 27mm
Weight(kg) 0.17



1. Simple and economic bearingarrangements can be made using the units. Because of their special characteristics, housed bearing units are used in agricultural machinery, construction equipment, conveyor systems, textile machines and fans as well asin machines for food and beverage processing and packaging.
2. Mountedbearing units do not permit axial displacement and are therefore unsuitablefor non-locating bearing arrangements. The distance between bearing positionsshould thus be short, or the units should be attached to resilient sheet metalfabrications to prevent them from being subjected to excessive stressing, forexample, as a result of thermal elongation of the shaft.

Pillow block bearing housing NAS205D1 Japan NTN insert bearing AS205D1

Pillow block bearing housing NAS205D1 Japan NTN insert bearing AS205D1
