SYBR 6311 2RS deep groove ball bearings bearing corporation

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

Features of deep groove ball bearings
Deep groove ball bearing is one of the largest bearing catalogs in rolling bearing.it is widely used in various kinds of machines. In additon, ball bearing is also one of the cheapest bearing type in all kinds of bearings.It’s also the widely used industrial bearings .
The main available materials of ball bearings are such as :stainless steel, chrome steel, and ceramic (silicon nitride (Si3N4)). A hybrid ball bearing is a bearing with ceramic balls and races of metal.
There are different kinds of Cages for your reference :Steel, Nylon, Polyimide, Phenolic, Peek, Bakelite, GFRPA66-25, PI, AISI, US304, SUS316, Cu or Bronze.

The bearings are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.

Deep groove ball bearing Types

Basic type; With snap ring groove on the outer ring (-N); With one shield (-Z) on one side or two shields (-2Z) on both sides; With one seal (-RS) on one side or two seals (-2RS) on both sides.

Deep groove ball bearing Applications
The bearings can be found in automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines , power tools, House hold appliances, Washing machines motors, Clutch bearings, Trailers, Casters, and various other special machines.

1	Series	ball bearing 6000 6200 6300
2	Dimension	1-100mm
3	Rows	Single & Double
4	seal	Single -row	Z ZZ RS 2RS
		Double -rows	Z ZZ RS 2RS
5	Cage	machined brass cage,pin type cage
6	Material	chrome steel, stainless steel, ceramic, plastic
7	Precision	p0, p6, p5, p4, p2
8	Quality	ISO9001:2000
9	Packing	Standard export packing & industry packing & according to clients requirement
10	Brand	SYBR
11	MOQ	20 pcs
12	Delivery term	FOB shanghai, guangzhou port & CIF
13	Delivery date	1) 3-5days (bearing in stocks,standard dimension) ;
		2)10-15 days(order to produce,standard dimension);
		3)15 days(produce as drawing,special design)
14	Payment term	1).30%T/T in advance ,70% balance has to be paid before first shippment.
		2).100% L/C at sight
		3): West Union
		4): paypal
		5): Other payment terms depend on our discussion
15	Useage	Single & double rows	motors,dynamos,combustion turbines,main shafts of machine tools,
			reducing gears,handling machinery and transporters
16	Features	Nice out looks, good quality, best price, short delivery time, easy to install to machines.
17	Others	OEM orders available

Model	d/mm	D/mm	B/mm	Weight/KG
6000ZZ	10	26	8	0.042
6001ZZ	12	28	8	0.049
6002ZZ	15	32	9	0.066
6003ZZ	17	35	10	0.086
6004ZZ	20	42	12	0.152
6005ZZ	25	47	12	0.216
6006ZZ	30	55	13	0.256
6007ZZ	35	62	14	0.342
6008ZZ	40	68	15	0.423
6009ZZ	45	75	16	0.54
6010ZZ	50	80	16	0.575
6200ZZ	10	30	9	0.071
6201ZZ	12	32	10	0.082
6202ZZ	15	35	11	0.099
6203ZZ	17	40	12	0.143
6204ZZ	20	47	14	0.234
6205ZZ	25	52	15	0.282
6206ZZ	30	62	16	0.439
6207ZZ	35	72	17	0.635
6208ZZ	40	80	18	0.807
6209ZZ	45	85	19	0.897
6210ZZ	50	90	20	1.02
6300ZZ	10	35	11	0.117
6301ZZ	12	37	12	0.132
6302ZZ	15	42	13	0.181
6303ZZ	17	47	14	0.254
6304ZZ	20	52	15	0.317
6305ZZ	25	62	17	0.511
6306ZZ	30	72	19	0.763
6307ZZ	35	80	21	1.01
6308ZZ	40	90	23	1.4
6309ZZ	45	100	25	1.84
6310ZZ	50	110	27	2.36

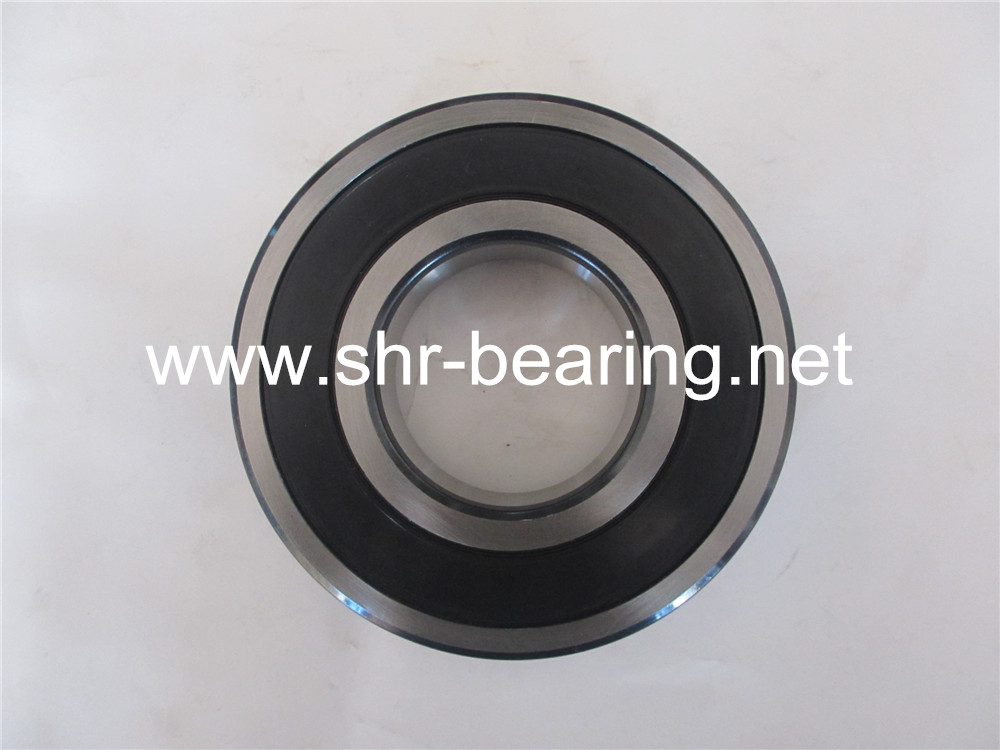

Pictures of deep groove ball bearings

Our advantage

Customers with us
