The Brief Description of Pillow Block Insert Ball Bearing :


 Pillow block bearing unit is combination of an insert bearing, seal and a housing.The internal structure of the insert ball bearing is the same with that of deep groove ball bearing. But the inner race of this bearing is wider than the outer race. The outer race has the spherical surface. Insert ball bearings can self aligning with the fit between the outer race and the bearing block. Insert ball bearings are compact. It’s easy for loading and unloading.Pillow block bearings are widely used in mining, machinery, automotive, textile and chenmical industries.



We can supply UCP, NAP, UKP, SBPP, SAPP,NAF, NAFU,UCF, UCFL, NAFL, NAFL, UCFC, NAFC, SBPF, UCT, NAT, UCC, UCFB, UCFA, UCPH, UCFX series pillow block bearing units.


Insert Ball Bearings Features:

Insert Ball Bearings are designed in almost the same way as deep groove ball bearings,

except that the outer ring is spherical. Their design allows the bearings to be easily

 mounted in a housing block and be self-aligning.

Features :
1) The insert bearings are the deep groove ball bearings with wide inner rings
2) It inserts in housing work as a unit bearing
3) The housing is mainly casting or pressed steel
4) The bearing units are compact in design with perfect sealing devices
5) They can align with ease during operation and can be conveniently mounted or

 dismounted



UC Series of pillow block bearing:

Insert bearing

Setscrew locking type: UC series; SB series;

Eccentric collar locking type: HC/NA series; SA series;

Adapter sleeve locking type:UKseries

Pillow block units: UCP series; UCPH series; UCPAseries UCT series, etc

Flange Units: UCF series, UCFL series, UCFC series etc.

Housing: P, T, FL, F, FC, FA, FB, HA, PH, PA, PP, PF, PFL, etc.



Besides, we can manufacture any non-standard and special bearings according to your drawings and samples.

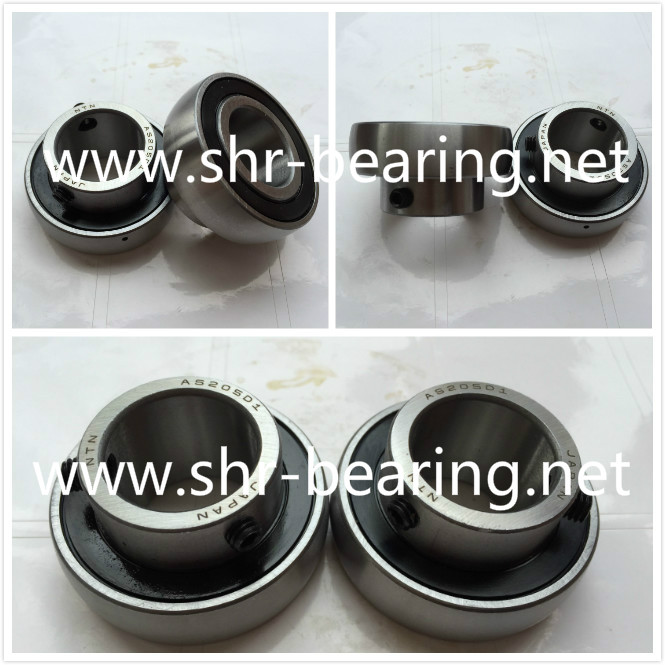

NTN NAS205D1 Insert Ball Bearing Photos:



NTN UC Series Pillow Block Bearings Inset ball bearings catalog:


Unit No.

Shaft

Dimensions(mm)

Basic dynamic Load ratings

(KN)

Basic static Load ratings

(KN)

d

(In.)

(mm)

D

Bi

Be

n

m

G

ds

(mm)

(in.UNF)

UCW201

UCW201-8



1/2

12



40

27.4

14

11.5

15.9

4.5

M5*0.8





1/4-28

7.36

4.79

UCW202

UCW202-9

UCW202-10



9/16

5/8

15





40

27.4

14

11.5

15.9

4.5

M5*0.8







1/4-28

1/4-28

7.36

4.79

UCW203

UCW203-11



11/16

17



40

27.4

14

11.5

15.9

4.5

M5*0.8





1/4-28

7.36

4.79

UC201

UC201-8



1/2

12



47

31

17

12.7

18.3

5

M6*1





1/4-28

9.88

6.65

UC202

UC202-9

UC202-10



9/16

5/8

15





47

31

17

12.7

18.3

5

M6*1





1/4-28

9.88

6.65

UC203

UC203-11



11/16

17



47

31

17

12.7

18.3

5

M6*1





1/4-28

9.88

6.65

UC204

UC204-12



3/4

20



47

31

17

12.7

18.3

5

M6*1





1/4-28

9.88

6.65

UC205

UC205-14

UC205-15

UC205-16



7/8

15/16

1

25







52

34.1

17

14.3

19.8

5

M6*1









1/4-28

1/4-28

1/4-28

7.36

10.78





4.79

9.93





UC206

UC206-17

UC206-18

UC206-19

UC206-20

1-11/16

1-1/8

1-3/16

1-1/4

30









62

38.1

19

15.9

22.2

5

M6*1











1/4-28

1/4-28

1/4-28

1/4-28

14.97

11.31

UC207

UC207-20

UC207-21

UC207-22

UC207-23



1-1/4

1-5/16

1-3/8

1-7/16

35









72

42.9

20

17.5

25.4

7

M8*1











5/16-24

5/16-24

5/16-24

5/16-24

19.75

15.30

UC208

UC208-24

UC208-25



1-1/2

1-9/16

40





80

49.2

21

19.0

30.2

8

M8*1

5/16-24

25.09

19.84

UC209

UC209-26

UC209-27

UC209-28



1-5/8

1-11/16

1-3/4

45







85

49.2

22

19.0

30.2

8

M8*1

5/16-24

25.14

20.46

UC210

UC210-30

UC210-31

UC210-32



1-7/8

1-15/16

2

50







90

51.6

24

19.0

32.6

10

M10*1.25

3/8-24

26.98

23.18

UC211

UC211-32

UC211-34

UC211-35



2

2-1/8

2-3/16

55







100

55.6

25

22.2

33.4

10

M10*1.25

3/8-24

33.37

29.22

UC212

UC212-36

UC212-38

UC212-39



2-1/4

2-3/8

2-7/6

60







110

65.1

27

25.4

39.7

10

M10*1.25

3/8-24

36.74

32.93

UC213

UC213-39

UC213-40



2-7/16

2-1/2

65





120

65.1

29

25.4

39.7

10

M10*1.25

3/8-24

44.01

40

UC214

UC214-43

UC214-44



2-11/16

2-3/4

70





125

74.6

30

30.2

44.4

12

M12*1.25

7/16-20

46.79

45.03

UC215

UC215-47

UC215-48



2-15/16

3

75





130

77.8

30

33.3

44.5

12

M12*1.25

7/16-20

50.85

49.30

UC216



80

140

82.6

33

33.3

49.3

12

M12*1.25

7/16-20

55.04

53.31

UC217

UC217-52



3-1/4

85



150

85.7

35

34.1

51.6

12

M12*1.5

7/16-20

63.98

63.89

UC218

UC218-56



3-1/2

90



160

96

37

39.7

56.3

12

M12*1.5

1/2-20

73.83

70.76
