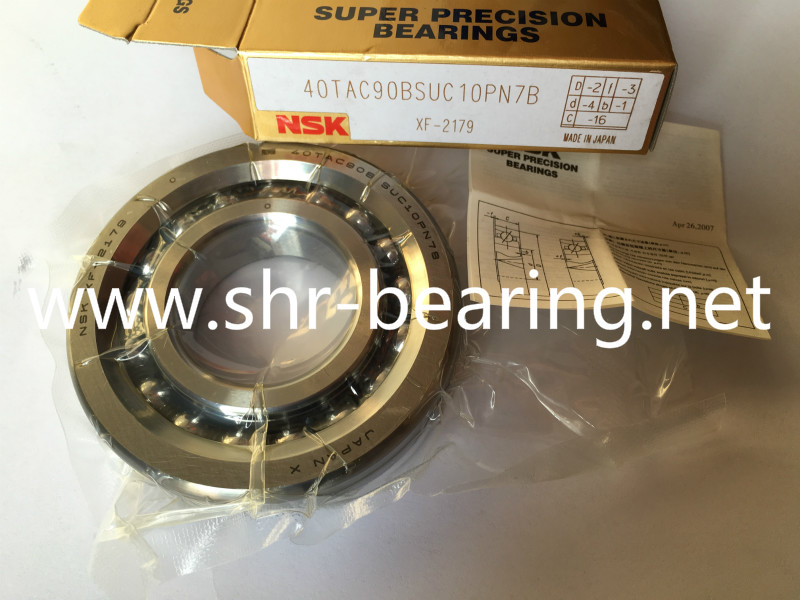

NSK 40TAC90BSUC10PN7B Precision Ball Bearings

> > >

NSK 40TAC90BSUC10PN7B Precision Ball Bearings

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
needle roller bearing
CARB toroidal roller bearings
thrust roller bearings
Deep groove ball bearings
Angular contact ball bearings
Thrust ball bearings
Self-aligning ball bearing
Y-bearing
Description
Technical
Application
Pictures

NSK Angular Contact Ball Baring Features:

The ball screw bearings, most of the contact angle of 60 degrees, can carry large axial loads, mainly used for various types of precision machine tools ball screw can also be used to speed is not high axial load of the grinding head motor.Its dimensional accuracy P5, p4 level, provides matching and universal pairing for customers to choose, can also provide a sealing structure of the ball screw bearings, including BS, BSA, 7602,7603 series bearings.



TAC B series:

The axial rigidity is high because of a large number of balls and a contact angle of 60°.compared with tapered roller bearings of cylindrial roller bearings, this type has lower starting torque; so smoother rotation is possible with less driving force.


TAC B series bearings incorporate NSK's recently developed molded polyamide resin cage. In additon using extra-pure steel for the inner and outer rings has further enhanced service life. our EP steel is manufactured by controlling the amount of harmful oxide inclusions , which eliminates large size inclusions and enjoys higher purity than vaccum arc remelted(var) steel.

The series with "DG" seal, low torque contact seal, with "WPH" grease, an waterproof grease, increase the reliability and provide for easy handling.



NSK 40TAC90BSUC10PN7B Super Precision Ball Bearing Details:

Product   Model

 Ball screw support bearing 40TAC90B

Brand

NSK OEM  ODM

Specification

Size 40*90*20mm

Material

Chrome steel GCr15/GCr15SiMn   Stainless steel 304 ,316 ,440C

Precision

P0(ABEC1), P6(ABEC3) ,P5(ABEC5,)P4(ABEC7), P2(ABEC9)

Clearance

C0 C2 C3 C4

Vibration & Noisy

Z1,Z2,Z3 V1,V2,V3

Cage

Brass,Nylon,Steel

Seal / Cover

ZZ  2RS  RZ  NR N

Application

Steel Industry, Mining&Construction, Paper making Machinery,vibrating screens,



shakers, conveyors,

Features:

high precision, high speed, long life, high reliability,  low noise



Hot-selling NSK Angular Contact Ball Bearings:

MODEL

DIMENSION/MM

MODEL

DIMENSION/MM

17TAC47B

17*47*15

30TAC20X+L

30*62*34

20TAC47B

20*47*15

40TAC20X+L

40*68*36

25TAC62B

25*62*15

45TAC20X+L

45*75*38

30TAC62B

30*62*15

50TAC20X+L

50*80*38

35TAC72B

35*72*15

55TAC20X+L

55*90*44

40TAC72B

40*72*15

60TAC20X+L

60*95*44

40TAC90B

40*90*20

65TAC20X+L

65*100*44

45TAC75B

45*75*15

70TAC20X+L

70*110*48

45TAC100B

45*100*20

75TAC20X+L

75*115*48

50TAC100B

50*100*20

80TAC20X+L

80*125*54

55TAC100B

55*100*20

85TAC20X+L

85*130*54

55TAC120B

55*120*20

90TAC20X+L

90*140*60

60TAC120B

60*120*20

95TAC20X+L

95*145*60

180TAC20D+L

180*280*120

100TAC29X+L

100*140*48

190TAC29D+L

190*260*84

100TAC20X+L

100*150*60

190TAC20D+L

190*290*120

105TAC29X+L

105*145*48

200TAC29D+L

200*280*96

105TAC20X+L

105*160*66

200TAC20D+L

200*310*132

110TAC29X+L

110*150*48

220TAC29D+L

220*300*96

110TAC20X+L

110*170*72

220TAC20D+L

220*340*144

120TAC29X+L

120*165*54

240TAC29D+L

240*320*96

120TAC20X+L

120*180*72

240TAC20D+L

240*360*144

130TAC29X+L

130*180*60

260TAC29D+L

260*360*120

130TAC20X+L

130*200*84

260TAC20D+L

260*400*164

140TAC29D+L

140*190*60

280TAC29D+L

280*380*120

140TAC20D+L

140*210*84

280TAC20D+L

280*420*164

150TAC29D+L

150*210*72

300TAC29D+L

300*420*144

150TAC20D+L

150*225*90

320TAC29D+L

320*440*144

160TAC29D+L

160*220*72

340TAC29D+L

340*480*144

160TAC20D+L

160*240*96

360TAC29D+L

360*480*144

170TAC29D+L

170*230*72

380TAC29D+L

380*520*164

170TAC20D+L

170*260*108

400TAC29D+L

400*540*164

180TAC29D+L

180*250*84





We can also offer angular contact bearings as follows:

  • 718 series:71803C(AC)/P4/P2-71840C(AC) /P4/P2
  • 719 series:71903C(AC) /P4/P2-71940C(AC) /P4/P2
  • 72 series:7003C(AC) /P4/P2-7040C(AC) /P4/P2
  • H72series:7203C(AC) /P4/P2-7240C(AC) /P4/P2
  • H70 series:7003C(AC) /P4/P2-7040C(AC) /P4/P2
  • B72 series:7203C(AC) /P4/P2-7240C(AC) /P4/P2
  • B70 series7003C(AC) /P4/P2-7040C(AC) /P4/P2
  • 7602 series:760203TN1/P4/P2-760220TN1/P4/P2
  • 7603 series:760303TN1/P4/P2-760320TN1/P4/P2
  • BS series:BS1747/P4/P2-BS100150/P4/P
NSK 40TAC90BSUC10PN7B Ball support screw precision bearing application :

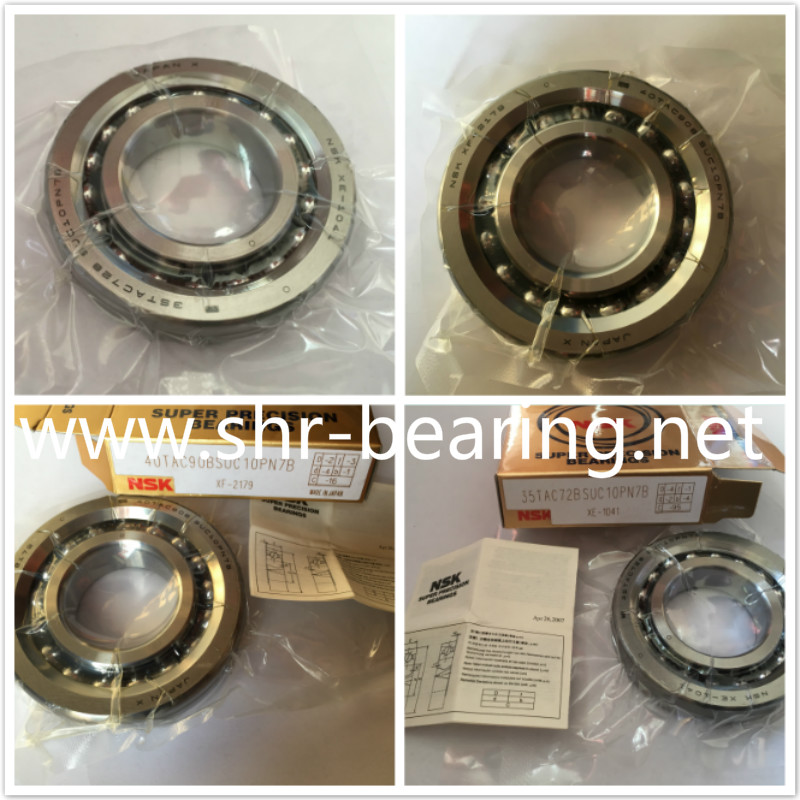

NSK 40TAC90BSUC10PN7B ball screw support bearing photos:
