KOYO Auto Wheel Hub Bearings DAC3870DW wanted-Choose Auto Wheel Ball Bearings Manufacturer

KOYO Auto Wheel Hub Bearings DAC3870DW

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

The Brief Description of DAC series bearings:

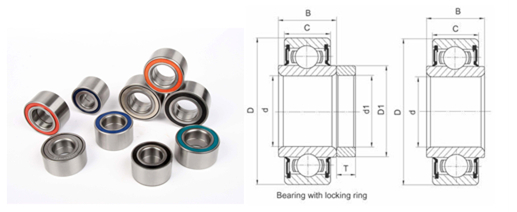

DAC wheel Hub Bearings are double row angular contact ball bearings. Each wheel hub bearing (wheel bearing) consists of one outer ring, two inner rings.The DAC type auto wheel bearing is a double row angular contact ball bearing incorporating an integral outer ring and two separable inner rings; which is available either with seals or without seals.

Wheel bearings (hub bearing) main role is to load and for the rotation of the hub to provide accurate guidance, both axial load radial load again, is a very important component. Traditional automotive wheel bearing is composed of two tapered roller bearings or ball bearings combination, bearing installation, oiled, and adjust the clearance seals are conducted in automotive production line.

DAC series bearings Hub Bearing DAC3870DW details:

Name	Value
Structure	wheel bearing puller
Model Number	DAC3870DW
Dimension	38X70X38mm
Inner / outer ring	Chrome steel/Gcr15
Cage	Chrome steel/Gcr15
Ball	Chrome steel/Gcr15
Mass	0.571kg
Precision Rating	P0 P5 P6
Certification	BV & ISO9001:2008

Bearing No.				Dimensions(mm)				Weight
Model		Japan	Germany	d	D	B	C	kg
DAC255200206			617546A	25	52	20.6	20.6	0.19
DAC25520037	546467		445539AA	25	52	37	37	0.31
DAC27600050		513071(BCA)	IR8653(IRB)	27	60	50	50	0.56
DAC285842		DAC2858W	28BW03A	28	58	42	42	0.47
DAC28610042		DAC286142AW		28	61	42	42	0.56
DAC30600037		DAC3060372RS		30	60	37	37	0.42
DAC30600337	529891AB	DAC3060W	BA2B 633313C	30	60.03	37	37	0.45
DAC30600337	545312	DAC3060W	418780	30	60.03	37	37	0.45
DAC30640042		DAC3064W2RKBCS28	34BWD03ACA78	30	64	42	42	0.49
DAC30630342		DAC3063W-1		30	63.03	42	42	0.54
DAC30650021	522372		BB1B 630374/C4	30	65	21	21	0.27
DAC30650021	543909		614593	30	65	21	21	0.27
DAC34620037	531910		309724	34	62	37	37	0.41
DAC34620037	561447		BAHB 311316B	34	62	37	37	0.41
DAC34640034		DAC3464D		34	64	34	34	0.43
DAC34640037	532066DE	DAC3464G1	309726DA	34	64	37	37	0.48
DAC34640037	540466B	DAC3464G1	309726DA	34	64	37	37	0.48
DAC34660037	580400CA		559529	34	66	37	37	0.5
DAC34660037	580400CA		636114A	34	66	37	37	0.5
DAC34680037		DAC3468DW		34	68	37	37	0.55
DAC34680042		DAC34682RS		34	68	42	42	0.64
DAC35640037		DAC3564A-1		35	64	37	37	0.41
DAC35650035	546238A	DAC3565WCS30	BT2B 445620B	35	65	35	35	0.4
DAC35650035	546238A	DAC3565WCS30	443952	35	65	35	35	0.4
DAC35660032			445980A	35	66	32	32	0.42
DAC35660033			BAHB 633676	35	66	33	33	0.43
DAC36720434				36	72.04	34	34	0.58
DAC37720437	633028	562398		37	72.04	37	37	0.59
DAC37720037	633541B	562398A		37	72	37	37	0.59
DAC37740045	309946AC			37	74	45	45
DAC38710039	510062		30BWD22	38	71	39	39	0.62
DAC38720236/33			DAC3872W-3	38	72.02	36	33	0.56
DAC39680037	311315DB 309692	540733 528810		39	68	37	37	0.48

Our Auto Wheel DAC series Hub Bearing DAC3870DW Application :

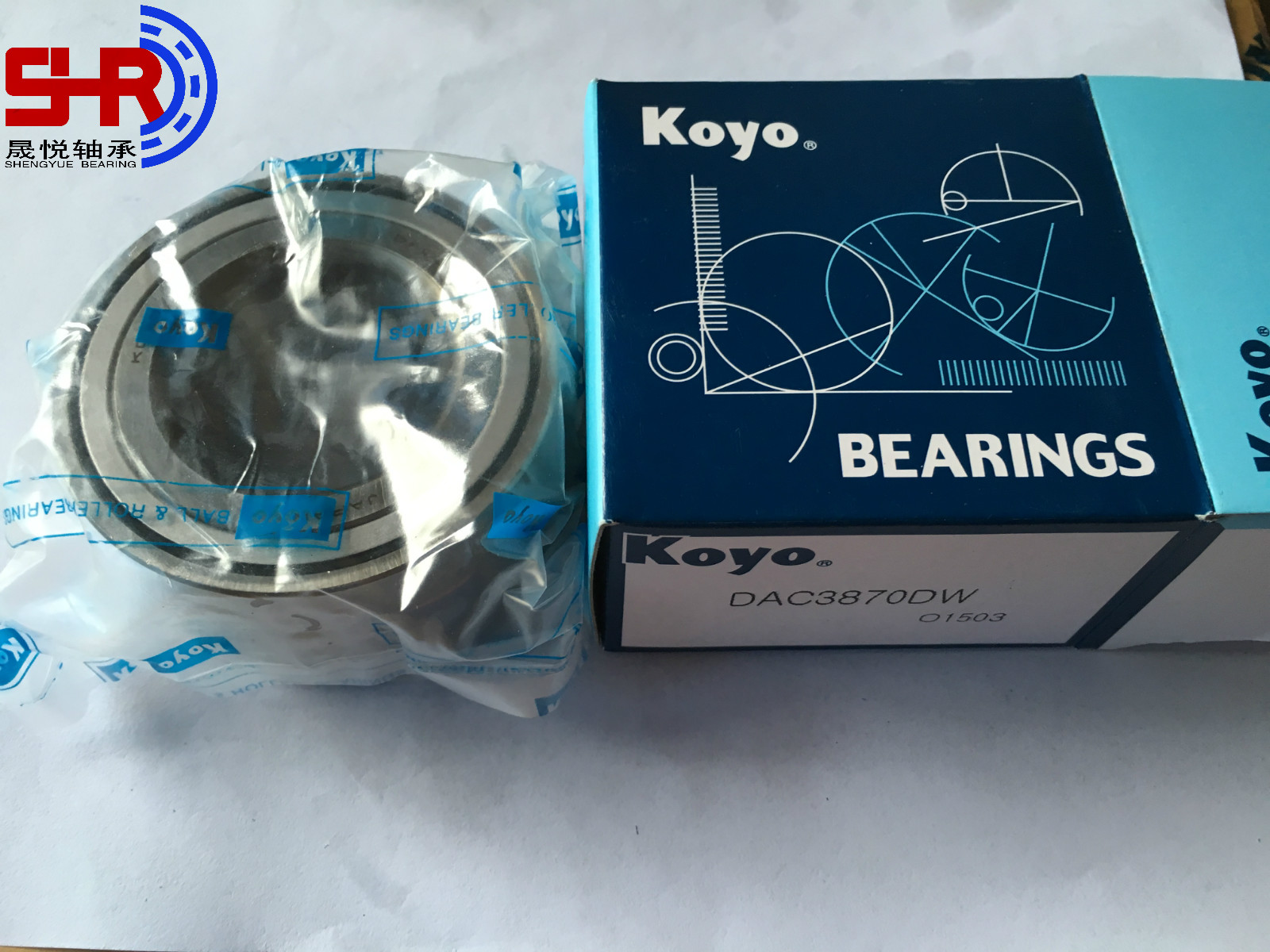

DAC Hub Bearing DAC3870DW DAC series Pictures:

KOYO DAC series other model number bearings pictures:
