IKO CF20UU Track Follower Roller Bearings

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

The Brief Description of IKO Cam Follower Roller Bearings:

A cam follower roller bearing (also called “track follower”) is a specialty roller bearing designed to follow tracks or cams and in a wide range of linear motion systems. Cam followers are often used on conveyors, process transfer lines, such as those used int industries such as food and beverage, plastics, glass and among others. KR cam followers are also popular for defense and aircraft applications, where maintainability and system reliability are important design considerations. To smoothly and evenly distribute the loads, cam followers usually are designed with a full complement of rolling elements. However, there is more than one type of configuration for cam followers, but the most distinctive characteristic is how the cam follower is mounted to its counterpart.

IKO Cam Follower Roller Bearing CF20UU Details:

P/N	CF20UU Bearing
Brand	OEM
Weight	0.460kg
Precision	ABEC-1
Type	Cam Followers
Lubrication	Grease
Material	Chrome Steel
Package	Plastic Bag and Box

Needle roller bearings series:

· Needle Roller Bearing (Series NK,NKS, RNA49, RNA48, NKI, NKIS, NA49, NA48, RNA69, NA69, RNA49..RS, RNA49..2RS, NA49..RS, NA49..2RS, RNAO, NAO, IR, LR, RNAV, NAV, RPNA, PNA etc.)

· Stud Type Track Roller (Series KR, KRE, KR..PP, KRE..PP, KRV, KRVE, KRV..PP, KRVE..PP, NUKR, NUKRE etc.)

· Yoke Type Track Roller Bearing (Series RSTO, RSTO..X, STO, STO..X, RNA22..2RS, RNA22..2RSX, NA22..2RS, NA22..2RSX, NATR, NATV, NUTR, NUTR..X etc.)

· Axial Bearing (Series AXK, AXW, K811, K812, K893, K874, K894, K/KS, KK/KKS, KZK, KBK, KNL etc.)

· Drawn Cup Needle Roller Bearing (Series HK SCE SCH, BK BCE BCH, HK..RS, HK..2RS, BK..RS etc.)

P/N	CF20UU Bearing
Brand	OEM
Weight	0.460kg
Precision	ABEC-1
Type	Cam Followers
Lubrication	Grease
Material	Chrome Steel
Package	Plastic Bag and Box

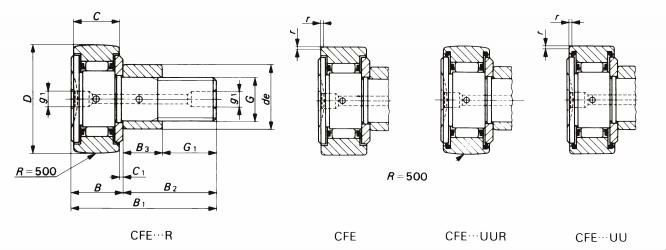

IKO Different Types of Cam Follower Roller Bearing Structures:

Bearing No.	Boundary dimensions(mm)									Basic load ratings(N)		Limiting speeds(rpm)
Bearing No.	d	D	C	B1	B2	B3	G1	S	H	Cr	Cor	Greas
CF6	6	16	11	12		28	9	1	3	270	170	25000
CF8	8	19	11	12		32	11	1.25	4	300	210	20000
CF10	10	22	12	13		36	13	1.25	4	410	320	17000
CF10-1	10	26	12	13		36	13	1.25	4	410	320	17000
CF12	12	30	14	15	6	40	14	1.5	6	590	450	14000
CF12-1	12	32	14	15	6	40	14	1.5	6	590	450	14000
CF16	16	35	18	19.5	8	52	18	1.5	6	850	760	10000
CF18	18	40	20	21.5	10	58	20	1.5	8	1180	1220	8500
CF20	20	52	24	25.5	12	66	22	1.5	8	1630	1690	7000
CF20-1	20	47	24	25.5	12	66	22	1.5	8	1630	1690	7000
CF24	24	62	29	30.5	12	80	25	1.5	8	2160	2210	6500
CF24-1	24	72	29	30.5	12	80	25	1.5	8	2160	2210	6500
CF30	30	80	35	37	15	100	32	1.5	8	2160	2210	6500
CF30-1	30	85	35	37	15	100	32	1.5	8	2830	3700	5000
CF30-2	30	90	35	37	15	100	32	1.5	8	2830	3700	5000

Application:

Agricultural machinery industry, construction industry, hydro and wind engineering industry, construction machinery industry, machine tools and manufacturing machinery industry, material handling and packaging industry, port engineering industry, electric tools industry, transmission industry, the semiconductor industry, pump and fan industry, industrial robotics and automation industry, rubber, plastic and chemical industry, textile industry, tractor industry, woodworking machinery industry .

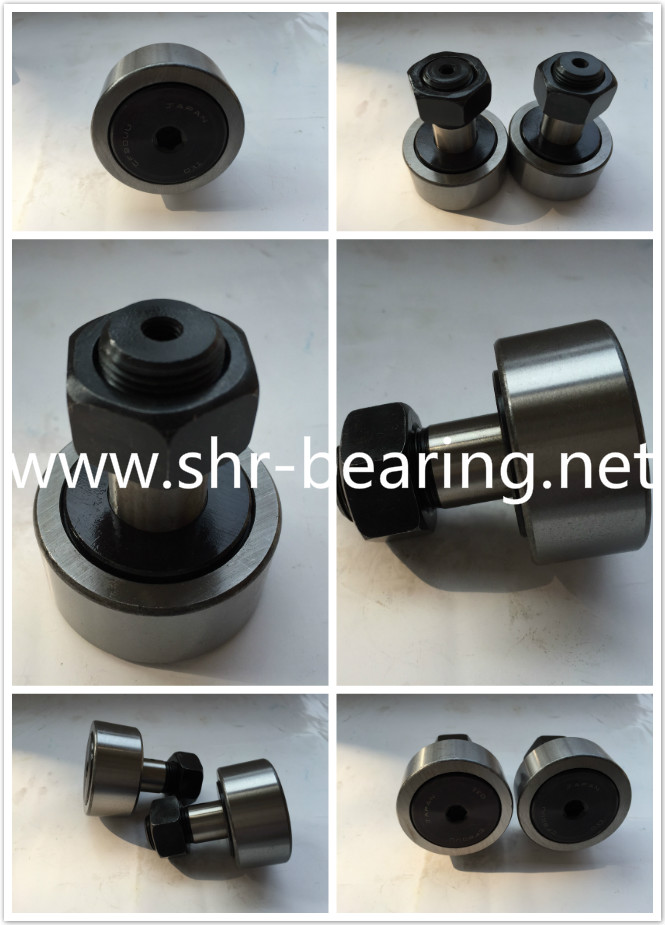

IKO Track Follower Roller Bearings Pictures:
