SYBR BS2-2310-2CS/VT143 Double Row sealed Spherical roller bearing

Sealed Spherical roller bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages. The inner rings have cylindrical or tapered bores.The symmetrical barrel rollers orient themselves freely on the concave outer ring raceway. As a result, shaft flexing and misalignment of the bearing seats are compensated

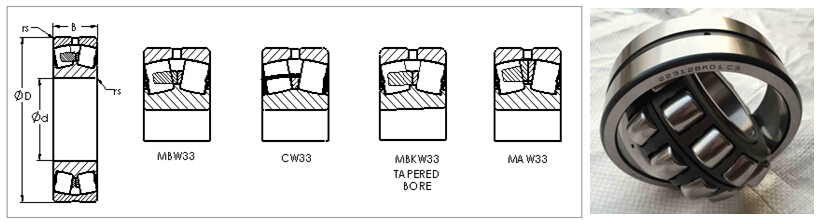

Spherical roller bearing .jpg


Double row Sealed spherical roller bearing BS2-2310-2CS/VT143  FEATURES :

  • Special “outward-extending, spring loaded lip seal”.
  • Nitride rubber seal – or differing seals depending on temperature needs.
  • Special long-life grease: heat & pressure resistant
  • Symmetrical roller & raceway design to prevent edge loading problems.
  • Special chamfer configuration for smooth axial movement.
  • Available in sealed-clean or grease replenishing types, with shields

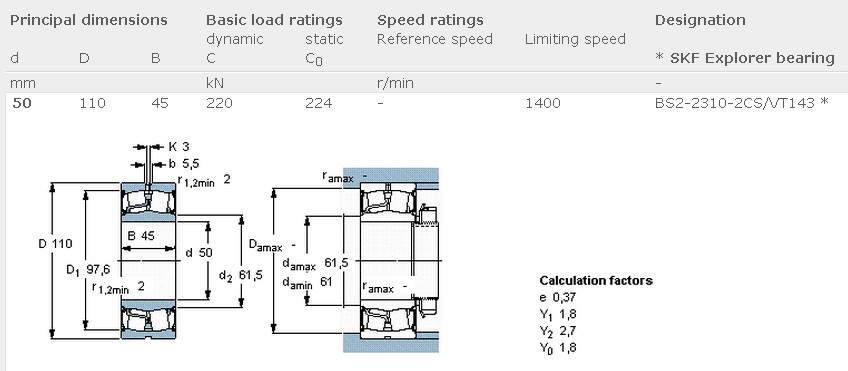

BS2-2310 bearing.jpg

SYBR BS2-2310-2CS/VT143 Double Row sealed Spherical roller bearing models series :


Spherical Roller Bearings dimensional series are:

  • 21300 Series - ISO Dimension Series 13 Spherical Roller Bearings
  • 22200 Series - ISO Dimension Series 22 Spherical Roller Bearings
  • 22300 Series - ISO Dimension Series 23 Spherical Roller Bearings
  • 23000 Series - ISO Dimension Series 30 Spherical Roller Bearings
  • 23100 Series - ISO Dimension Series 31 Spherical Roller Bearings
  • 23200 Series - ISO Dimension Series 32 Spherical Roller Bearings
  • 232 /  Series - Extra Large ISO 32 Series Spherical Roller Bearing
  • 23900 Series - ISO Dimension Series 39 Spherical Roller Bearings
  • 24000 Series - ISO Dimension Series 40 Spherical Roller Bearings
  • 24100 Series - ISO Dimension Series 41 Spherical Roller Bearings
  • 29000 Series - ISO Dimension Series 90 Spherical Thrust Roller Bearings

d D B  Weight/KG      Model
40 80 28 0,57 BS2-2208-2CS/VT143 *
40 90 38 1,2 BS2-2308-2CS/VT143 *
45 85 28 0,66 BS2-2209-2CS/VT143 *
45 100 42 1,6 BS2-2309-2CS/VT143 *
50 90 28 0,7 BS2-2210-2CS/VT143 *
50 110 45 2,1 BS2-2310-2CS/VT143 *
55 100 31 1 BS2-2211-2CS/VT143 *
55 120 49 2,8 BS2-2311-2CS/VT143 *
60 110 34 1,3 BS2-2212-2CS/VT143 *
60 130 53 3,4 BS2-2312-2CS/VT143 *
65 100 35 0,95 24013-2CS5W/VT143 *
65 120 38 1,6 BS2-2213-2CS/VT143 *
65 140 53 4,15 BS2-2313-2CS/VT143 *
70 125 38 1,8 BS2-2214-2CS/VT143 *
70 150 60 5,1 BS2-2314-2CS/VT143 *
75 130 38 2,1 BS2-2215-2CS/VT143 *

SYBR BS2-2310-2CS/VT143 Double Row sealed Spherical roller bearing applications

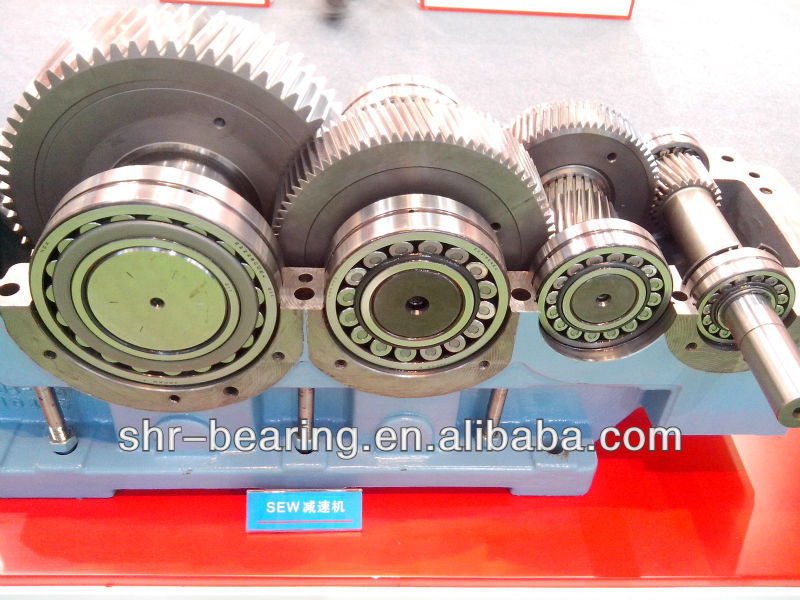

BS2-2310-2CS/VT143 sealed spherical roller bearings are widely used in Papermaking machinery, railway vehicle axle, rolling mill, roller gearbox,crusher,vibrating screen, printing machinery,woodworking machinery,industrial reducer,mine.and are popular size that could be used in many applications.

SYBR BS2-2310-2CS/VT143 Double Row sealed Spherical roller bearing photos :

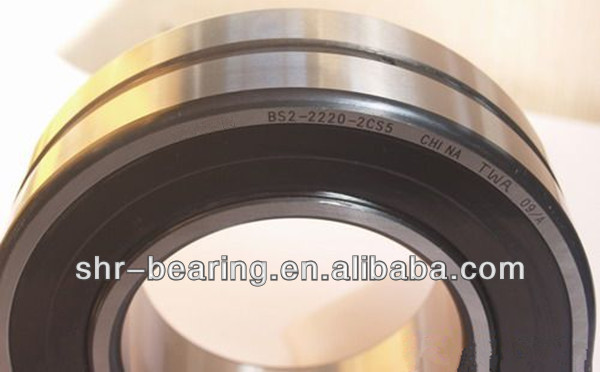

sealed Spherical roller bearing (7).jpg

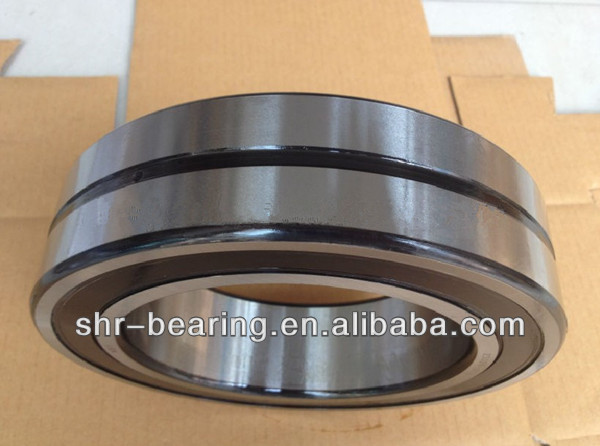

sealed Spherical roller bearing (8).jpg
