SYBR 6212 motor Z2V2 Low noise Industrial metric ball bearings
Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
Description
Technical
Application
Pictures
SYBR 6212 motor Z2V2 Low noise Industrial metric ball bearings
Metric ball bearings are machined components that include an outer ring, inner ring, balls, retainers, shields and snap rings. miniature ball bearings are available in inch and metric sizes, open or shielded and flanged or unflanged. For extreme noise sensitive applications, superior hardness and corrosion resistance our ball bearings are manufactured with DD400™ stainless steel material. Single-row deep groove NSK ball bearings are the most common type of rolling bearings. Their use is very widespread.
In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides and are prelubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common.
Deep groove ball bearing types :
Structure Assortment
Open type deep groove ball bearings
Shield type deep groove ball bearings
Sealed type deep groove ball bearings
Material Assortment
Chrome steel ball bearings
Carbon steel ball bearings
Stainless steel ball bearings
Ceramic ball bearings Hybrid ball bearings
Bearing Item No. Assortment
60 series ball bearings
62 series ball bearings
63 series ball bearings
67 series ball bearings
68 series ball bearings
69 series ball bearings
16 series ball bearings
R inch series ball bearings
Miniature ball bearings
Usage assortment
EMQ ball bearing
R/C ball bearing
Motorcycle bearing
Conveyor ball bearing
Bicycle bearing
Skateboard bearing
Wheelchair bearing
Fishing gear bearing
Air conditioning bearings
| Attributes | Values |
| Bearing Type | Open |
| Bore Dia (d) | 60.0000 |
| Outer Dia (D) | 110.0000 |
| Width (B) | 22.0000 |
| Radius (min) (rs) | 1.500 |
| Dynamic Load Rating (Cr) | 52,400 |
| Static Load Rating (Cor) | 36,200 |
| Max Speed (Grease) (X1000 RPM) | 6 |
| Max Speed (Oil) (X1000 RPM) | 7 |
| Max. Shaft Shoulder Dia. Inner (Li) | 74.5 |
| Min. Housing Shoulder Dia., Outer (Lo) | 102.0 |
| Ball Qty | 10 |
| Ball Dia (Dw) | 15.8750 |
| Weight (g) | 762.00 |
| Precision | A1 |
| Standard Clearance | C0 |
| Material | 52100 Chrome steel (or equivalent) |
SYBR 6212 motor Z2V2 Low noise Industrial metric ball bearings models series :
As flexible as the performance is, the configurations of single row ball bearnigs is also as versatile. These bearings often have steel shields or rubber seals installed on one or both sides and are pre-lubricated with grease. Also, snap rings are sometimes used on the outside edge. While many different retainers are available, pressed steel cages are most commonly used. Even tapered bores are available upon special order.
Single row deep groove ball bearings come in three numerical series representing the size and load capacity of each. They are:
6000 Series - Extra Light Ball Bearings – Ideal for limited space applications
6200 Series - Light Series Ball Bearings – Balanced between space and load capacity
6300 Series - Medium Series Ball Bearings – Ideal for heavier load capacity applications
| Bearing models | Seal type | d | D | B |
| 6011-2RS | Sealed | 55.0000 | 90.0000 | 18.0000 |
| 6011ZZ | Shielded | 55.0000 | 90.0000 | 18.0000 |
| 6211 | Open | 55.0000 | 100.0000 | 21.0000 |
| 6211-2RS | Sealed | 55.0000 | 100.0000 | 21.0000 |
| 6211ZZ | Shielded | 55.0000 | 100.0000 | 21.0000 |
| 6311 | Open | 55.0000 | 120.0000 | 29.0000 |
| 6311-2RS | Sealed | 55.0000 | 120.0000 | 29.0000 |
| 6311ZZ | Shielded | 55.0000 | 120.0000 | 29.0000 |
| 6012 | Open | 60.0000 | 95.0000 | 18.0000 |
| 6012-2RS | Sealed | 60.0000 | 95.0000 | 18.0000 |
| 6012ZZ | Shielded | 60.0000 | 95.0000 | 18.0000 |
| 6212 | Open | 60.0000 | 110.0000 | 22.0000 |
| 6212-2RS | Sealed | 60.0000 | 110.0000 | 22.0000 |
| 6212ZZ | Shielded | 60.0000 | 110.0000 | 22.0000 |
| 6312 | Open | 60.0000 | 130.0000 | 31.0000 |
| 6312-2RS | Sealed | 60.0000 | 130.0000 | 31.0000 |
| 6312ZZ | Shielded | 60.0000 | 130.0000 | 31.0000 |
| 6013 | Open | 65.0000 | 100.0000 | 18.0000 |
| 6013-2RS | Sealed | 65.0000 | 100.0000 | 18.0000 |
| 6013ZZ | Shielded | 65.0000 | 100.0000 | 18.0000 |
| 6213 | Open | 65.0000 | 120.0000 | 23.0000 |
| 6213-2RS | Sealed | 65.0000 | 120.0000 | 23.0000 |
| 6213ZZ | Shielded | 65.0000 | 120.0000 | 23.0000 |
| 6313 | Open | 65.0000 | 140.0000 | 33.0000 |
| 6313-2RS | Sealed | 65.0000 | 140.0000 | 33.0000 |
SYBR 6212 motor Z2V2 Low noise Industrial metric ball bearings applications :
Original Package:
Original Package:
1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2):Small sizes:Plastic Tube + Carton
3):Big sizes:Wooden Case

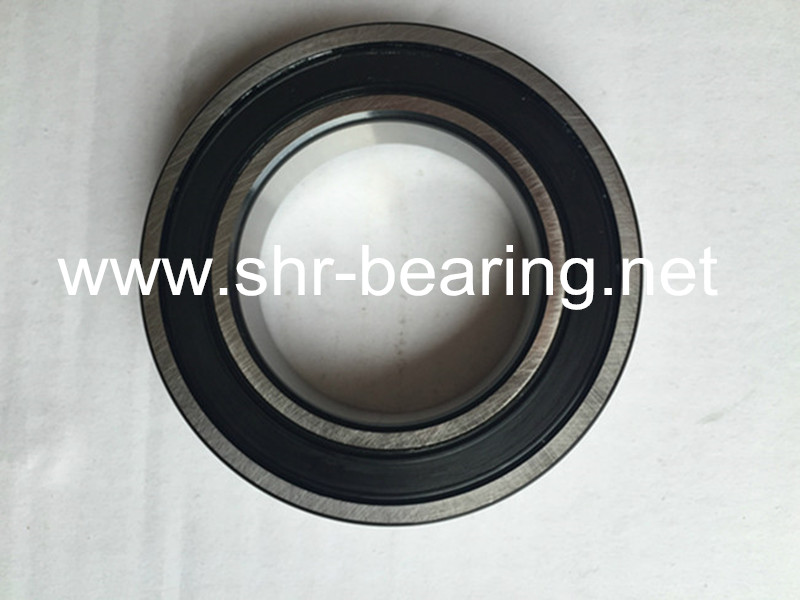

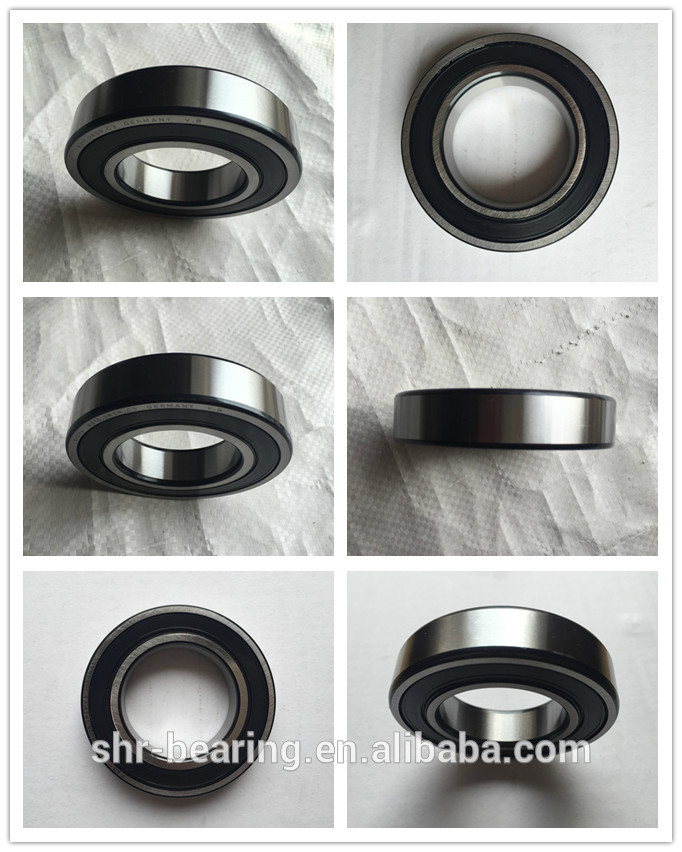

SYBR 6212 motor Z2V2 Low noise Industrial metric ball bearings photos reference :
