SYBR 6207-2Z 207-2Z plain elastomeric bearings sealed ball bearings

Features:

  • Cages - The standard cage is a two-piece steel ribbon type. Most sizes are available with a two-piece riveted phenolic, aluminium-reinforced type. Some sizes are available with a one-piece filled nylon snap-in type. Other options may be available.
  • Closures - Most bearings are available in shielded and sealed versions.
  • Lubricant - Lubrication can be specified by the customer or recommended by Barden, based on the torque, speed and temperature conditions of the application.
  • Loads - Deep groove ball bearings can accept radial loads, thrust loads in either diretion, or combinations of loads.
  • Duplexing - They can be supplied in matched pairs for duplex DB, DF or DT mounting.

         Single-row deep-groove ball bearings are suitable for use at both low and high speeds. They absorb radial and axial forces. They cannot be dismantled. (Electric motors, fans, encoders, flowmeters, etc.)

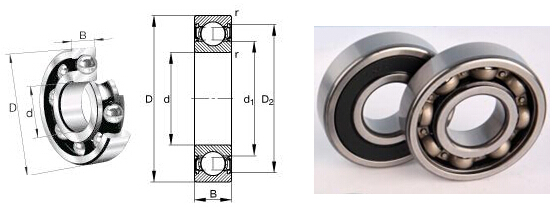

                                                  bearing 180306.jpg




d 35
D 72
B 17
r (mm) 1.1
Cr (KN) 25.7
Cor (KN) 15.4
Limiting Speed (Z,ZZ,RU,2RU) 9200
Limiting Speed (RD,2RD) 8300
Limiting Speed (RS,2RS) 6000
Limiting Speed Oil 11000
Bearing Code 6207 ZZ
da (min) 41.5
da (Max) 43.5
Da (Max) 65.5
ra (Max) 1
Mass (KG) 0.288

SYBR 6207-2Z 207-2Z plain elastomeric bearings sealed ball bearings models series

Single row deep groove ball bearings come in three numerical series representing the size and load capacity of each. They are:
6000 Series - Extra Light Ball Bearings – Ideal for limited space applications
6200 Series - Light Series Ball Bearings – Balanced between space and load capacity
6300 Series - Medium Series Ball Bearings – Ideal for heavier load capacity applications

6205ZZ Shielded 25.0000 52.0000 15.0000 1.000 14000 7850
6305 Open 25.0000 62.0000 17.0000 1.100 20600 11300
6305-2RS Sealed 25.0000 62.0000 17.0000 1.100 20600 11300
6305ZZ Shielded 25.0000 62.0000 17.0000 1.100 20600 11300
6006 Open 30.0000 55.0000 13.0000 1.000 13200 8250
6006-2RS Sealed 30.0000 55.0000 13.0000 1.000 13200 8250
6006ZZ Shielded 30.0000 55.0000 13.0000 1.000 13200 8250
6206 Open 30.0000 62.0000 16.0000 1.000 19500 11300
6206-2RS Sealed 30.0000 62.0000 16.0000 1.000 19500 11300
6206ZZ Shielded 30.0000 62.0000 16.0000 1.000 19500 11300
6306 Open 30.0000 72.0000 19.0000 1.100 26700 15000
6306-2RS Sealed 30.0000 72.0000 19.0000 1.100 26700 15000
6306ZZ Shielded 30.0000 72.0000 19.0000 1.100 26700 15000
6007 Open 35.0000 62.0000 14.0000 1.000 15900 10300
6007-2RS Sealed 35.0000 62.0000 14.0000 1.000 15900 10300
6007ZZ Shielded 35.0000 62.0000 14.0000 1.000 15900 10300
6207 Open 35.0000 72.0000 17.0000 1.100 25700 15400
6207-2RS Sealed 35.0000 72.0000 17.0000 1.100 25700 15400
6207ZZ Shielded 35.0000 72.0000 17.0000 1.100 25700 15400
6307 Open 35.0000 80.0000 21.0000 1.500 33400 19300
6307-2RS Sealed 35.0000 80.0000 21.0000 1.500 33400 19300
6307ZZ Shielded 35.0000 80.0000 21.0000 1.500 33400 19300
6008 Open 40.0000 68.0000 15.0000 1.000 16700 11500
6008-2RS Sealed 40.0000 68.0000 15.0000 1.000 16700 11500
6008ZZ Shielded 40.0000 68.0000 15.0000 1.000 16700 11500


SYBR 6207-2Z 207-2Z plain elastomeric bearings sealed ball bearings applications :

application

Original Package:
    1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);
    2):Small sizes:Plastic Tube + Carton
    3):Big sizes:Wooden Case

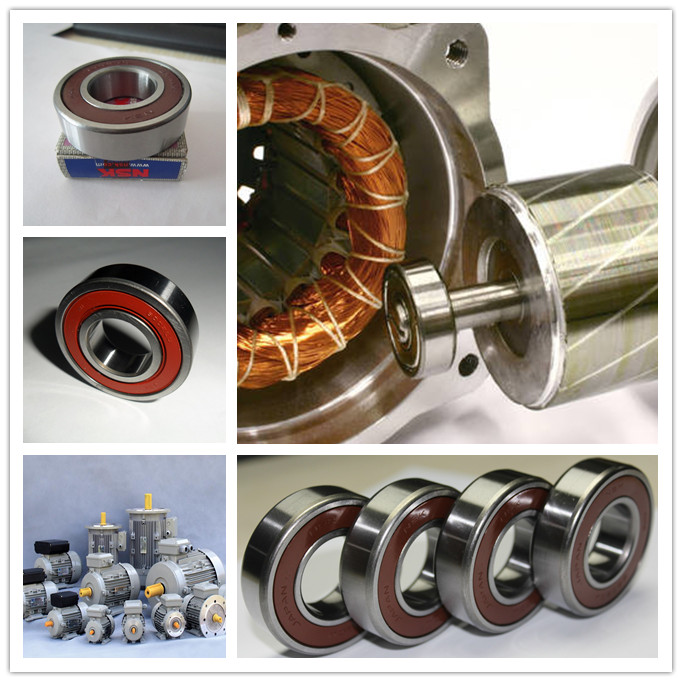

SYBR 6207-2Z 207-2Z plain elastomeric bearings sealed ball bearings photos :
