SYBR 6203-2Z 203-2Z deep groove ball bearings motor ball bearing

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

SYBR 6203-2Z 203-2Z deep groove ball bearings motor ball bearing

Sealed ball bearing are machined components that include an outer ring, inner ring, balls, retainers, shields and snap rings. miniature ball bearings are available in inch and metric sizes, open or shielded and flanged or unflanged. For extreme noise sensitive applications, superior hardness and corrosion resistance our ball bearings are manufactured with DD400™ stainless steel material. Single-row deep groove NSK ball bearings are the most common type of rolling bearings. Their use is very widespread.
In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides and are prelubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common.

Features:

Cages - The standard cage is a two-piece steel ribbon type. Most sizes are available with a two-piece riveted phenolic, aluminium-reinforced type. Some sizes are available with a one-piece filled nylon snap-in type. Other options may be available.
Closures - Most bearings are available in shielded and sealed versions.
Lubricant - Lubrication can be specified by the customer or recommended by Barden, based on the torque, speed and temperature conditions of the application.
Loads - Deep groove ball bearings can accept radial loads, thrust loads in either diretion, or combinations of loads.
Duplexing - They can be supplied in matched pairs for duplex DB, DF or DT mounting

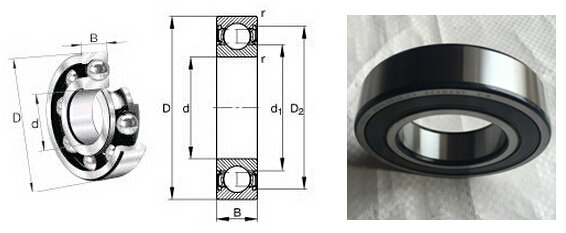

d	17
D	40
B	12
r (mm)	0.6
Cr (KN)	9.55
Cor (KN)	4.8
Limiting Speed (Z,ZZ,RU,2RU)	17000
Limiting Speed (RD,2RD)	15000
Limiting Speed (RS,2RS)	12000
Limiting Speed Oil	21000
Bearing Code	6203 ZZ
da (min)	21
da (Max)	22
Da (Max)	36
ra (Max)	0.6
Mass (KG)	0.065

SYBR 6203-2Z 203-2Z deep groove ball bearings motor ball bearing models series

Single row deep groove ball bearings come in three numerical series representing the size and load capacity of each. They are:

6000 Series - Extra Light Ball Bearings – Ideal for limited space applications

6200 Series - Light Series Ball Bearings – Balanced between space and load capacity

6300 Series - Medium Series Ball Bearings – Ideal for heavier load capacity applications

6205ZZ	Shielded	25.0000	52.0000	15.0000
6305	Open	25.0000	62.0000	17.0000
6305-2RS	Sealed	25.0000	62.0000	17.0000
6305ZZ	Shielded	25.0000	62.0000	17.0000
6006	Open	30.0000	55.0000	13.0000
6006-2RS	Sealed	30.0000	55.0000	13.0000
6006ZZ	Shielded	30.0000	55.0000	13.0000
6206	Open	30.0000	62.0000	16.0000
6206-2RS	Sealed	30.0000	62.0000	16.0000
6206ZZ	Shielded	30.0000	62.0000	16.0000
6306	Open	30.0000	72.0000	19.0000
6306-2RS	Sealed	30.0000	72.0000	19.0000
6306ZZ	Shielded	30.0000	72.0000	19.0000
6007	Open	35.0000	62.0000	14.0000
6007-2RS	Sealed	35.0000	62.0000	14.0000
6007ZZ	Shielded	35.0000	62.0000	14.0000
6207	Open	35.0000	72.0000	17.0000
6207-2RS	Sealed	35.0000	72.0000	17.0000
6207ZZ	Shielded	35.0000	72.0000	17.0000
6307	Open	35.0000	80.0000	21.0000
6307-2RS	Sealed	35.0000	80.0000	21.0000
6307ZZ	Shielded	35.0000	80.0000	21.0000
6008	Open	40.0000	68.0000	15.0000
6008-2RS	Sealed	40.0000	68.0000	15.0000
6008ZZ	Shielded	40.0000	68.0000	15.0000

SYBR 6203-2Z 203-2Z deep groove ball bearings motor ball bearing application

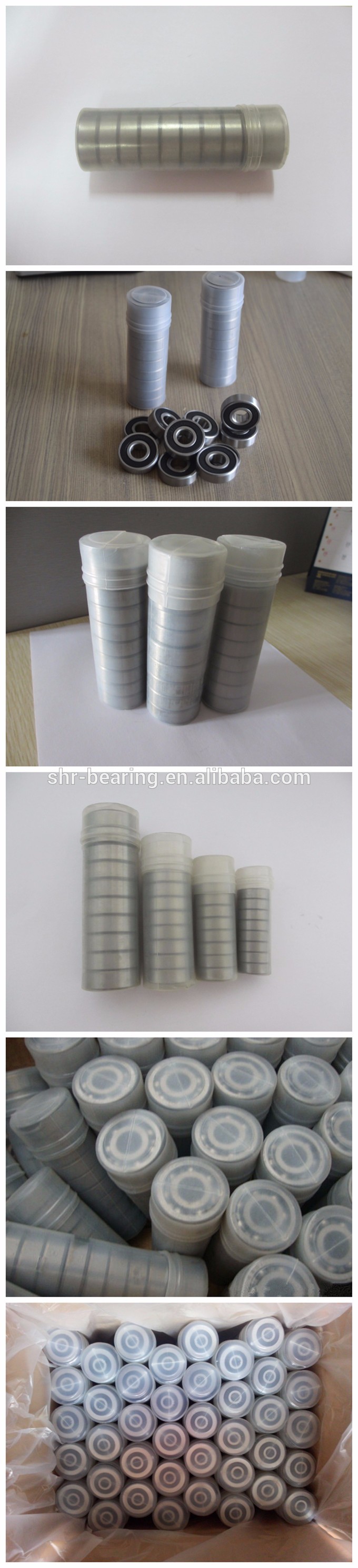

Original Package:

1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);

2):Small sizes:Plastic Tube + Carton

3):Big sizes:Wooden Case

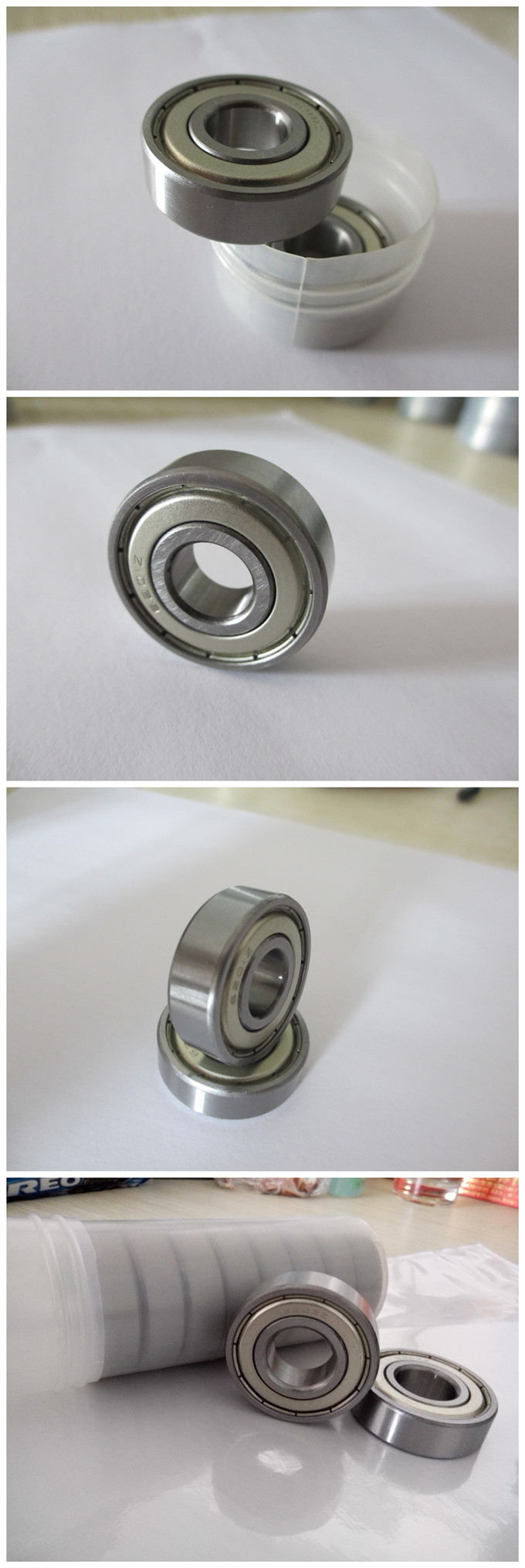

SYBR 6203-2Z 203-2Z deep groove ball bearings motor ball bearing photos :
