SYBR 608ZZ deep groove ball bearing skateboard ball bearings

> > >

SYBR 608ZZ deep groove ball bearing skateboard ball bearings

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
needle roller bearing
CARB toroidal roller bearings
thrust roller bearings
Deep groove ball bearings
Angular contact ball bearings
Thrust ball bearings
Self-aligning ball bearing
Y-bearing
Description
Technical
Application
Pictures
SYBR 608ZZ deep groove ball bearing skateboard ball bearings

Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings,inner rings and ball and cage assemblies. These products are of simple design, durable in operation and easy to maintain; they are available in single and double row designs and in open and sealed variants. Due to the production technology used, open bearings can still have turned recesses on the outer ring for seals or shields.

The shaft extension end: 2 e - 6201 - C3, 2 e - 6202 - C3, 2 e - 6204 - C3, 2 e - 6205 - C3, 2 e - 6206 - C3, 2 e - 6308 - C3, 6311 - C3, 6312 - C3, 6313 - C3, 6314 - C3, 6314 - C3, 6319 - C3, NU319, NU322
Fan end: 6201-2 - C3 e, 2 e - 6202 - C3, 2 e - 6204 - C3, 2 e - 6205 - C3, 2 e - 6206 - C3, 2 e - 6308 - C3, 2 e - 6309 - C3, 6311 - C3, 6312 - C3, 6313 - C3, 6314 - C3, 6314 - C3, 6319 - C3, 6322 - C3

YSJ series compressor bearing motor models:
The shaft extension end: 2 e - 6204 - C3, 2 e - 6205 - C3, 2 e - 6206 - C3, 2 e - 6308 - C3, 2 e - 6309 - C3, 6311 - C3, 6312 - C3, 6313 - C3, 6314 - C3, 6314 - C3, 6319, 6319 - C3, 6319
Fan end: 6204-2 - C3 e, 2 e - 6205 - C3, 2 e - 6206 - C3, 2 e - 6308 - C3, 2 e - 6309 - C3, 6311 - C3, 6312 - C3, 6313 - C3, 6314 - C3, 6314 - C3, 6319 - C3, 6322 - C3

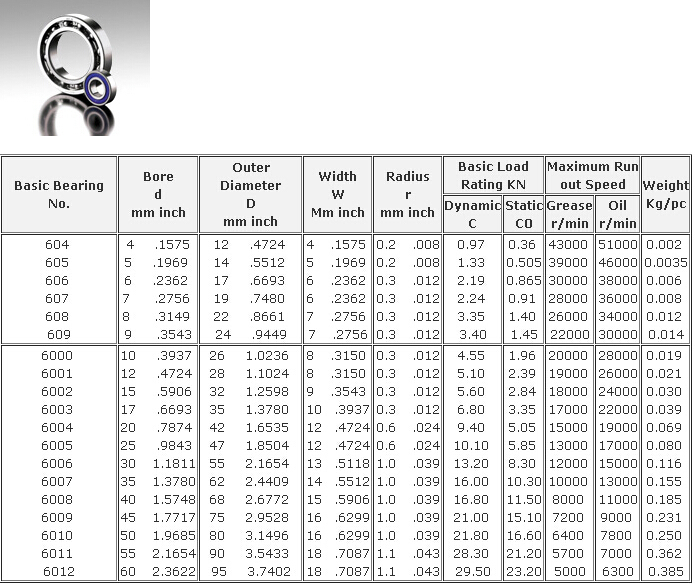

MOTOR BEARING 1.jpg
SYBR 608ZZ deep groove ball bearing skateboard ball bearings models
Boundary Dimensions
(mm)
Basic Load Rating
(kN)
Limiting Speed
(rpm)
Bearing Designation Shoulder Dimensions
(mm)
Mass
(g)
Grease Oil
d D B B1 r
(min.)
r1
(min.)
Cr Cor Open Type
(ZZ,2RU)
(2RS) Open Type
(Z)
Open type With steel shields Without
contacting
rubber seals
With contacting
rubber seals
da
(min.)
Da
(max.)
ra
(max.)
rb
(max.)
Approx
4 12 4 4 0.2 0.2 0.97 0.36 53000 0 63000 604 604 ZZ 0 0 5.6 10.4 0.2 0.2 2.1
5 14 5 5 0.2 0.2 1.3 0.49 50000 0 60000 605 605 ZZ 0 0 6.6 12.4 0.2 0.2 3.5
6 17 6 6 0.3 0.3 1.95 0.74 43000 0 51000 606 606 ZZ 606 2RU 0 8 15 0.3 0.3 5.8
7 19 6 6 0.3 0.3 2.6 1.05 40000 27000 47000 607 607 ZZ 607 2RU 607 2RS 9 17 0.3 0.3 7.6
8 22 7 7 0.3 0.3 3.3 1.35 34000 23000 41000 608 608 ZZ 608 2RU 608 2RS 10 20 0.3 0.3 12
9 24 7 7 0.3 0.3 3.35 1.4 33000 22000 40000 609 609 ZZ 609 2RU 609 2RS 11 22 0.3 0.3 15
3 10 4 4 0.15 0.15 0.64 0.23 52000 44000 63000 623 623 ZZ 0 623 2RS 4.2 8.8 0.15 0.15 1.6
4 13 5 5 0.2 0.2 1.3 0.49 44000 39000 54000 624 624 ZZ 624 2RU 624 2RS 5.6 11.4 0.2 0.2 2.9
5 16 5 5 0.3 0.3 1.75 0.67 40000 33000 49000 625 625 ZZ 625 2RU 625 2RS 7 14 0.3 0.3 5
6 19 6 6 0.3 0.3 2.6 1.05 35000 27000 43000 626 626 ZZ 626 2RU 626 2RS 8 17 0.3 0.3 8.1
7 22 7 7 0.3 0.3 3.3 1.35 31000 23000 37000 627 627 ZZ 627 2RU 627 2RS 9 20 0.3 0.3 13
8 24 8 8 0.3 0.3 3.35 1.4 28000 22000 35000 628 628 ZZ 628 2RU 628 2RS 10 22 0.3 0.3 18
9 26 8 8 0.6 0.6 4.55 2 27000 19000 33000 629 629 ZZ 629 2RU 629 2RS 13 22 0.3 0.3 20
3 13 5 5 0.2 0.2 1.3 0.49 44000 0 54000 633 633 ZZ 0 0 4.6 11.4 0.2 0.2 3
4 16 5 5 0.3 0.3 1.75 0.67 40000 0 49000 634 634ZZ 0 0 6 14 0.3 0.3 5.3
5 19 6 6 0.3 0.3 2.6 1.05 35000 27000 43000 635 635 ZZ 635 2RU 635 2RS 7 17 0.3 0.3 8.5
6 22 7 7 0.3 0.3 3.3 1.35 31000 23000 37000 636 636 ZZ 0 636 2RS 8 20 0.3 0.3 13
7 26 9 9 0.3 0.3 4.55 1.95 26000 0 32000 637 637 ZZ 0 0- 9 24 0.3 0.3 24
8 28 9 9 0.3 0.3 4.55 1.95 26000 0 32000 638 638 ZZ 0 0 10 26 0.3 0.3 29
9 30 10 10 0.6 0.6 6 2.65 24000 0 29000 639 639 ZZ 0 0 13 26 0.6 0.6 35
4 11 4 4 0.15 0.15 0.96 0.35 54000 44000 65000 694 694 ZZ 694 2RU 694 2RS 5.2 9.8 0.15 0.15 1.8
5 13 4 4 0.2 0.2 1.3 0.49 50000 42000 60000 695 695 ZZ 695 2RU 695 2RS 6.6 11.4 0.2 0.2 2.2
6 15 5 5 0.2 0.2 1.75 0.67 45000 32000 54000 696 696 ZZ 696 2RU 696 2RS 7.6 13.4 0.2 0.2 3.9

SYBR 608ZZ deep groove ball bearing skateboard ball bearings applications

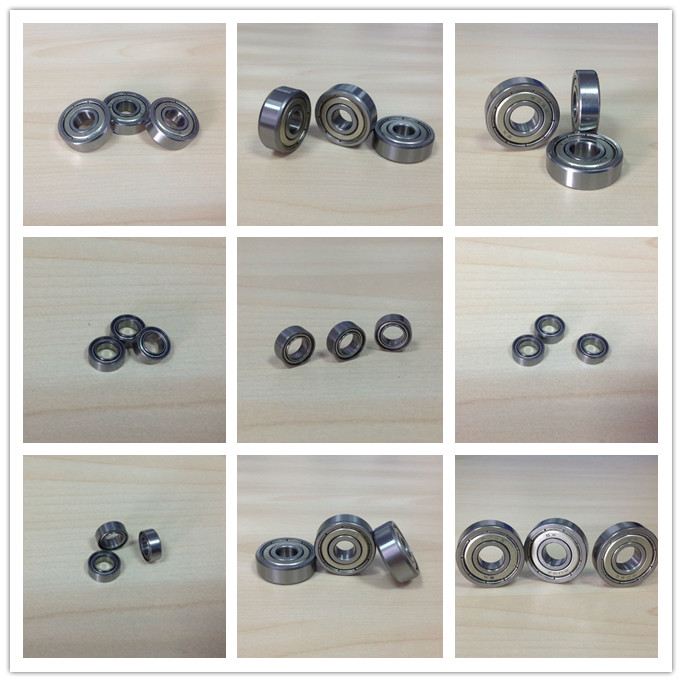

SYBR 608ZZ deep groove ball bearing skateboard ball bearings photos
