The Brief Description of SYBR Cylindrical Roller Bearings N202E.TVP2:

Model Number Cylindrical roller bearings
Bearing Size  15*35*11mm
Rows Single & Double & Four rows
Structure Single-row:NU / N / NJ / NF / NUP
Double rows:NN / NN-K / NNU-K / NNCF / NNCL / NNCS
Four rows:FC/FCD/FCDP
Cage machined brass cage or steel cage
Material GCr15/GCr15SiMn
Precision P0,P6,P5,P4,P2
Brand SYBR or  OEM
Package Original brand plastic bag + original brand paper box+original brand carton box+ wooden pallet;                                  Customer's special requests are acceptable;
Service OEM serive, Customization service, customers' logo service
Available Brand OEM
Application Single & double rows:motors,dynamos,combustion turbines,main shafts of machine tools,reducing gears,handling machinery and transporters
Four rows:rolling mills(cold mill & hot mill & roughing mill)

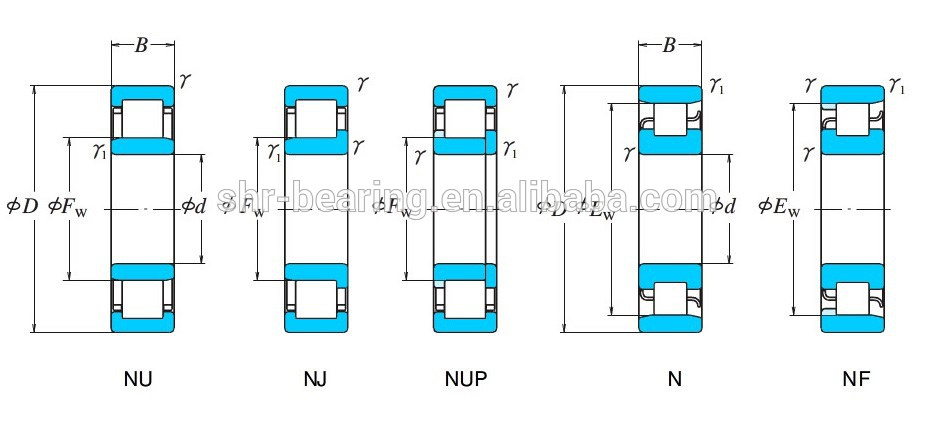

The Cylindrical Roller Bearing Structures:

Boundary

Dimenssion (mm)

        Mass (KG) Bearing Numbers

Basic

Load Ratings(KN)



Limited Speed

(rpm)


d D B r1min rsmin approx Type Cr Cor Grease Oil
15 35 11 0.6 0.3 0.05 N202 12.7 10.4 20000 22000
  35 11 0.6 0.3 0.05 NJ202 12.7 10.4 20000 22000
  35 11 0.6 0.3 0.05 NU202 12.7 10.4 20000 22000
17 40 12 0.6 0.3 0.06 N203 17.6 14.6 10000 18000
  40 12 0.6 0.3 0.06 NJ203 14.5 12.8 18000 18000
20 47 14 1 0.6 0.109 N204 16.6 13.9 17000 20000
  47 14 1 0.6 0.111 NJ204 16.6 13.9 17000 20000
  47 14 1 0.6 0.111 NU204 16.6 13.9 17000 20000
  52 15 1.1 0.6 0.149 N304 23.1 19.2 14000 17000
  52 15 1.1 0.6 0.153 NJ304 23.1 19.2 14000 17000
  52 15 1.1 0.6 0.153 NU304 23.1 19.2 14000 17000
25 52 15 1 0.6 0.134 N205 18.8 17 14000 16000
  52 15 1 0.6 0.137 NJ205 18.8 17 14000 17000
  52 18 1.1 0.6 0.17 NJ2205V 35.3 29.4 12000 25000
  52 15 1 0.6 0.137 NU205 18.8 17 14000 16000
  62 17 1.1 1.1 0.235 N305 31.5 27.7 12000 14000
  62 17 1.1 1.1 0.241 NJ305 31.5 27.7 12000 14000
  62 17 1.1 1.1 0.241 NU305 31.5 27.7 12000 14000
  62 24 1.1 1.1 0.37 NJ2305V 67 72.7 7200 10000
30 62 16 1 0.6 0.203 N206 24.9 23.3 12000 14000
  62 16 1 0.6 0.207 NJ206 24.9 23.3 12000 14000
  62 16 1 0.6 0.207 NU206 24.9 23.3 12000 14000
  72 19 1.1 1.1 0.35 N306 38.5 35 10000 12000
  72 19 1.1 1.1 0.358 NJ306 38.5 35 10000 12000
  72 19 1.1 1.1 0.358 NU306 38.5 35 10000 12000
35 72 17 1.1 0.6 0.289 N207 35.5 34 11000 12000
  72 17 1.1 0.6 0.295 NJ207 35.5 34 11000 12000
  72 17 1.1 0.6 0.295 NU207 35.5 34 11000 12000
  80 21 1.5 1.1 0.451 N307 49.5 47 9000 11000
  80 21 1.5 1.1 0.461 NJ307 49.5 47 9000 11000
  80 21 1.5 1.1 0.461 NU307 49.5 47 9000 11000
  80 21 1.5 1.5 0.536 NUP307V 77.2 78.6 10000 23000
40 80 18 1.1 1.1 0.37 N208 43.5 43 9400 11000
  80 18 1.1 1.1 0.387 NJ208 43.5 43 9400 11000
  80 18 1.1 1.1 0.378 NU208 43.5 43 9400 11000


SYBR Cylindrical Roller Bearings Application:

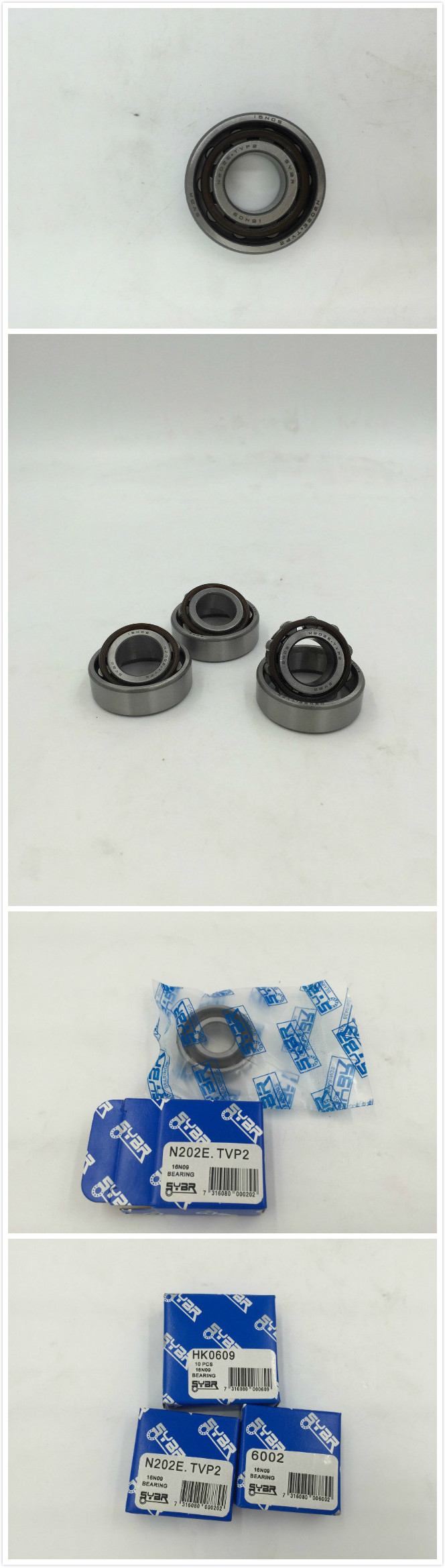

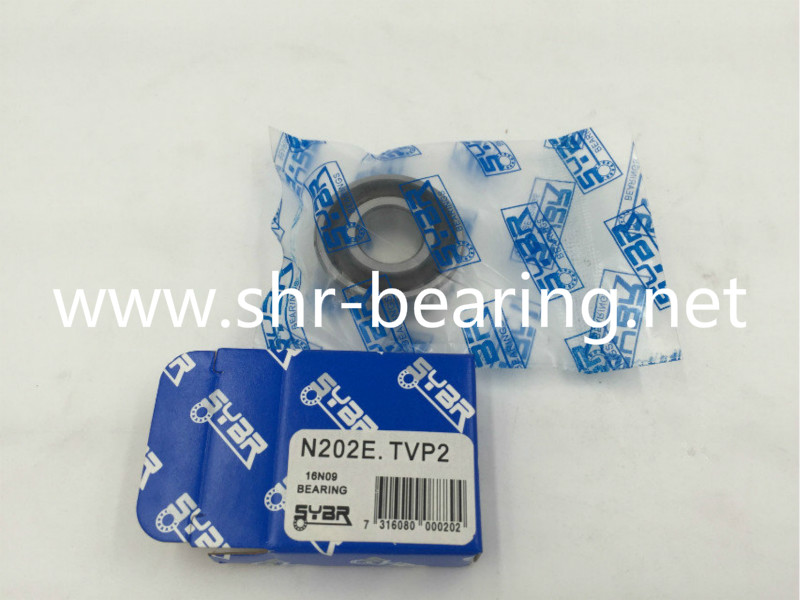

SYBR Cylindrical Roller Bearings N202E.TVP2 Pictures:
