NTN Tapered Roller Bearing 4T-529X/522

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!

Description

Technical

Application

Pictures

The Brief Introduction of NTN Tapered Roller Bearing:

NTN Tapered roller bearing type belongs to the separation bearing, have tapered roller bearing inner andouter race.According to these bearings on the column number of the roller , it is divided into single row, double row and four row circular cone roller bearings of different structure.Single row circularcone roller bearings can bear radial load and the single direction axial load.When bearing radial load, axial force component, would create a so when need another affordable bearing axial force in the opposite direction to balance.Widely used in automotive, rolling mill, mining, metallurgy, plastics machinery and other industries.

Notes:

4T means NTN 4-top tapered roller bearings, case hardened material,

ET means NTN endurance tapered roller bearings, case hardened material.

X means different bore, outer diameter, width or radius from basic part number

U means ISO series, internationally interchangeable through hardened steel
NTN Tapered Roller Bearing 4T-529X/522 Details:

Brand	NTN
Item	Tapered Roller Bearing 4T-529X/522
Material	carbon steel,chrome,stainless steel,plastic,ceramic
Precision	P0,P6,p5,p4
Clearance	C0,C2,C3,C4,C5
Vibration	Z1V1 Z2V2 Z3V3 Z4V4
Tolerance	ABEC1(P0) ABEC3(P6) ABEC5(P5) ABEC7(P4) ABEC9(P2)
cage type	steel plate
features	Long-life with high quality
	Low-nosie with strict controlling the quality of bearings
	High-load by the advanced high-technical design
	Competitive price, which has the most valuable
	OEM service offered, to meet the customers'requirements
application	gearbox,auto,reduction box,engine machinery,mining machinery,bicycle

Parameter List for the Other Tapered Roller Bearing Models:

Part Number		Bearing dimensions			Weight	Bearing Number
inner	outer	Bore	O.D	Width	kg
		d	D	T	kg
		mm	mm	mm	lbs.
		in.	in.	in.	lbs.
385A	383X	50.8	100	25.4	0.85	385A/383X
385A	383X	2	3.937	1	1.88	385A/383X
529	520X	50.8	100	34.925	1.17	529/520X
529	520X	2	3.937	1.375	2.61	529/520X
529X	520X	50.8	100	34.925	1.17	529X/520X
529X	520X	2	3.937	1.375	2.59	529X/520X
529X	J520	50.8	100	34.925	1.19	529X/J520
529X	J520	2	3.937	1.375	2.63	529X/J520
49585	49520	50.8	101.6	31.75	1.12	49585/49520
49585	49520	2	4	1.25	2.46	49585/49520
49585	49522	50.8	101.6	31.75	1.13	49585/49522
49585	49522	2	4	1.25	2.49	49585/49522
529	522	50.8	101.6	34.925	1.23	529/522
529	522	2	4	1.375	2.73	529/522
529X	522	50.8	101.6	34.925	1.23	529X/522
529X	522	2	4	1.375	2.71	529X/522
455	453X	50.8	104.775	30.162	1.18	455/453X
455	453X	2	4.125	1.1875	2.58	455/453X
455-S	453X	50.8	104.775	30.162	1.17	455-S/453X
455-S	453X	2	4.125	1.1875	2.56	455-S/453X
45285	45220	50.8	104.775	30.162	1.22	45285/45220
45285	45220	2	4.125	1.1875	2.68	45285/45220
45284	45220	50.8	104.775	30.162	1.19	45284/45220
45284	45220	2	4.125	1.1875	2.62	45284/45220
45285	45221	50.8	104.775	30.162	1.22	45285/45221
45285	45221	2	4.125	1.1875	2.69	45285/45221
45285A	45220	50.8	104.775	30.162	1.22	45285A/45220
45285A	45220	2	4.125	1.1875	2.68	45285A/45220
45284	45221	50.8	104.775	30.162	1.19	45284/45221
45284	45221	2	4.125	1.1875	2.62	45284/45221
45285A	45221	50.8	104.775	30.162	1.22	45285A/45221
45285A	45221	2	4.125	1.1875	2.68	45285A/45221
59200	59412	50.8	104.775	36.512	1.41	59200/59412
59200	59412	2	4.125	1.4375	3.09	59200/59412

	D(mm)	d(mm)	B(mm)	Weight(kg)
4T-30306	72	30	19	0.398
4T-30306D	72	30	19	0.398
4T-32306	72	30	27	0.592
4T-320/32X	58	32	17	0.181
4T-332/32	65	32	26	0.395
4T-323/32C	75	32	28	0.659
32907XU	55	35	14	0.121
4T-32007X	62	35	18	0.224
4T-33007	62	35	21	0.263
4T-30207	72	35	17	0.344
4T-32207	72	35	23	0.457
4T-32207C	72	35	23	0.461
4T-32207CR	72	35	23	0.461
4T-33207	72	35	28	0.531
4T-30307	80	35	21	0.54
4T-30307C	80	35	21	0.517
4T-30307D	80	35	21	0.53
4T-32307	80	35	31	0.787
4T-32307C	80	35	31	0.797
32908XU	62	40	15	0.161
4T-32008X	68	40	19	0.273
4T-33008	68	40	22	0.312
4T-33108	75	40	26	0.494
4T-30208	80	40	18	0.435
4T-32208	80	40	23	0.558
4T-33208	80	40	32	0.728
4T-T2EE040	85	40	32.5	0.907
4T-30308	90	40	23	0.769
4T-30308C	90	40	23	0.728
4T-30308D	90	40	23	0.738
32308U	90	40	33	1.08
4T-32308C	90	40	33	1.1
32909XU	68	45	15	0.188
4T-32009X	75	45	20	0.346
4T-33009	75	45	24	0.398
4T-33109	80	45	26	0.542
4T-30209	85	45	19	0.495
4T-32209	85	45	23	0.607
4T-33209	85	45	32	0.783
4T-30309	100	45	25	1.01
4T-30309D	100	45	25	0.958
32309U	100	45	36	1.46
32910XU	72	50	15	0.191
32910	72	50	14	0.192
4T-32010X	80	50	20	0.366
4T-33010	80	50	24	0.433
4T-33110	85	50	26	0.58
4T-30210	90	50	20	0.563
4T-32210	90	50	23	0.648
4T-33210	90	50	32	0.852
4T-T2ED050	100	50	35	1.31
4T-T7FC050	105	50	29	1.23
4T-30310	110	50	27	1.31
4T-30310D	110	50	27	1.25
32310U	110	50	40	1.92
32911XU	80	55	17	0.274
4T-32011X	90	55	23	0.563
4T-33011	90	55	27	0.643
4T-33111	95	55	30	0.846
4T-30211	100	55	21	0.74
4T-32211	100	55	25	0.876
4T-33211	100	55	35	1.15
4T-30311	120	55	29	1.66
4T-30311D	120	55	29	1.59
32311U	120	55	43	2.44
32912XA	85	60	17	0.296
4T-32012X	95	60	23	0.576
4T-33012	95	60	27	0.684
4T-33112	100	60	30	0.912

NTN Tapered Roller Bearings application:

•Agriculture, Construction and Mining Equipment
•Various Axle Systems
•Conveyance Vehicles
•Gear Box, Engine Motors, Reducers

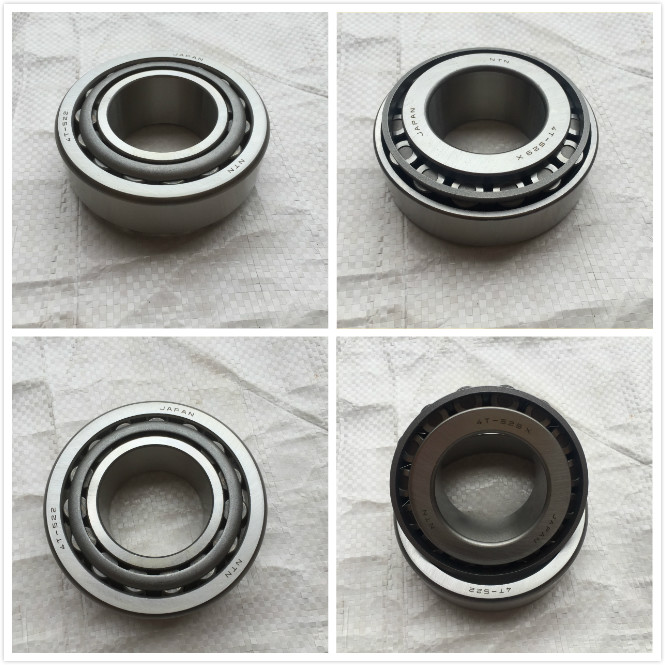

NTN Tapered Roller Bearing 4T-529X/522 Pictures:
