The Brief Introduction of NTN Tapered Roller Bearing:

NTN Taper roller bearing 4T-3490/3420 are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.



NTN Taper roller bearing 4T-3490/3420 are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.

NTN Taper Roller Bearing 4T-3490/3420 Advantage:

1: Suitable for the radial and axial loaded.
2: With low wear rate and long life service.
3: Can be used over a large temperature range.
4: Allows maintenance free and long life operation.
5: Suitable for dirty corrosion impact load and edge loading.
6: The base material provided a good shock absorbing capacity.
7: With low and smoothly coefficient of friction and without stick slip effects

Notes:

4T means NTN 4-top tapered roller bearings, case hardened material,

ET means NTN endurance tapered roller bearings, case hardened material.

X means different bore, outer diameter, width or radius from basic part number

U means ISO series, internationally interchangeable through hardened steel

 NTN Tapered Roller Bearing 4T-3490/3420 Specification:

Type

Dimension

Load rating Limit speed Mass
d D T C C0 grease oil
mm mm mm kN kN r/min r/min kg

4T-3490/3420

38.1 79.375 29.37 91.3 110 6700 9500 0.67

Parameter List for the Other Tapered Roller Bearing Models:




Part Number Bearing dimensions Weight Bearing Number
inner outer Bore O.D Width kg
d D T
mm mm mm lbs.
in. in. in.
385A 383X 50.8 100 25.4 0.85 385A/383X
2 3.937 1 1.88
529 520X 50.8 100 34.925 1.17 529/520X
2 3.937 1.375 2.61
529X 520X 50.8 100 34.925 1.17 529X/520X
2 3.937 1.375 2.59
529X J520 50.8 100 34.925 1.19 529X/J520
2 3.937 1.375 2.63
49585 49520 50.8 101.6 31.75 1.12 49585/49520
2 4 1.25 2.46
49585 49522 50.8 101.6 31.75 1.13 49585/49522
2 4 1.25 2.49
529 522 50.8 101.6 34.925 1.23 529/522
2 4 1.375 2.73
529X 522 50.8 101.6 34.925 1.23 529X/522
2 4 1.375 2.71
455 453X 50.8 104.775 30.162 1.18 455/453X
2 4.125 1.1875 2.58
455-S 453X 50.8 104.775 30.162 1.17 455-S/453X
2 4.125 1.1875 2.56
45285 45220 50.8 104.775 30.162 1.22 45285/45220
2 4.125 1.1875 2.68
45284 45220 50.8 104.775 30.162 1.19 45284/45220
2 4.125 1.1875 2.62
45285 45221 50.8 104.775 30.162 1.22 45285/45221
2 4.125 1.1875 2.69
45285A 45220 50.8 104.775 30.162 1.22 45285A/45220
2 4.125 1.1875 2.68
45284 45221 50.8 104.775 30.162 1.19 45284/45221
2 4.125 1.1875 2.62
45285A 45221 50.8 104.775 30.162 1.22 45285A/45221
2 4.125 1.1875 2.68
59200 59412 50.8 104.775 36.512 1.41 59200/59412
2 4.125 1.4375 3.09


  D(mm) d(mm) B(mm) Weight(kg)
4T-30306 72 30 19 0.398
4T-30306D 72 30 19 0.398
4T-32306 72 30 27 0.592
4T-320/32X 58 32 17 0.181
4T-332/32 65 32 26 0.395
4T-323/32C 75 32 28 0.659
32907XU 55 35 14 0.121
4T-32007X 62 35 18 0.224
4T-33007 62 35 21 0.263
4T-30207 72 35 17 0.344
4T-32207 72 35 23 0.457
4T-32207C 72 35 23 0.461
4T-32207CR 72 35 23 0.461
4T-33207 72 35 28 0.531
4T-30307 80 35 21 0.54
4T-30307C 80 35 21 0.517
4T-30307D 80 35 21 0.53
4T-32307 80 35 31 0.787
4T-32307C 80 35 31 0.797
32908XU 62 40 15 0.161
4T-32008X 68 40 19 0.273
4T-33008 68 40 22 0.312
4T-33108 75 40 26 0.494
4T-30208 80 40 18 0.435
4T-32208 80 40 23 0.558
4T-33208 80 40 32 0.728
4T-T2EE040 85 40 32.5 0.907
4T-30308 90 40 23 0.769
4T-30308C 90 40 23 0.728
4T-30308D 90 40 23 0.738
32308U 90 40 33 1.08
4T-32308C 90 40 33 1.1
32909XU 68 45 15 0.188
4T-32009X 75 45 20 0.346
4T-33009 75 45 24 0.398
4T-33109 80 45 26 0.542
4T-30209 85 45 19 0.495
4T-32209 85 45 23 0.607
4T-33209 85 45 32 0.783
4T-30309 100 45 25 1.01
4T-30309D 100 45 25 0.958
32309U 100 45 36 1.46
32910XU 72 50 15 0.191
32910 72 50 14 0.192
4T-32010X 80 50 20 0.366
4T-33010 80 50 24 0.433
4T-33110 85 50 26 0.58
4T-30210 90 50 20 0.563
4T-32210 90 50 23 0.648
4T-33210 90 50 32 0.852
4T-T2ED050 100 50 35 1.31
4T-T7FC050 105 50 29 1.23
4T-30310 110 50 27 1.31
4T-30310D 110 50 27 1.25
32310U 110 50 40 1.92
32911XU 80 55 17 0.274
4T-32011X 90 55 23 0.563
4T-33011 90 55 27 0.643
4T-33111 95 55 30 0.846
4T-30211 100 55 21 0.74
4T-32211 100 55 25 0.876
4T-33211 100 55 35 1.15
4T-30311 120 55 29 1.66
4T-30311D 120 55 29 1.59
32311U 120 55 43 2.44
32912XA 85 60 17 0.296
4T-32012X 95 60 23 0.576
4T-33012 95 60 27 0.684
4T-33112 100 60 30 0.912


NTN Tapered Roller Bearings application:

•Agriculture, Construction and Mining Equipment
•Various Axle Systems
•Conveyance Vehicles
•Gear Box, Engine Motors, Reducers

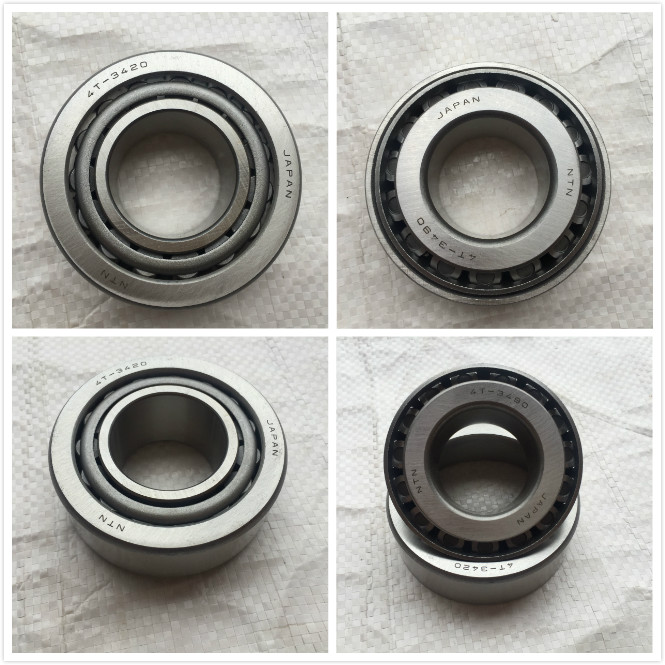

NTN Tapered Roller Bearing 4T-3490/3420 Pictures:
