SYBR 52212 Washer Thrust Ball Bearing

> > >

SYBR 52212 Washer Thrust Ball Bearing

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
needle roller bearing
CARB toroidal roller bearings
thrust roller bearings
Deep groove ball bearings
Angular contact ball bearings
Thrust ball bearings
Self-aligning ball bearing
Y-bearing
Description
Technical
Application
Pictures

The Brief Description of Thrust Ball Bearings:

Thrust ball bearings are made up of series balls (with cage), a shaft washer (fit tightly with axis), and a housewasher, balls are rotating between them.  They only bear axial load in one direction, not radial load.

As the axial load is evenly distributed on each ball, load capacity is very large. But the temperature is higher during working, allowing speed limit is lower. Thrust ball bearings are separable, single direction thrust ball and double direction thrust ball bearings according to their structures. The former can withstand axial load in one direction, the later can withstand axial load in both directions, but not bear radial load. They have the structure with a seat, and the installation surface is spherical, it has a self-aligning performance and reduces installation errors.

So thrust ball bearings are mainly used in automotive, machine tool industries.

Thrust Ball Bearing(51100, 51200, 51300, 51400-series):

Service: Thrust Ball Bearing(51100series)
51100 51101 51102 51103 51104 51105 51106 51107 51108 51109 51110 51111 51112 51113 51114 51115 51116 51117 51118 51120
51122 51124 51126 51128 51130 51132 51134
Service: Thrust Ball Bearing(51200series)
51200 51201 51202 51203 51204 51205 51206 51207 51208 51209 51210 51211 51212 51213 51214 51215 51216 51217 51218
51220 51222 51224 51226 51228 51230 51232 51234
Service: Thrust Ball Bearing(51300series)
51300 51301 51302 51303 51304 51305 51306 51307 51308 51309 51310 51311 51312 51313 51314 51315 51316 51317 51318
51320 51322 51324 51326 51328 51330 51332 51334
Service: Thrust Ball Bearing(51400series)
51405 51406 51407 51408 51409 51410 51411 51412 51413 51414 51415 51416 51417


Basic Information of Washer Thrust Ball Bearing 52212:


Model Number

52212 thrust ball bearing

Brand Name

SYBR

Structure

inch Taper

Type

Roller

Bore Size

60 (mm)

Outside Diameter

95 (mm)

width

46(mm)

Seals Type

Open,

Material

Ring Material Chrome Steel ,Carbon steel,Stainless steel

Cage material

Nylon ,steel , brass

Clearance

C0,C2,C3,C4,C5

Vibration

Zv1,Zv2 and Zv3

Precision Rating

P0,P6,P5

Greese

As you requirement, such as SRL ,PS2, Alvania R12 and so on .

Number of Row

Single Row

Guarantee

One year.

Application

Home appliances, low noise and high speed electric motors,

automotive components, pumps, machinery.

Certifications

ISO 9001:2000



Washer Thrust Ball Bearings Szie Chart:

Designation Dimensions
d (mm) D (mm) H (mm)
52202 10 32 22
52204 15 40 26
52205 20 47 28
52406 20 70 52
52206 25 52 29
52207 30 62 34
52208 30 68 36
52209 35 73 37
52210 40 78 39
52211 45 90 45
52212 50 95 46
52213 55 100 47
52214 55 105 47
52215 60 110 47
52216 65 115 48
52217 70 125 55
52218 75 135 62
52220 85 150 67
52222 95 160 67
52224 100 170 68
52226 110 190 80
52228 120 200 81
52230  130 215 89
52232  140 225 90
52234  150 240 97
52236  150 250 98

SYBR 52212 Washser Thrust Ball Bearing Application:

Crane hook, vertical water pump, vertical centrifuge, jack, low speed reducer, etc

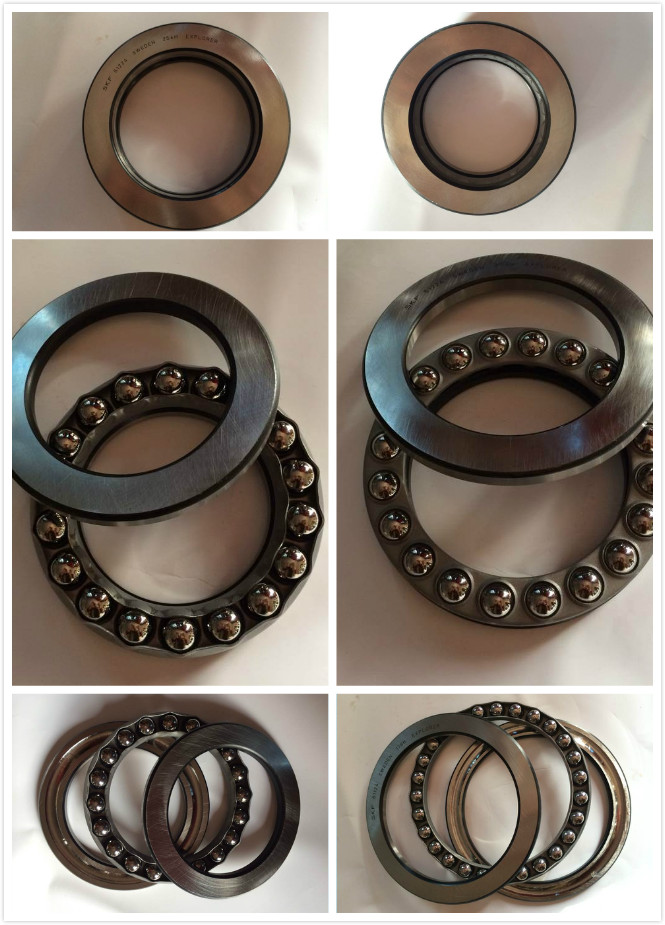

Washer Thrust Ball Bearing 52212 Photos:
