SYBR 399A/394A Sealed Tapered Roller Bearings

> > >

SYBR 399A/394A Sealed Tapered Roller Bearings

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
needle roller bearing
CARB toroidal roller bearings
thrust roller bearings
Deep groove ball bearings
Angular contact ball bearings
Thrust ball bearings
Self-aligning ball bearing
Y-bearing
Description
Technical
Application
Pictures

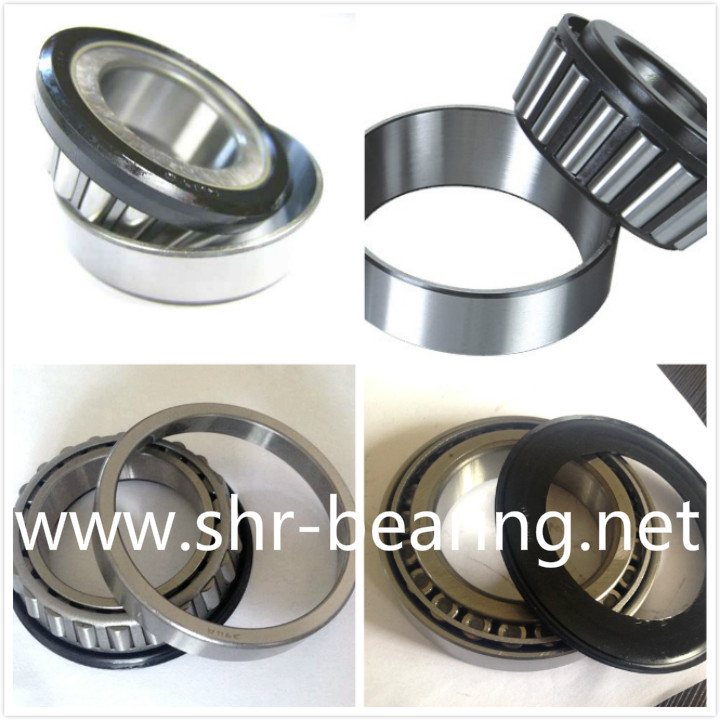

Sealed Tapered Roller Bearing Details:

SYBR taper roller bearings have taper inner and outer ring raceways and taper rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide true rolling and low friction. The axial load carrying capacity of auto taper roller bearings increases with increasing contact angle (α). The size of the angle is indicated by the calculation factor e: the larger the value of e, the larger the contact angle. A single row taper roller bearing is typically adjusted against a second tapered roller bearing.Single row taper roller bearings are separable  i.e. the inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).

Product 68.262x110x79.045 mm Sealed taper roller bearing 399A/394A
Precision Rating ABEC1,ABEC3,ABEC
Clearance C0,C2,C3,C4,C5 is available
Sealed Cap  Rubber or Metal
Paypal  Acceptable
OEM Accept
Vibration Level code V1,V2.V3
Material Gcr15
Seals Type ZZ/ZRS.RZ/RS. Open

Bore Size

Outside Diameter

Thinckess

68.262  MM

110.0     MM

79.0    mm

Number of Row Double
Regular export packing Plastic drum+White box+ carton
  industrial packaging or as your requiremen.
MOQ 1 pcs
Delivery Time 3-7 days after receiving your payment
Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Port of shippment by sea Shanghai,guangzhou,qingdao
Place of Origin Shandong
Samples

OK



Shipping and Delivery:


Bearings Package:

Original Package:

    1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);

    2):Small sizes:Plastic Tube + Carton

    3):Big sizes:Wooden Case



Bearings Lead time:

 We will prepare your order as soon as possible.

    1)2-3 days for ex-stock

    2)6-10 days for others



Shipping & Delivery time:



1)Less than 45 Kg:DHL TNT Fedex UPS express will be better,( 4-7 days delivered to your address);

2) Between 45 to 200 Kg:Air transiportation will be better,( 5-14 days delivered to your airport);

3) Over 200 Kg:Sea transportation will be better.( Cheapest,18-45 days to your port ).





Note:We will offer the best freight for you to save the shipping cost.Besides we provide all needed documents for your Customs clearance.Of course,your forwarder will be also welcome!

SET Tapered Roller Bearings Catalog:


Modle D(mm) d(mm) B(mm)
12168 12303 76.992 42.862 17.145
26884R 26822 79.375 42.875 25.4
25577 25520 82.931 42.875 25.4
L102849 L102810 73.025 44.45 18.258
12175 12303 76.992 44.45 17.145
18685 18620 79.375 44.45 17.462
25582 25520 82.931 44.45 25.4
3578R 3520 84.138 44.45 30.886
355 354A 85 44.45 21.692
355A 354A 85 44.45 21.692
HM803149 HM803110 88.9 44.45 29.37
49175 49368 93.662 44.45 31.75
46175 46368 93.662 44.45 31.75
46176 46368 93.662 44.45 31.75
33885 33821 95.25 44.45 28.575
438 432A 95.25 44.45 29.901
HM804842 HM804810 95.25 44.45 29.37
HM804843 HM804810 95.25 44.45 29.37
49576 49520 98.425 44.45 31.75
527 522 101.6 44.45 36.068
HM807040 HM807010 104.775 44.45 36.512
535 532A 111.125 44.45 36.957
615 612 120.65 44.45 41.275
3776 3720 93.264 44.983 30.302
358 354A 85 45 21.692
LM102949 LM102910 73.431 45.242 19.812
LM603049 LM603011 77.788 45.242 19.842
LM603049 LM603012 77.788 45.242 19.842
LM603049 LM603014 79.974 45.242 19.842
25590 25526 85 45.618 25.4
LM503349R LM503310 74.976 45.987 18
18690 18620 79.375 46.038 17.462
359A 354A 85 46.038 21.692
359S 354A 85 46.038 21.692
2984 2924 85 46.038 25.608
369A 362A 88.9 47.625 22.225
M804049 M804010 88.9 47.625 25.4
HM804846 HM804810 95.25 47.625 29.37
386A 382A 96.838 47.625 21.946
528 522 1.6 47.625 36.068
463 453X 4.775 47.625 29.317
467 453X 4.775 47.625 29.317
45282 45220 4.775 47.625 30.958
HM804848 HM804810 95.25 48.412 29.37
HM804849 HM804810 95.25 48.412 29.37
365S 362A 88.9 49.212 22.225
HM807044 HM807010 4.775 49.212 36.512
65390 65320 14.3 49.212 44.45
HH506348 HH506310 14.3 49.212 44.45
28579R 28521 92.075 49.987 25.4
JLM104948 JLM104910 82 50 21.501
365 362A 88.9 50 22.225
366 362A 88.9 50 22.225
JM205149 JM205110 90 50 28
JHM807045 JHM807012 105 50 36
396 394A 110 50 21.996
L305649R L305610 80.962 50.8 18.258
LM104949 LM104911 82.55 50.8 22.225
18200 18337 85.725 50.8 18.263
18790 18724 88.9 50.8 17.462
368 362A 88.9 50.8 22.225
368A 362A 88.9 50.8 22.225
370A 362A 88.9 50.8 22.225
28580R 28521 92.075 50.8 25.4
375 374 93.264 50.8 22.225
3780 3720 93.264 50.8 30.302
3780 3730 93.264 50.8 30.302
33889 33822 95.25 50.8 28.575
385AX 382A 96.838 50.8 21.946
28678 28622 97.63 50.8 24.608
3780 3732 98.425 50.8 30.302
49585 49520 101.6 50.8 31.75
529 522 101.6 50.8 36.068
529X 522 101.6 50.8 36.068
45284 45220 104.775 50.8 30.958
59200 59412 104.775 50.8 36.512


Sealed Tapered Roller Bearings Application:

Sealed Tapered Roller Bearings;
