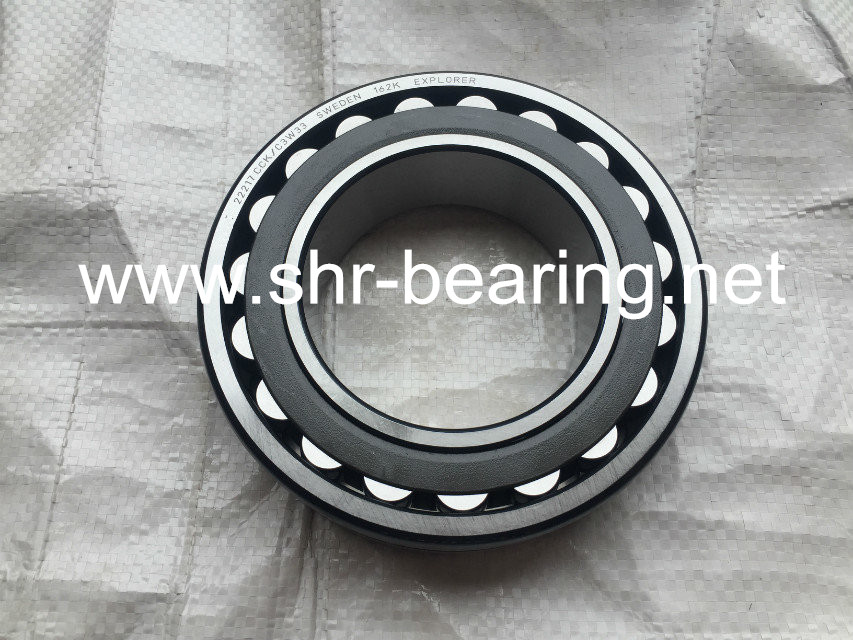

SYBR roller bearings 22217CCK/C3W33 spherical bearing

> > >

SYBR roller bearings 22217CCK/C3W33 spherical bearing

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
needle roller bearing
CARB toroidal roller bearings
thrust roller bearings
Deep groove ball bearings
Angular contact ball bearings
Thrust ball bearings
Self-aligning ball bearing
Y-bearing
Description
Technical
Application
Pictures

Description of spherical roller bearings
Spherical roller bearings with two rollers, mainly bear radial load, but also can withstand axial load in either direction. A high radial load capacity, especially suitable for heavy loads or vibration, but can not bear the pure axial load. This kind of bearing outer ring raceway is spherical shape, so the good performance of its self-aligning, can compensate concentricity error.

There are two symmetrical spherical roller, there is a common spherical outer ring raceway, the bearing inner ring with two axis tilt

Angle of raceway, aligning with good performance, when the axis force bent or install a different heart is still bearing the normal use, transfer concentric with the bearing size range varies, generally aligning allowed 1 to 2.5 degree angle load bearing capacity of the larger type, in addition to radial loads but also under way outside the role of bearing axial load, with good impact resistance, in general, self-aligning roller bearings allowed working speed than the low.

Detail information of the spherical roller bearings

C(J),EC(J).CA,ECA,CAF,CAFA, and so on.

1.CA: Integral brass cage, double row symmetrical rollers,inner ring ride

2.MA: Integral brass cage, double row symmetrical rollers ,outer ring ride

3.MB: Two piece brass cage,double row asymmetrical rollers, inner ring ride

4.CC: Two piece steel cage, double row symmetrical rollers,inner ring ride

5.CTN1: Double row symmetrical rollers ,nylon cage

6.K: Tapered bore bearing, the taper is 1:12

7.K30: Tapered bore bearing,the taper is 1:3


OD(Outer diameter) : 20-200mm
ID(Inner diameter): 10-100mm
B(Thickness) : 1-150mm
Net Weight : Email us, get more detailed - Net Weight parameters
Material : Bearing steel
Dynamic Load Rating : Used when calculating dry sliding bearings which are to be dynamically loaded
Static Load Rating : Defined as the maximum load which one bearing composite bushing
Max Speed :

Determined by criteria that include the form stability of the cage and other

 limiting factors

Clearance :

Defined as the total distance through which one bearing ring can be moved

relative to the other in the radial direction

Number of Rows : According to specific product, we can custom-made for you

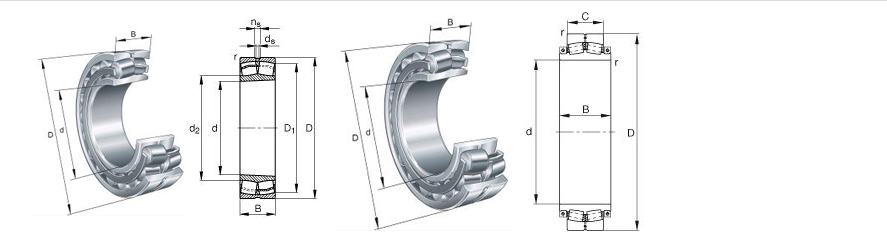

Bearings NO. d/mm D/mm B/mm C/kN C0/kN Weight/kg
22326 CC/W33 130 280 93 1120 1320 29
22326 CCJA/W33VA405 130 280 93 1120 1320 29
22326 CCK/W33 130 280 93 1120 1320 28.5
22326 CCKJA/W33VA405 130 280 93 1120 1320 28.5
23028 CC/W33 140 210 53 465 680 6.55
23028 CCK/W33 140 210 53 465 680 6.35
24028 CC/W33 140 210 69 570 900 8.55
24028 CCK30/W33 140 210 69 570 900 8.4
24028-2CS2/VT143 140 210 69 570 900 8.55
23128 CC/W33 140 225 68 630 900 10.5
23128 CCK/W33 140 225 68 630 900 10
24128 CC/W33 140 225 85 765 1160 13.5
24128 CCK30/W33 140 225 85 765 1160 13.5
24128-2CS2/VT143 140 225 85 765 1160 13.5
22228 CC/W33 140 250 68 710 900 14
22228 CCK/W33 140 250 68 710 900 13.5
23228 CC/W33 140 250 88 915 1250 19
23228 CCK/W33 140 250 88 915 1250 18.5

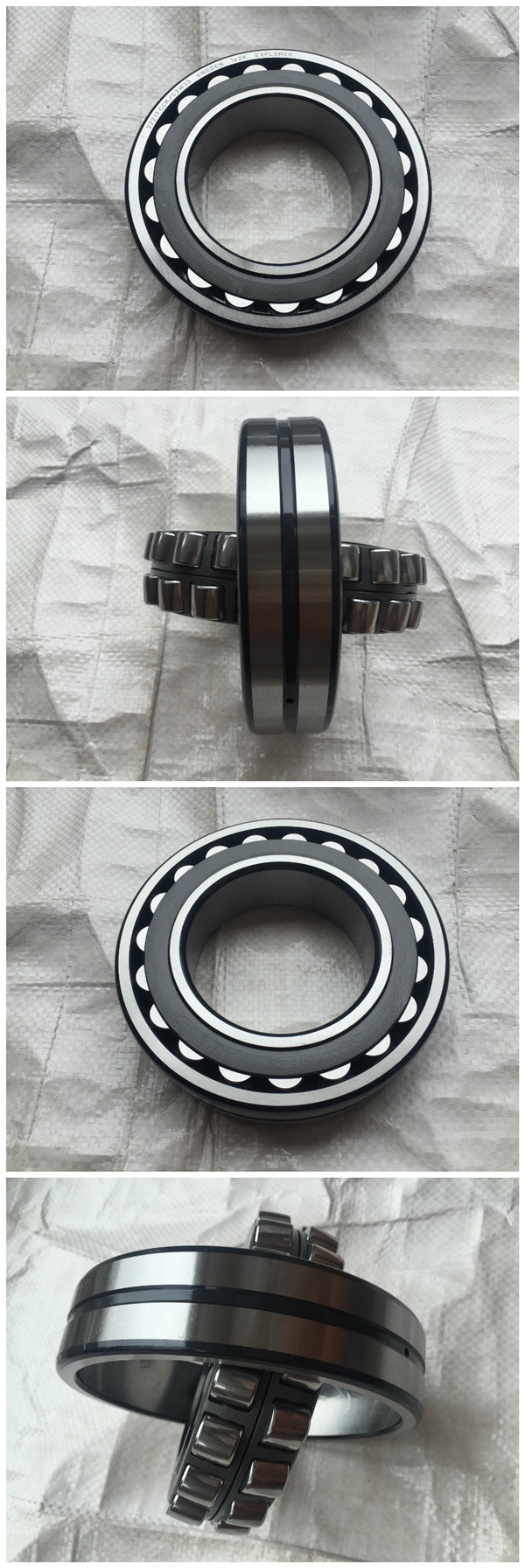

Pictures of spherical roller bearings

Shipping details

Our advantage

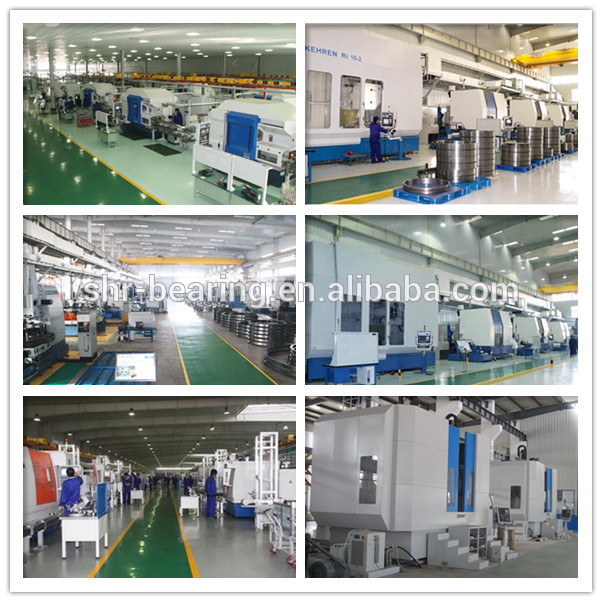

Our company
