Full Complement Cylindrical Roller Bearing SL04-5012NR Details:

Full complement cylindrical roller bearings have solid inner and outer rings and rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs. Due to their kinematic conditions, however, they cannot achieve the high speeds that are possible when using cylindrical roller bearings with cage.

Full complement cylindrical roller bearings are available as non-locating, semi-locating and locating bearings and in single and double row designs.


Product name

SL04-5012NR Cylindrical roller bearing

Model

SL04-5012NR

Precision

P6

Thickness

36mm

Inner diameter

35mm

Outer diameter

62mm

Weight

0.48kg

Structure

double row, semi locating, full complement

Application

Agricultural machinery, electric motorcycle, generator


Single Row Full Complemnet Cylindrical Roller Bearings Size Chart:


Size(mm Specified Load (kN) Limit speed Weight (Kg) Bearing code
(r/min)*
d D B rs min Cr Cor     SUMA STANDARD
20 42 16 0.6 27.5 26.5 9000 0.11 NCF3004V SL183004
20 47 18 1 41 37.5 7000 0.16 NCF2204V SL182204
25 47 16 0.6 31.5 32.5 7500 0.12 NCF3005V SL183005
25 52 18 1 46 45 6000 0.18 NCF2205V SL182205
25 62 24 1.1 63 57 4500 0.37 NJ2305V SL192305
30 55 19 1 40.5 43 6500 0.2 NCF3006V SL183006
30 62 20 1 61 63 5000 0.3 NCF2206V SL182206
30 72 27 1.1 87 85 3800 0.56 NJ2306V SL192306
35 62 20 1 49.5 55 5500 0.26 NCF3007V SL183007
35 72 23 1.1 76 77 4300 0.44 NCF2207V SL182207
35 80 31 1.5 113 112 3400 0.74 NJ2307V SL192307
40 68 21 1 59 68 5000 0.31 NCF3008V SL183008
40 80 23 1.1 84 89 3800 0.55 NCF2208V SL182208
40 90 33 1.5 152 155 3000 1.01 NJ2308V SL192308
45 75 23 1 63 76 4600 0.4 NCF3009V SL183009
45 85 23 1.1 88 96 3600 0.59 NCF2209V SL182209
45 100 36 1.5 162 165 2700 1.37 NJ2309V SL192309
50 80 23 1 77 92 4300 0.43 NCF3010V SL183010
50 90 23 1.1 95 109 3300 0.64 NCF2210V SL182210
50 110 40 2 205 215 2500 1.81 NJ2310V SL192310
55 90 26 1.1 105 134 3700 0.64 NCF3011V SL183011
55 100 25 1.5 122 145 3000 0.87 NCF2211V SL182211
55 120 43 2 242 255 2300 2.28 NJ2311V SL192311
60 85 16 1 54 74 3800 0.29 NCF2912V SL182912
60 95 26 1.1 108 141 3500 0.69 NCF3012V SL183012
60 110 28 1.5 152 179 2700 1.18 NCF2212V SL182212
60 130 46 2.1 260 280 2100 2.88 NJ2312V SL192312
65 90 16 1 57 81 3500 0.31 NCF2913V SL182913
65 100 26 1.1 113 154 3200 0.73 NCF3013V SL183013
65 120 31 1.5 177 213 2500 1.57 NCF2213V SL182213
65 140 48 2.1 315 355 1900 3.52 NJ2313V SL192313
70 100 19 1 76 108 3200 0.49 NCF2914V SL182914
70 110 30 1.1 134 171 3100 1.02 NCF3014V SL183014
70 125 31 1.5 183 226 2400 1.66 NCF2214V SL182214
70 150 51 2.1 345 390 1800 4.33 NJ2314V SL192314
75 105 19 1 78 116 3000 0.52 NCF2915V SL182915
75 115 30 1.1 141 188 2800 1.06 NCF3015V SL183015
75 130 31 1.5 190 239 2300 1.75 NCF2215V SL182215
75 160 55 2.1 410 475 1700 5.3 NJ2315V SL192315
80 110 19 1 81 123 2900 0.55 NCF2916V SL182916
80 125 34 1.1 173 224 2600 1.43 NCF3016V SL183016
80 140 33 2 223 280 2100 2.15 NCF2216V SL182216
80 170 58 2.1 480 560 1600 6.32 NJ2316V SL192316
85 120 22 1.1 102 155 2700 0.81 NCF2917V SL182917
85 130 34 1.1 178 235 2500 1.51 NCF3017V SL183017
85 150 36 2 255 320 2000 2.74 NCF2217V SL182217
85 180 60 3 510 620 1500 7.34 NJ2317V SL192317

Full Complemnet Cylindrical Roller Bearings Application:

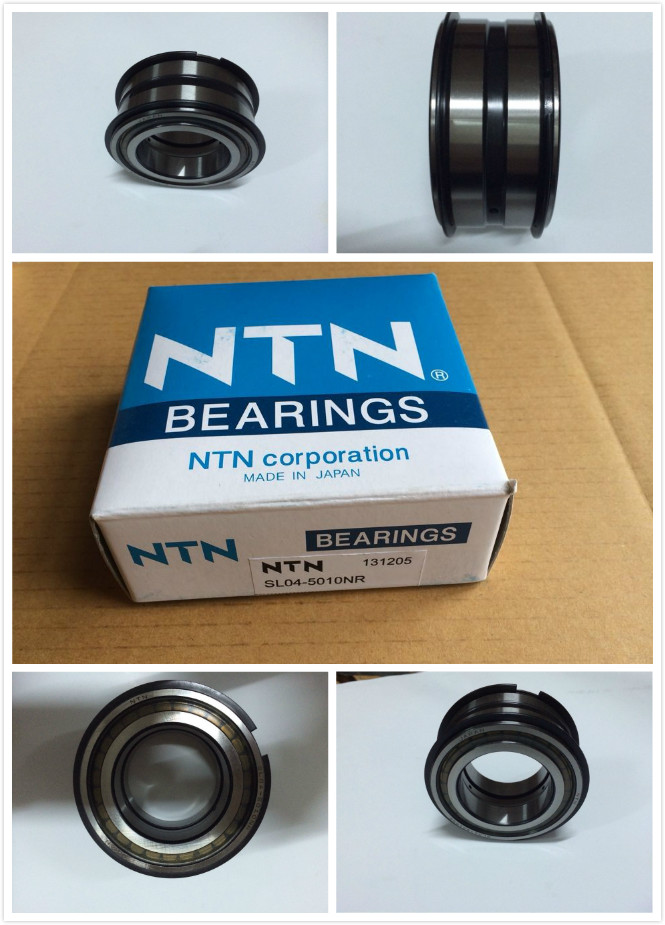

Full Complemnet Cylindrical Roller Bearing Pictures:
