NTN 7313B Spindle Ball Bearing Price

> > >

NTN 7313B Spindle Ball Bearing Price

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
needle roller bearing
CARB toroidal roller bearings
thrust roller bearings
Deep groove ball bearings
Angular contact ball bearings
Thrust ball bearings
Self-aligning ball bearing
Y-bearing
Description
Technical
Application
Pictures

The Brief Description of  Angular Contact Ball Bearings:

Angular contact ball bearings are the most representive of the rolling bearings,a wide range of uses.for speed operation,but also very durable,without regular maintenance.small coefficient of friction of such bearings  ,limit high-speed,simple structure,low mannufactringcost and easy to reach a higher manufacturing precision.


Lubrication

   Bearings with lip seals on both sides are greased with a high quality grease and are lubricated for life.

   Open bearings and bearings with seals on one side are not greased. They can be lubricated with grease or oil.



Operating temperature

   Open angular contact ball bearings can be used at operating temperatures from -30 °C to +150 °C. Bearings with a diameter D > 240 mm are dimensionally
stable up to +200 °C.

   Angular contact ball bearings with cages made from glass fibre reinforced polyamide are suitable for operating temperatures up to +120 °C, restricted by the
 cage material.

   Sealed bearings are suitable for operating temperatures from -30 °C to +110 °C, restricted by the lubricant and the seal material.



Cages

   Angular contact ball bearings with solid cages made from glass fibre reinforced polyamide have the suffix TVP or TVH.

   Solid brass cages have the suffix MP.

   The bearings are also available with universally applicable sheet steel window cages (suffix JP).

   Check the chemical resistance of polyamide to synthetic greases and lubricants with EP additives.

   Aged oil and additives in the oil can impair the operating life of plastic cages at high temperatures.



   The oil change intervals must be observed.

NTN Single Row Angular Contact Ball Bearing 7200,7300 Series Size Chart:

designation Dimensions
d (mm) D (mm) B (mm)
7200 BECBP 10 30 9
7201 BECBP 12 32 10
7202 BECBP 15 35 11
7202 BECBP 15 35 11
7203 BECBP 17 40 12
7303 BECBP 17 47 14
7204 BECBP 20 47 14
7304 BECBP 20 52 15
7302 BECBP 15 42 13
7204 BECBP 20 47 14
7304 BECBP 20 52 15
7205 BECBP 25 52 15
7305 BECBP 25 62 17
7206 BECBP 30 62 16
7206 BEGBP 30 62 16
7207 BECBP 35 72 17
7307 BECBP 35 80 21
7208 BECBP 40 80 18
7308 BECBP 40 90 23
7209 BECBP 45 85 19
7309 BECBP 45 100 25
7210 BECBP 20 90 50
7215 BECBP 75 130 25
7315 BECBP 75 160 37
7216 BECBP 80 140 26
7316 BECBP 80 170 39
7217 BECBP 85 150 28
7317 BECBP 85 180 41
7218 BECBP 90 160 30
7318 BECBP 90 190 43
7219 BECBP 95 170 32
7319 BECBP 95 200 45
7220 BECBP 100 180 34
7306 BECBP 30 72 19
7310 BECBP 27 110 50
7211 BECBP 21 100 55
7311 BECBP 55 120 29
7212 BECBP 60 110 22
7312 BECBP 60 130 31
7213 BECBP 65 120 23
7313 BECBP 65 140 33
7214 BECBP 70 125 24
7314 BECBP 70 150 35
7320 BECBP 100 215 47
7221 BECBP 105 190 36
7321 BECBP 105 225 49
7222 BECBP 110 200 38
7322 BECBP 110 250 50

Angular Contact Ball Bearings Applications:



Single row: machine tool spindle,  high frequency motor, gas turbine, centrifuge, differential pinion-shaft, small cars’s front wheel, etc.

Double row: oil pump, roots blower, air compressor, all kinds of transmission gearbox, fuel injection pump, printing machinery, etc.

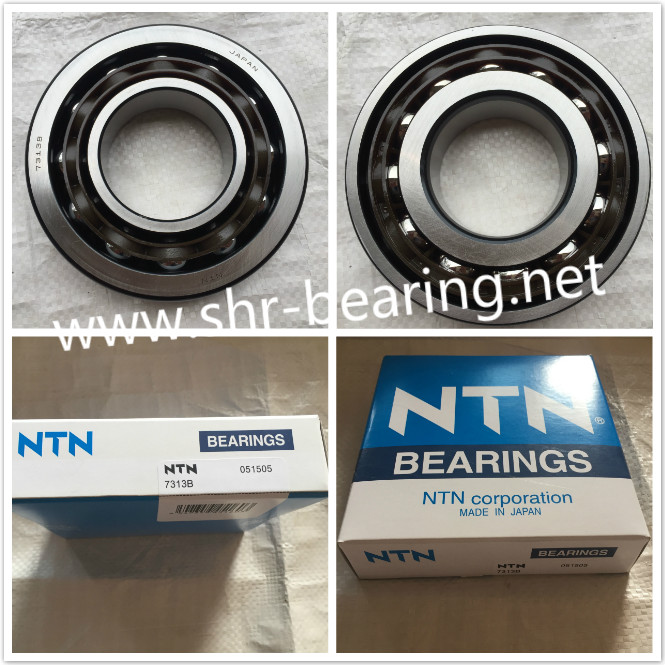

NTN Single Row Angular Contact Ball Bearing 7313B Pictures:
