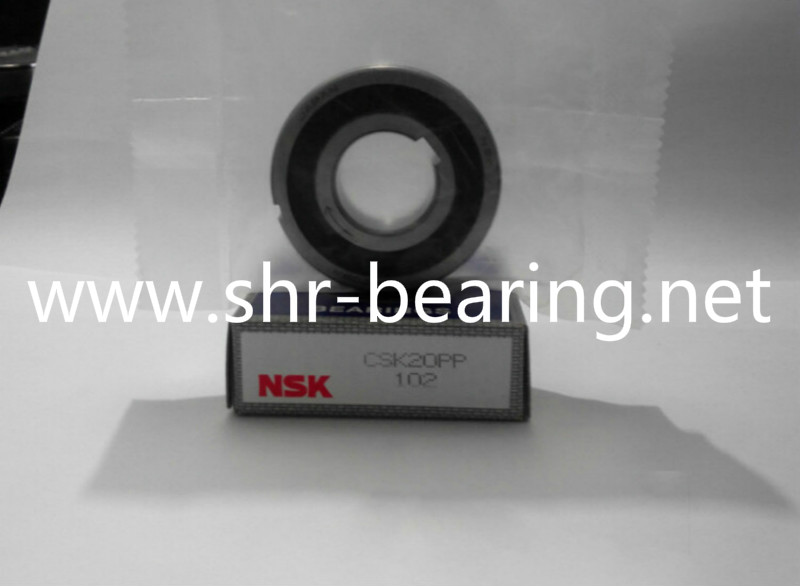

NSK CSK20PP One Way Direction Bearings

> > >

NSK CSK20PP One Way Direction Bearings

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
needle roller bearing
CARB toroidal roller bearings
thrust roller bearings
Deep groove ball bearings
Angular contact ball bearings
Thrust ball bearings
Self-aligning ball bearing
Y-bearing
Description
Technical
Application
Pictures

The Brief Description of One Way Bearing CSK20PP:



One way clutch bearing also can be called one way (direction) bearing, one way direction bearing, one way direction bearings, One-Way Roller Clutch Bearing, One-way Needle Clutch Bearing, clutch, one-way bearings, single-direction bearings, special-bearings. CSK Series (One-Way Bearing) The CSK model freewheel is a sprag type clutch integrated into a 6200 series ball bearing (except sizes 8 and 40). It provides you with a one way clutch, and eliminates the need for a ball bearing. It gives a high degree of freewheeling accuracy while utilizing a minimum of space. CSK series one way (direction) bearing consists of a standard ball bearing, in-built special snap block and cage, widely used in washing machine, hydraulic machinery, printing machines, textile machinery and so on.


CSK bearings Features:

1. CSK bearing is one way bearing with a sprag type.

2. CSK bearing has CSK..P, CSK..PP series.

3. CSK bearins series are composed of a 62 series ball bearing (except CSK8 and 40).

4. CSK bearing or One-way bearings are widely used in mining /hydraulic / textile / printing / washing machines, conveyor systems and so on.

5. One way bearing (freewheel bearing) CSK series, HF, HFL, FCB, B200 series.

6. One way clutch (overrunning clutch), GFR, MZ series.

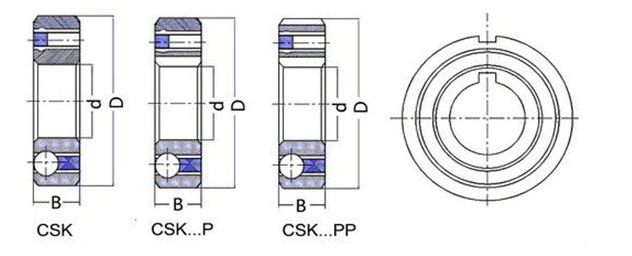

CSK—P and CSK—PP series are available upon request. CSK--P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race; CSK--PP features a keyway in both the inner and outer race. The Model CSK—P clutches must be secured to the shaft by customer supplied snap ring, set collar, spacer, etc. The outer race is secured with a press fit to a N6 tolerance. The Model CSK—PP clutches have a keyway on both races and must be secured by customer supplied snap ring, set collar, spacer, etc




Stock List of One Way Bearing CSK series:


Type

Size mm

Drag torque
Tkn(N.m)

Weight(KG)

SYBR

GERMANY

JAPAN

d(inside dimension)

D(outside dimension)

B(thickness)

CSK8PP

CSK8



8

22

9

2.5

0.015

CSK12PP

CSK12



12

32

10

7.5

0.04

CSK15PP

CSK15

BB15

15

35

11

13.5

0.05

CSK17PP

CSK17

BB17

17

40

12

24.5

0.07

CSK20PP

CSK20

BB20

20

47

14

40

0.11

CSK25PP

CSK25

BB25

25

52

15

68

0.14

CSK30PP

CSK30

BB30

30

62

16

110

0.21

CSK35PP

CSK35

BB35

35

72

17

140

0.3

CSK40PP

CSK40

BB40

40

80

22

260

0.5

CSK8-2RS

CSK8-2RS



8

22

9

2.5

0.015

CSK12-2RS

CSK12-2RS



12

32

14

7.5

0.05

CSK15-2RS

CSK15-2RS

BB15-2GD

15

35

16

13.5

0.07

CSK17-2RS

CSK17-2RS

BB17-2GD

17

40

17

24.5

0.09

CSK20-2RS

CSK20-2RS

BB20-2GD

20

47

19

40

0.145

CSK25-2RS

CSK25-2RS

BB25-2GD

25

52

20

68

0.175

CSK30-2RS

CSK30-2RS

BB30-2GD

30

62

21

110

0.27

CSK35-2RS

CSK35-2RS

BB35-2GD

35

72

22

140

0.4

CSK40-2RS

CSK40-2RS

BB40-2GD

40

80

27

260

0.6


Application for ball bearing one way clutch bearing:

• Paper moving for copiers, fax machines, paper towel dispensers, etc.
• Exercise equipment,back stop applications.
• Appliances,free wheel drives ,starter systems.
• Two-speed gearboxes
• Rack indexing drives
• Converters, non-return devices and transcendental clutches.
• Fishing Reels, RC Cars, RC Helis, RC Engines

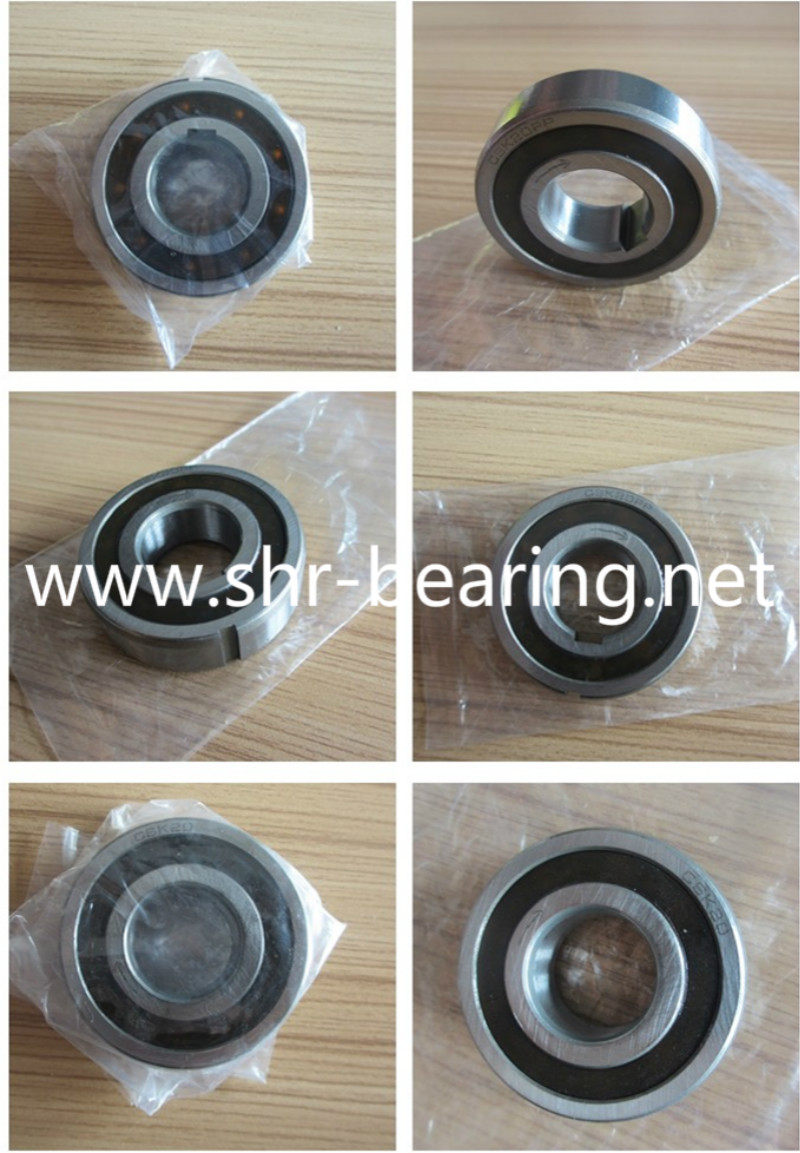

NSK one way cam clutch bearing CSK Series Pictures:

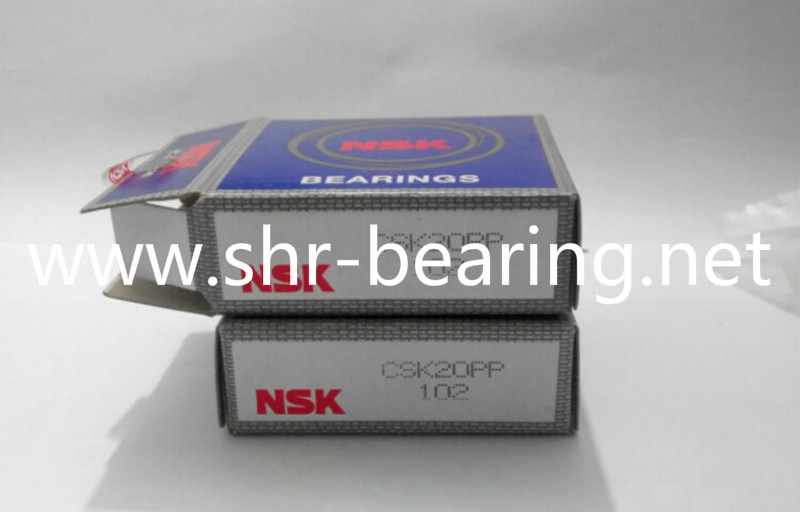

NSK one way cam clutch bearing packing and shipping:

1. For small ones:anti-rust oil+vacuum plastic bag+paper box+wooden box

2. For big ones:anti-rust oil+waterproof belt+professional belt+wooden box

Payment Terms:

L/C ,T/T ,western Union

1. 30% deposit By T/T, Western Union, Paypal, 70% before delivery.

2. 100% L/C at sight

Other information:

Production Lead time: 7~25days; If we have this item in stock , 2days delivery.

Delivery Date: within 3-5days after your payment.

Sample: Free, but we don't bear the freight of sample

MOQ: 1 set Supply Ablility:100000 pcs/Month
