NSK 90BAR10TYNDBLP4A Precision Machine Tool Spindle Bearings



NSK Precision Machine Tool Spindle Bearings 90BAR10TYNDBLP4A are angular contact ball bearings in a tandem arrangement are used when the actual thrust force exceeds the thrust load capacity of a single angular contact ball bearing , Single row angular contact ball bearings in tandem arrangement must always be adjusted against another bearing inversely arranged for shaft guidance in the opposite direction , Single row angular contact ball bearings in spindle bearing design must not be exposed to any misalignments .





Normal preffix and suffix meaning :

Material: Blank symbol: Bearing steel(SUJ2), SN24:Ceramic Balls

Retainer: TR: Phenolic Cage, TYN: Polyamide cage

Seal: No Symbol: Open type, V1V:Non Contact Rubber seal

Mounting configuration: SU: single universal , DU: Duplex Universal

DB,DF DT: Duplex Arrangement; DBD,DFD,DTD,DUD: Triplex Arrangement

DBB,DFF,DBT,DFT,DTT,QU: Quad Arrangement

Preload: L: light, M: Medium, H: Heavy

Precision: P4: ISO class4 (ABEC7) , P3: Dimensions ISO class4, Running accuracy ISO class 2   P2: ISO class 2 (ABEC9)


NSK Spindle bearing 90BAR10STYNDBLP4A datas :

Commodity name            NSK high speed Angular contact ball bearing
Bearing model                           bearing 90BAR10STYNDBLP4A
Bearing specification                                       90*140*45 mm  bearing
Weight /KG                                     1.32  KG
Bearing Series

                BAR10  BTR10 series (ROBUST series )

Ring Materical                                    Chrome Steel
Quality standard                                  ISO9001:2008
Bearing Precision                                                                        P5 ,P4
Cage                                          Nylon
Service                                                                                OEM service offer

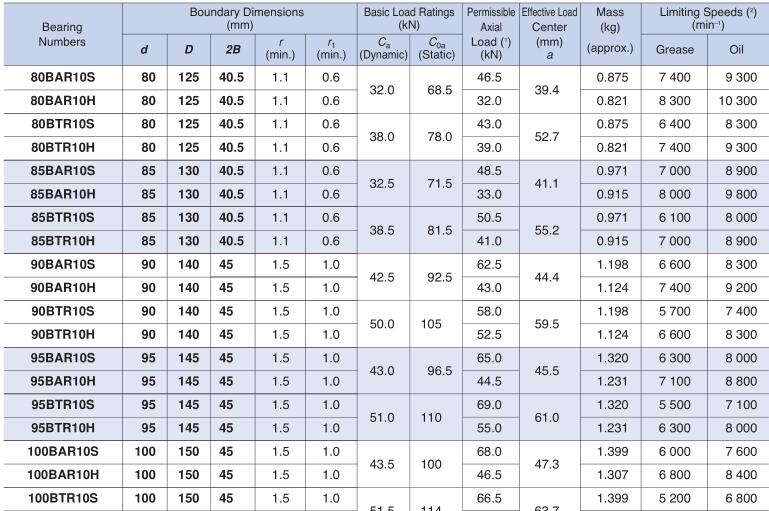

NSK 90BAR10TYNDBLP4A Precision Machine Tool Spindle Bearings models series




Type (d) (D) 2B Type (d) (D) 2B
50BAR10S 50 80 28.5 110BAR10S 110 170 54
55BAR10S 55 90 33 120BAR10S 120 180 54
60BAR10S 60 95 33 130BAR10S 130 200 63
65BAR10S 65 100 33 140BAR10S 140 210 63
70BAR10S 70 110 36 150BAR10S 150 225 67.5
75BAR10S 75 115 36 160BAR10S 160 240 72
80BAR10S 80 125 40.5 170BAR10S 170 260 81
85BAR10S 85 130 40.5 180BAR10S 180 280 90
90BAR10S 90 140 45 190BAR10S 190 290 90
95BAR10S 95 145 45 200BAR10S 200 310 99
100BAR10S 100 150 45 105BAR10S 105 160 49.5


Super precision bearings in NSK and NTN brand :

NSK NTN NSK NTN
17TAC47BSUC10PN7B BST17*47-1BP4 7000CTYNSULP4 7000UCG/GNP4
20TAC47BSUC10PN7B BST20*47-1BP4 7001CTYNSULP4 7001UCG/GNP4
25TAC62BSUC10PN7B BST25*62-1BP4 7002CTYNSULP4 7002UCG/GNP4
30TAC62BSUC10PN7B BST30*62-1BP4 7003CTYNSULP4 7003UCG/GNP4
35TAC72BSUC10PN7B BST35*72-1BP4 7004CTYNSULP4 7004UCG/GNP4
40TAC72BSUC10PN7B BST40*72-1BP4 7005CTYNSULP4 7005UCG/GNP4
40TAC90BSUC10PN7B BST40*90-1BP4 7006CTYNSULP4 7006UCG/GNP4
45TAC75BSUC10PN7B BST45*75-1BP4 7007CTYNSULP4 7007UCG/GNP4
45TAC100BSUC10PN7B BST45*100-1BP4 7008CTYNSULP4 7008UCG/GNP4
50TAC100BSUC10PN7B BST50*100-1BP4 7009CTYNSULP4 7009UCG/GNP4
65BAR10STYNDBLP4 HTA013UADB/GNP4 7010CTYNSULP4 7010UCG/GNP4
70BAR10STYNDBLP4 HTA014UADB/GNP4 7011CTYNSULP4 7011UCG/GNP4
75BAR10STYNDBLP4 HTA015UADB/GNP4 7012CTYNSULP4 7012UCG/GNP4
65BAR10STYNDBLP4 HTA016UADB/GNP4 7013CTYNSULP4 7013UCG/GNP4
85BAR10STYNDBLP4 HTA017UADB/GNP4 7014CTYNSULP4 7014UCG/GNP4
90BAR10STYNDBLP4 HTA018UADB/GNP4 7015CTYNSULP4 7015UCG/GNP4
100BAR10STYNDBLP4 HTA020UADB/GNP4 7016CTYNSULP4 7016UCG/GNP4
110BAR10STYNDBLP4 HTA022UADB/GNP4 7018CTYNSULP4 7018UCG/GNP4
120BAR10STYNDBLP4 HTA024UADB/GNP4 7020CTYNSULP4 7020UCG/GNP4
130BAR10STYNDBLP4 HTA026UADB/GNP4 7022CTYNSULP4 7022UCG/GNP4
140BAR10STYNDBLP4 HTA028UADB/GNP4 7024CTYNSULP4 7024UCG/GNP4
150BAR10STYNDBLP4 HTA030UADB/GNP4 7026CTYNSULP4 7026UCG/GNP4
160BAR10STYNDBLP4 HTA032UADB/GNP4 7028CTYNSULP4 7028UCG/GNP4
65BTR10STYNDBLP4 HTA013UDB/GNP4 7200CTYNSULP4 7200CG/GNP4
70BTR10STYNDBLP4 HTA014UDB/GNP4 7201CTYNSULP4 7201CG/GNP4
75BTR10STYNDBLP4 HTA015UDB/GNP4 7202CTYNSULP4 7202CG/GNP4
65BTR10STYNDBLP4 HTA016UDB/GNP4 7203CTYNSULP4 7203CG/GNP4
85BTR10STYNDBLP4 HTA017UDB/GNP4 7204CTYNSULP4 7204CG/GNP4
90BTR10STYNDBLP4 HTA018UDB/GNP4 7205CTYNSULP4 7205CG/GNP4
100BTR10STYNDBLP4 HTA020UDB/GNP4 7206CTYNSULP4 7206CG/GNP4
110BTR10STYNDBLP4 HTA022UDB/GNP4 7207CTYNSULP4 7207CG/GNP4
120BTR10STYNDBLP4 HTA024UDB/GNP4 7208CTYNSULP4 7208CG/GNP4
130BTR10STYNDBLP4 HTA026UDB/GNP4 7209CTYNSULP4 7209CG/GNP4
140BTR10STYNDBLP4 HTA028UDB/GNP4 7210CTYNSULP4 7210CG/GNP4
150BTR10STYNDBLP4 HTA030UDB/GNP4
160BTR10STYNDBLP4 HTA032UDB/GNP4
45BNR10STYNDBLP4 HSB009DB/GNP4
50BNR10STYNDBLP4 HSB010DB/GNP4
55BNR10STYNDBLP4 HSB011DB/GNP4
60BNR10STYNDBLP4 HSB012DB/GNP4
65BNR10STYNDBLP4 HSB013DB/GNP4
70BNR10STYNDBLP4 HSB014DB/GNP4
80BNR10STYNDBLP4 HSB016DB/GNP4
90BNR10STYNDBLP4 HSB018DB/GNP4
100BNR10STYNDBLP4 HSB020DB/GNP4

NSK 90BAR10TYNDBLP4A Precision Machine Tool Spindle Bearings application and packings



Packing of NSK CNC machine tool spindle bearings precision bearings  :

  1):Inner Plastic Bag+ Paper Box + Carton(+Pallet);

  2):Big sizes:Wooden Case
