KOYO Wheel Hub Bearings DAC3972D2RSF

> > >

KOYO Wheel Hub Bearings DAC3972D2RSF

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
needle roller bearing
CARB toroidal roller bearings
thrust roller bearings
Deep groove ball bearings
Angular contact ball bearings
Thrust ball bearings
Self-aligning ball bearing
Y-bearing
Description
Technical
Application
Pictures

The Brief Description of  DAC series bearings:



DAC wheel Hub Bearings are double row angular contact ball bearings. Each wheel hub bearing (wheel bearing) consists of one outer ring, two inner rings.The DAC type auto wheel bearing is a double row angular contact ball bearing incorporating an integral outer ring and two separable inner rings; which is available either with seals or without seals.



Wheel bearings (hub bearing) main role is to load and for the rotation of the hub to provide accurate guidance, both axial load radial load again, is a very important component. Traditional automotive wheel bearing is composed of two tapered roller bearings or ball bearings combination, bearing installation, oiled, and adjust the clearance seals are conducted in automotive production line.

DAC series bearings Hub Bearing DAC3972D2RSF details:


Name Value
Structure wheel hub bearing
Model Number DAC3972D2RSF
Dimension

39X72X40mm

Inner / outer ring Chrome steel/Gcr15
Cage Chrome steel/Gcr15
Ball Chrome steel/Gcr15
Mass 0.42kg
Precision Rating P0 P5 P6
Certification BV & ISO9001:2008
Packing Poly bag/Yuki white box/5 layer carton/Pallet
 Appication

All kinds of wheel hub bearings:

   1. The Germany's automobile brands;
   2. The Italian automobile brands;
   3. The French automobile brands;
   4. The British automobile brands;
   5. The American automobile brands.

 Specialty

KOYO Hub Bearing KOYO bearing

1) Very durable

 2) High speed running

 3) High quality

 4) 2 years warranty

  5) Good & competitive price


Bearing No. Dimensions(mm) Weight
Model   Japan  Germany d D B C kg
DAC255200206     617546A 25 52 20.6 20.6 0.19
DAC25520037 546467   445539AA 25 52 37 37 0.31
DAC27600050   513071(BCA) IR8653(IRB) 27 60 50 50 0.56
DAC285842   DAC2858W 28BW03A 28 58 42 42 0.47
DAC28610042   DAC286142AW   28 61 42 42 0.56
DAC30600037   DAC3060372RS   30 60 37 37 0.42
DAC30600337 529891AB DAC3060W BA2B 633313C 30 60.03 37 37 0.45
545312 418780
DAC30640042   DAC3064W2RKBCS28 34BWD03ACA78 30 64 42 42 0.49
DAC30630342   DAC3063W-1   30 63.03 42 42 0.54
DAC30650021 522372   BB1B 630374/C4 30 65 21 21 0.27
543909 614593
DAC34620037 531910   309724 34 62 37 37 0.41
561447 BAHB 311316B
DAC34640034   DAC3464D   34 64 34 34 0.43
DAC34640037 532066DE DAC3464G1 309726DA 34 64 37 37 0.48
540466B
DAC34660037 580400CA   559529 34 66 37 37 0.5
636114A
DAC34680037   DAC3468DW   34 68 37 37 0.55
DAC34680042   DAC34682RS   34 68 42 42 0.64
DAC35640037   DAC3564A-1   35 64 37 37 0.41
DAC35650035 546238A DAC3565WCS30 BT2B 445620B 35 65 35 35 0.4
443952
DAC35660032     445980A 35 66 32 32 0.42
DAC35660033     BAHB 633676 35 66 33 33 0.43
DAC36720434       36 72.04 34 34 0.58
DAC37720437 633028 562398   37 72.04 37 37 0.59
DAC37720037 633541B 562398A   37 72 37 37 0.59
DAC37740045 309946AC     37 74 45 45
DAC38710039 510062   30BWD22 38 71 39 39 0.62
DAC38720236/33     DAC3872W-3 38 72.02 36 33 0.56
DAC39680037 311315DB 309692 540733 528810   39 68 37 37 0.48

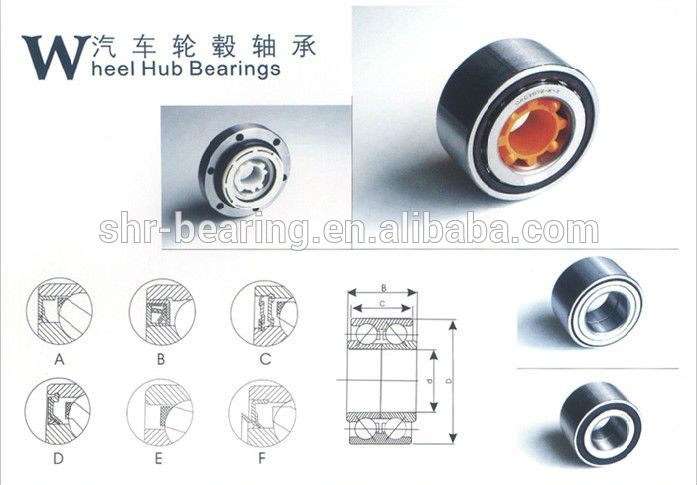

Our Auto Wheel DAC series Hub Bearing Application :

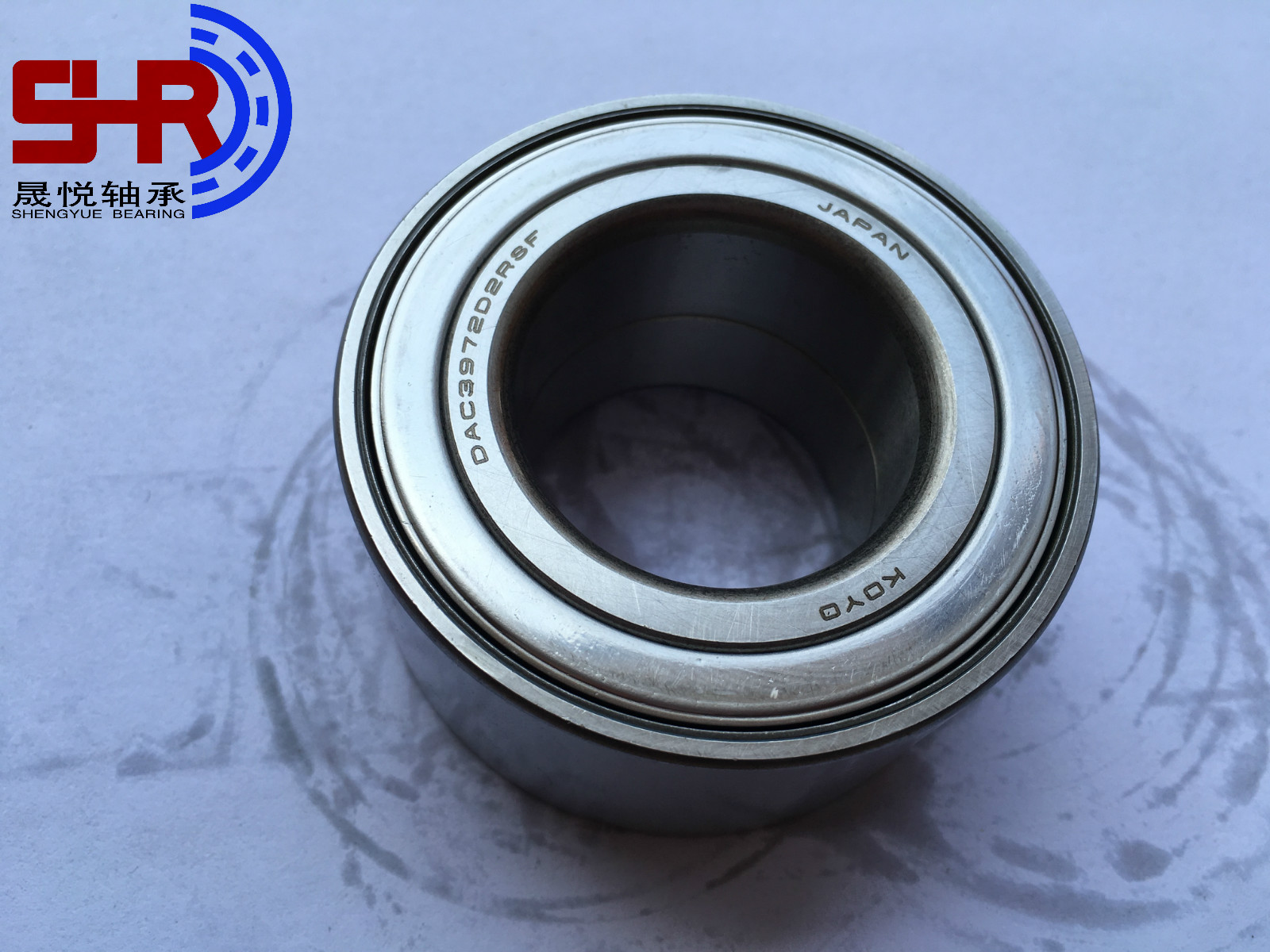

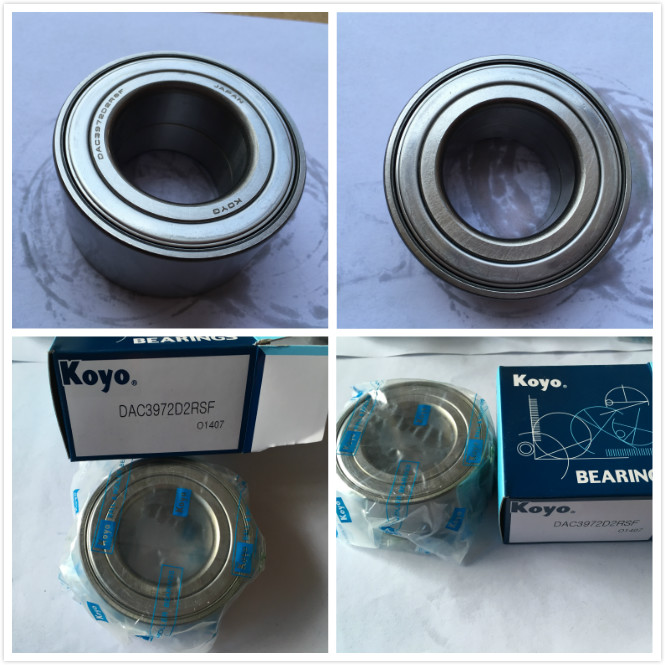

DAC Hub Bearing DAC3972D2RSF DAC series Pictures:

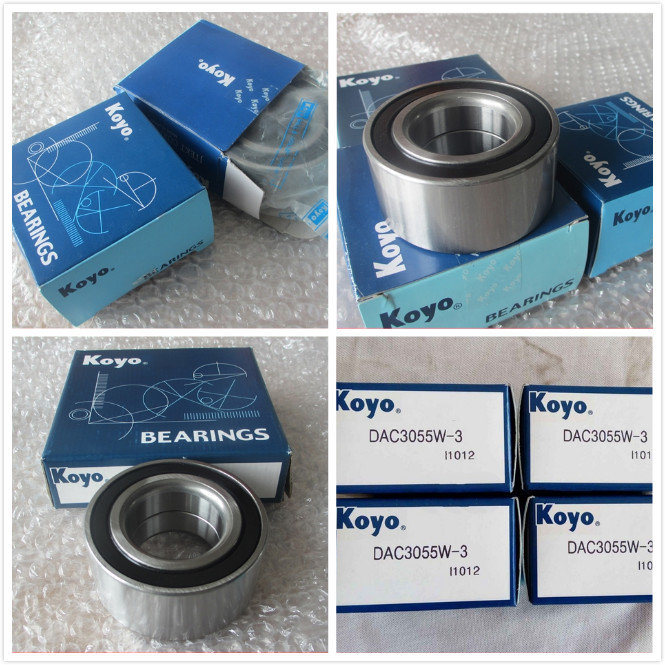

KOYO DAC series other model number bearings pictures:
