The Brief Description of  IKO Cam Follower Roller Bearings:

A cam follower roller bearing (also called “track follower”) is a specialty roller bearing designed to follow tracks or cams and in a wide range of linear motion systems. Cam followers are often used on conveyors, process transfer lines, such as those used int industries such as food and beverage, plastics, glass and among others. KR cam followers are also popular for defense and aircraft applications, where maintainability and system reliability are important design considerations.  To smoothly and evenly distribute the loads, cam followers usually are designed with a full complement of rolling elements. However, there is more than one type of configuration for cam followers, but the most distinctive characteristic is how the cam follower is mounted to its counterpart.

IKO Cam Follower Roller Bearing CF16 Details:

P/N IKO CF16 Bearings
Brand IKO
Weight 0.170kg
Precision ABEC-1
Type Cam Followers
Lubrication Grease
Material Chrome Steel
Package Plastic Bag and Box

Needle roller bearings series:



· Needle Roller Bearing (Series NK,NKS, RNA49, RNA48, NKI, NKIS, NA49, NA48, RNA69, NA69, RNA49..RS, RNA49..2RS, NA49..RS, NA49..2RS, RNAO, NAO, IR, LR, RNAV, NAV, RPNA, PNA etc.)

· Stud Type Track Roller (Series KR, KRE, KR..PP, KRE..PP, KRV, KRVE, KRV..PP, KRVE..PP, NUKR, NUKRE etc.)

· Yoke Type Track Roller Bearing (Series RSTO, RSTO..X, STO, STO..X, RNA22..2RS, RNA22..2RSX, NA22..2RS, NA22..2RSX, NATR, NATV, NUTR, NUTR..X etc.)

· Axial Bearing (Series AXK, AXW, K811, K812, K893, K874, K894, K/KS, KK/KKS, KZK, KBK, KNL etc.)

· Drawn Cup Needle Roller Bearing (Series HK SCE SCH, BK BCE BCH, HK..RS, HK..2RS, BK..RS etc.)

IKO Different Types of Cam Follower Roller Bearing Structures:


Bearing No. Boundary dimensions(mm) Basic load ratings(N) Limiting speeds(rpm)
d D C B1 B2 B3 G1 S H Cr Cor Greas
CF6 6 16 11 12   28 9 1 3 270 170 25000
CF8 8 19 11 12   32 11 1.25 4 300 210 20000
CF10 10 22 12 13   36 13 1.25 4 410 320 17000
CF10-1 10 26 12 13   36 13 1.25 4 410 320 17000
CF12 12 30 14 15 6 40 14 1.5 6 590 450 14000
CF12-1 12 32 14 15 6 40 14 1.5 6 590 450 14000
CF16 16 35 18 19.5 8 52 18 1.5 6 850 760 10000
CF18 18 40 20 21.5 10 58 20 1.5 8 1180 1220 8500
CF20 20 52 24 25.5 12 66 22 1.5 8 1630 1690 7000
CF20-1 20 47 24 25.5 12 66 22 1.5 8 1630 1690 7000
CF24 24 62 29 30.5 12 80 25 1.5 8 2160 2210 6500
CF24-1 24 72 29 30.5 12 80 25 1.5 8 2160 2210 6500
CF30 30 80 35 37 15 100 32 1.5 8 2160 2210 6500
CF30-1 30 85 35 37 15 100 32 1.5 8 2830 3700 5000
CF30-2 30 90 35 37 15 100 32 1.5 8 2830 3700 5000




Application:

Agricultural machinery industry, construction industry, hydro and wind engineering industry, construction machinery industry, machine tools and manufacturing machinery industry, material handling and packaging industry, port engineering industry, electric tools industry, transmission industry, the semiconductor industry, pump and fan industry, industrial robotics and automation industry, rubber, plastic and chemical industry, textile industry, tractor industry, woodworking machinery industry .

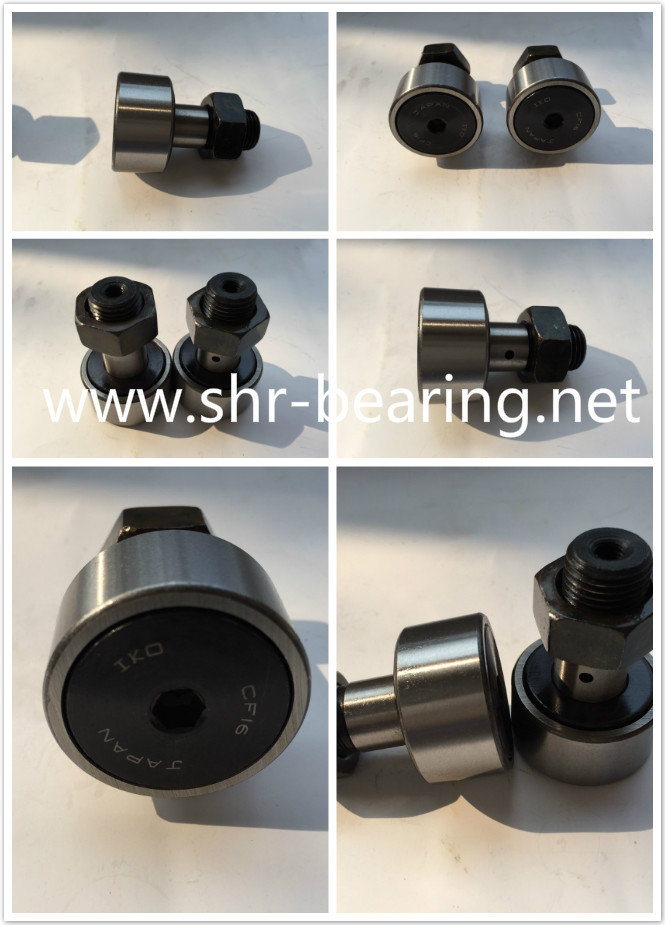

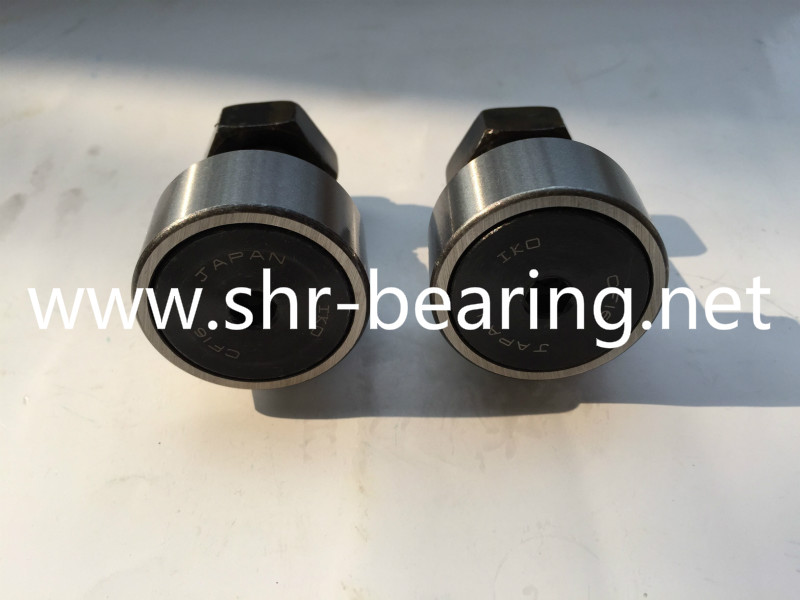

IKO Cam Follower Roller Bearings Pictures:
