FAG QJ209MPA.C3 Angular Contact Ball Bearing, Single Row Four point contact bearings

> > >

FAG QJ209MPA.C3 Angular Contact Ball Bearing, Single Row Four point contact bearings

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
needle roller bearing
CARB toroidal roller bearings
thrust roller bearings
Deep groove ball bearings
Angular contact ball bearings
Thrust ball bearings
Self-aligning ball bearing
Y-bearing
Description
Technical
Application
Pictures

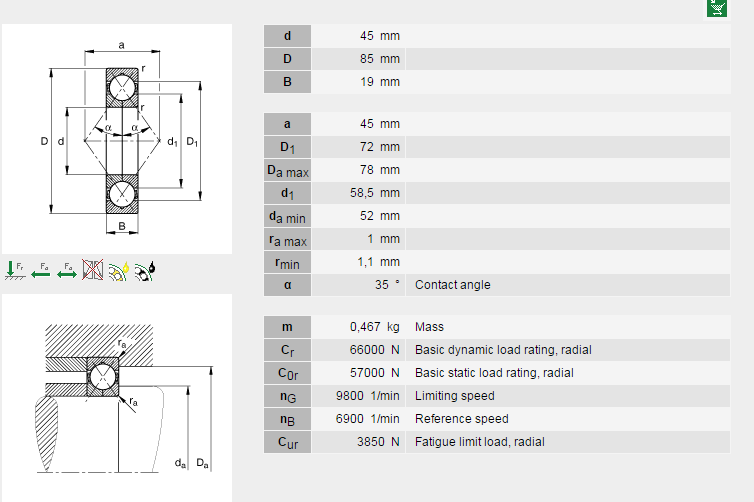

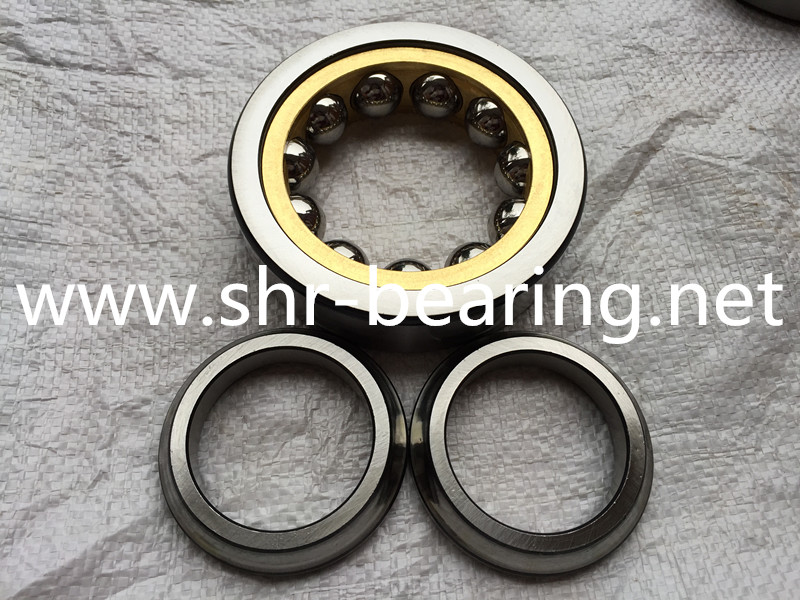

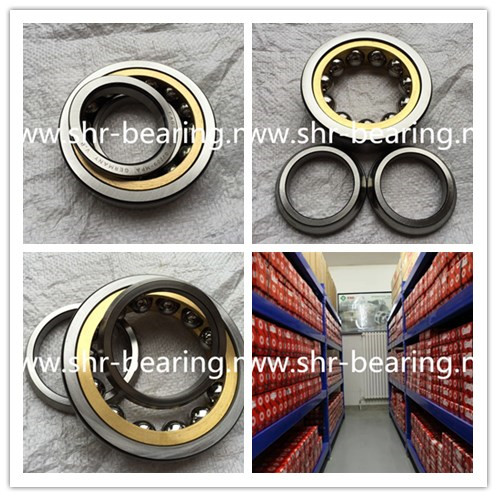

FAG QJ209MPA Angular Contact Ball Bearing, Single Row, Open, 35° Contact Angle, Brass Cage, Normal Clearance, Metric, 45mm ID, 85mm OD, 19mm Width




Single row angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet steel or brass cages. The raceways of the inner and outer rings are offset in relation to each other in the direction of the bearing axis. The bearings are available in open and sealed versions. Their self-alignment capacity is very small. X-life : Many sizes of angular contact ball bearings are supplied in X-life design. These bearings are indicated in the dimension tables. Bearings of X-life quality have an improved raceway geometry as well as optimised surfaces. This gives a significant increase in the fatigue limit load of the bearings. In calculation of the expanded adjusted rating life, values up to 50% higher are achieved. In certain applications, a smaller design of bearing arrangement can therefore be used if necessary.
FAG angular contact ball bearing Suffixes:

B Angular contact ball bearing with 40° contact angle
Sealing
2RS Sealing washers on both sides
RSO Sealing washer (outside in O arrangement)
RSX Sealing washer (outside in X arrangement)
2RSD Non-contact sealing washers on both sides
RSDO Non-contact sealing washer (outside in O arrangement)
RSDX Non-contact sealing washer (outside in X arrangement)
2Z Sealing shields on both sides
ZO Sealing shield (outside in O arrangement)
ZX Sealing shield (outside in X arrangement)
Cage
JP Sheet steel window cage, rolling element guided
MP Brass solid window cage, rolling element guided
TVP Solid window cage made from glass fibre reinforced polyamide, rolling element guided
Tolerance
P5 Tolerance class P5
P6 Tolerance class P6
Universal design
UA Universal design for fitting in pairs,
bearing pair has slight axial internal clearance in O and X arrangements
UL Universal design for fitting in pairs,
bearing pair has slight preload in O and X arrangements
UO Universal design for fitting in pairs,
bearing pair is clearance-free in O and X arrangements

FAG QJ209MPA Angular Contact Ball Bearing series model:


 QJ 209 MA • QJ 209 MA/C2
• QJ 209 MA/C2L • QJ 209 MA/C3
• QJ 209 MA/C3VQ412 • QJ 209 MA/W64
• QJ 209 MPA • QJ 209 N.TVP
• QJ 209 N2MA • QJ 209/C2

• QJ 309 • QJ 309 LA/P62H
• QJ 309 MA • QJ 309 MA
• QJ 309 MA/C2L • QJ 309 MA/C3
• QJ 309 MA/W64 • QJ 309 N2MA/C2L
• QJ 309 N2PHAS/C2L • QJ 309 NMA-C3
• QJ 309 NR • QJ 309 NR/TGP1/C3/SV81A
• QJ 309 NRTN9/C3VE258 • QJ 309 TN9/C3
• QJ 309 TVP.C3 • QJ 309/C2

• QJ 208 • QJ 208 MA
• QJ 208 MA/C3 • QJ 208 N.TVP
• QJ 208 N2MA • QJ 208 NR/VB122
• QJ 208 NRMA • QJ 208 TVP

FAG angular contact ball bearing application:

1, four-point contact ball bearings can also bear the moment load, both a single row angular contact ball bearings and double row angular contact ball bearings function.

2, four-point contact ball bearing contact is only formed when the two points to ensure the normal work, it is generally applicable to those pure axial load or axial load of the composite load was two points of contact occasions.

3, four-point contact ball bearing high speed limit, but also suitable for those high-speed operation of the occasion.
