SYBR Hydroelectric generator thrust roller bearing 87409 cylindrical roller thrust bearing

> > >

SYBR Hydroelectric generator thrust roller bearing 87409 cylindrical roller thrust bearing

Our company can provide specific bearing parameter, drawings, one-to-one solutions, and considerate after sales service. For more product information, please consult us at any time .We provide 24-hour service and await your calls respectfully!
needle roller bearing
CARB toroidal roller bearings
thrust roller bearings
Deep groove ball bearings
Angular contact ball bearings
Thrust ball bearings
Self-aligning ball bearing
Y-bearing
Description
Technical
Application
Pictures
SYBR Hydroelectric generator thrust roller bearing 87409 cylindrical roller thrust bearing

Description for thrust bearing 87409 :

1. The main components of cylindrical roller thrust bearing; the cylindrical roller and cage thrust assembies, the shaft washers, and the housing washers.

2. The cylindrical roller thrust bearings are simple in form and design. The bearings are produced in single row and double row designs.

3. The cylindrical roller thrust bearings are suitable for arrangements that have to support heavy axial loads.



Features:

  •  low axial section height,
  •  high load capacity,
  •  high rigidity and can support axial forces in one direction
  • restricted tolerances

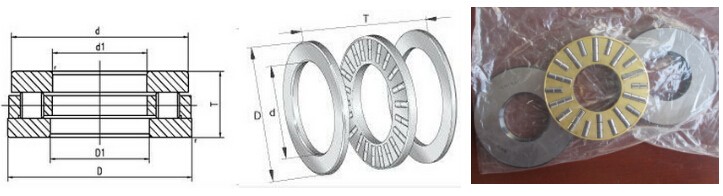

thrust bearing_thrust roller bearing 87409.jpg



Thrust Bearing model 87409
d 45 mm
D 100 mm
T 25 mm
Mass (KG) 1.054 KG
Cr (KN) 154
Cor (KN) 560
Cage  Brass cage
HS CODE 84828000
Material Chrome steel


SYBR Hydroelectric generator thrust roller bearing 87409 cylindrical roller thrust bearing models


d D B Model Dynamic static grease weight /kg
45 85 24 89309 139 445 3600 0.615
45 100 25 87409 154 560 3200 1.054
50 70 14 81110 61 177 4000 0.14
50 78 22 81210 117 315 3700 0.356
50 95 27 89310 167 560 3200 0.887
50 110 27 87410 200 740 2900 1.316
50 110 36 89410 295 900 3000 1.316
50 110 31 89410 295 900 3000 1.125
55 78 16 81111 90 300 3600 0.218
55 90 25 81211 154 405 3300 0.568
55 105 30 89311 184 600 2900 1.18
55 120 29 87411 222 870 2600 1.698
60 85 17 81112 103 315 3300 0.266
60 95 26 87212 172 480 3100 0.642





SYBR Hydroelectric generator thrust roller bearing 87409 cylindrical roller thrust bearing applications

Applications

• Stationary gearboxes

• Automotive gearboxes

• Electric motors

• Vibration motors

• Vibration generators for road rollers

• Pumps and compressors

• Ventilators

• Material handling equipment

• Paper machines

• Textile machinery

• Rail vehicles

• Rolling mills

• Wind turbines





Packing :
1)Neutral package & wooden package
2)Carton package+pallet
3)Wooden package+pallet
4)As customer request
Anti-rust oil + plastic bag + paper box +carton +pallet

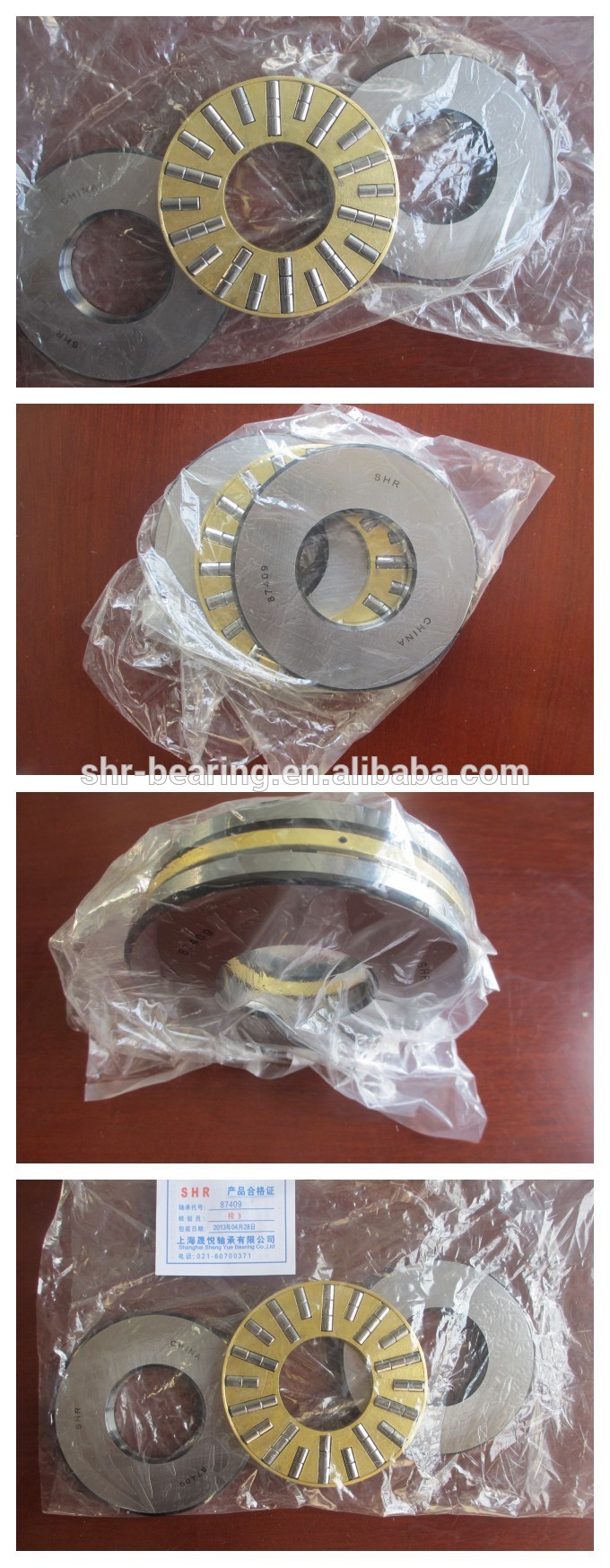

SYBR Hydroelectric generator thrust roller bearing 87409 cylindrical roller thrust bearing photos :

thrust roller bearing 87409_thrust bearing.jpg
