SYBR 234418-M-SP double direction axial angular contact thrust ball bearings

The double direction precision bearings are therefore particularly suitable for precision spindle bearing arrangements in machine tools. In this case, the axial angular contact ball bearing is combined with a double row cylindrical roller bearing with a tapered bore, which supports the radial forces.
Sealing

Axial angular contact ball bearings are of an open design.

The bearings can be lubricated with oil or grease. Higher speeds can be achieved with oil lubrication. In order to allow oil to flow between the two rows of balls, the housing locating washer has a lubrication groove and lubrication holes.


At high speeds, overlubrication of the radial bearing can be prevented if the installation space is separated between the axial angular contact ball bearing and the cylindrical roller bearing.

1. Type:axial angular contact ball bearing

2. Application: CNC machine,precision equipment and so on


Features:

(1) Double direction

(2) Super precision

(3) Brass cage

(4) Competitive price

(5) Long use life



Brand:

SYBR  or other brand

Series:

Axial Angular Contact Ball Bearing

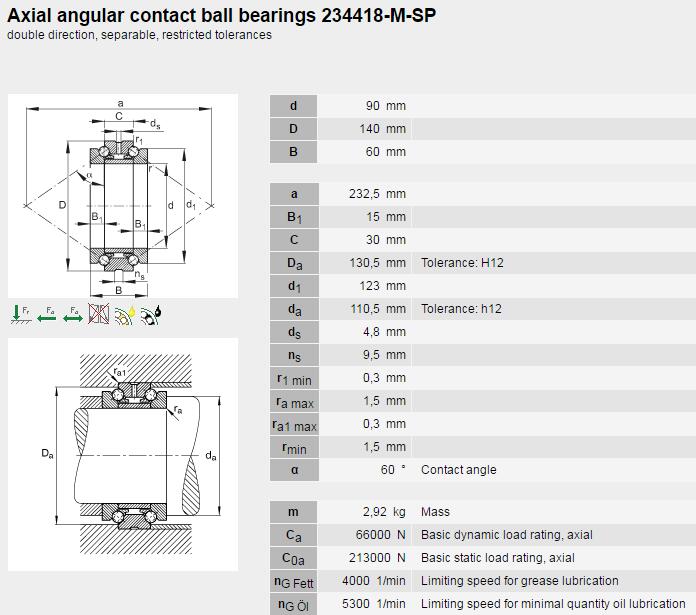

Model No.:

234418-M-SP

Inner Diameter

90 (mm)

Outer Diameter

140 (mm)

Thickness

60 (mm)

Bearing Feature:

double direction,brass cage,super precison

Weight

2.92 KG


SYBR 234418-M-SP double direction axial angular contact thrust ball bearings models reference :



SYBR 234418-M-SP double direction axial angular contact thrust ball bearings application :



Double row: oil pump, roots blower, air compressor, all kinds of transmission gearbox, fuel injection pump, printing machinery, etc.

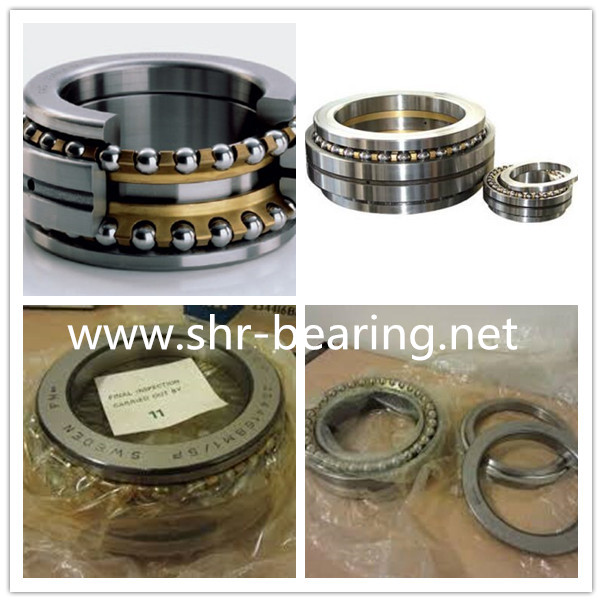

SYBR 234418-M-SP double direction axial angular contact thrust ball bearings photos :
