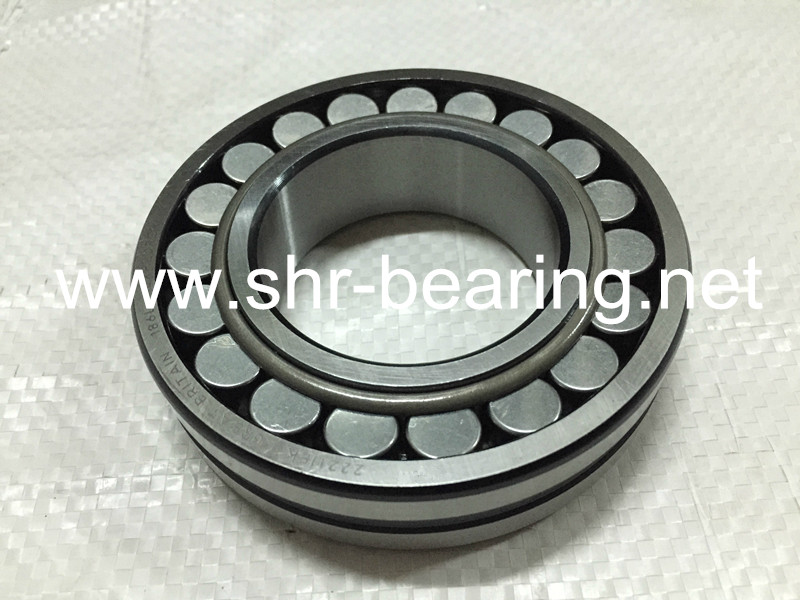

SYBR 22222 EK CC spherical roller bearing rolling bearing

Spherical roller bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages. The inner rings with cylindrical or tapered bores.

It has two rows of rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. Therefore, the bearings are self-aligning and insensitive to misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. They are designed to accommodate heavy radial loads, as well as heavy axial loads in both directions.

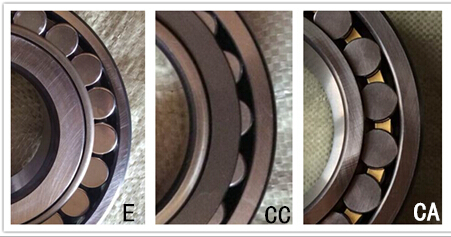

Cage types :




Spherical Roller Bearings dimensional series are:

  • 21300 Series - ISO Dimension Series 13 Spherical Roller Bearings
  • 22200 Series - ISO Dimension Series 22 Spherical Roller Bearings
  • 22300 Series - ISO Dimension Series 23 Spherical Roller Bearings
  • 23000 Series - ISO Dimension Series 30 Spherical Roller Bearings
  • 23100 Series - ISO Dimension Series 31 Spherical Roller Bearings
  • 23200 Series - ISO Dimension Series 32 Spherical Roller Bearings
  • 232 /  Series - Extra Large ISO 32 Series Spherical Roller Bearing
  • 23900 Series - ISO Dimension Series 39 Spherical Roller Bearings
  • 24000 Series - ISO Dimension Series 40 Spherical Roller Bearings
  • 24100 Series - ISO Dimension Series 41 Spherical Roller Bearings
  • 29000 Series - ISO Dimension Series 90 Spherical Thrust Roller Bearings



Spherical roller bearing 22222EK bearing design and specification :

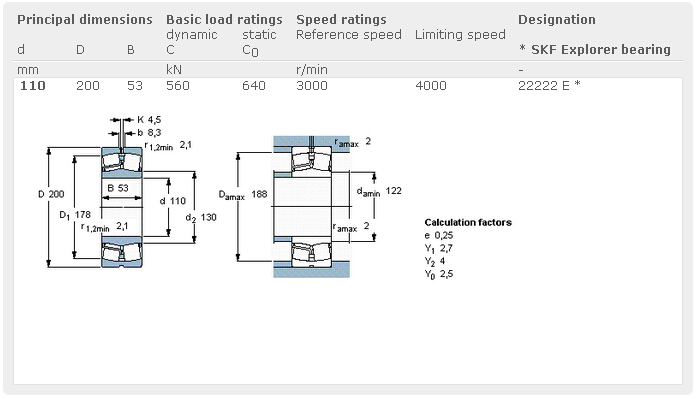

22222E bearing.jpg





Commodity  name

  Spherical roller bearings / aligning roller bearings
Bearing model   22222 bearing
Specification   110*200*53 mm
Cage   steel
Material   GCR-15 bearing steel
Precision   P6 P5
Series   23xxx,24xxx,22xxx,
Seal   Open / seal ( to your request )
Row   Double row

OEM Service

  OEM service
Quality standard   ISO9001:2008 approved
Export Market

  North America,South America,Eastern Europe,Southeast Asia,Africa Mid-east

Stock   YES

SYBR 22222 EK CC spherical roller bearing rolling bearing models series :


22205/20 E *

22211 E *

22314 EK/VA405 *

22205 E *

22211 EK *

24015 CC/W33 *

22205 EK *

21311 E *

24015 CCK30/W33 *

21305 CC

21311 EK *

22215 E *

22206 E *

22311 E *

22215 EK *

22206 EK *

22311 E/VA405 *

21315 E *

21306 CC

22311 EK *

21315 EK *

21306 CCK

22311 EK/VA405 *

22315 E *

22207 E *

22212 E *

22315 EJA/VA405 *

22207 EK *

22212 EK *

22315 EK *

21307 CC

21312 E *

22315 EKJA/VA405 *

21307 CCK

21312 EK *

22216 E *

22208 E *

22312 E *

22216 EK *

22208 EK *

22312 E/VA405 *

21316 E *

21308 E *

22312 EK *

21316 EK *

21308 EK *

22312 EK/VA405 *

22316 E *

22308 E *

24013 CC/W33 *

22316 EJA/VA405 *

22308 E/VA405 *

24013 CCK30/W33 *

22316 EK *

22308 EK *

22213 E *

22217 E *

22209 E *

22213 EK *

22217 EK *

22209 EK *

21313 E *

21317 E *

21309 E *

21313 EK *

21317 EK *

21309 EK *

22313 E *

22317 E *

22309 E *

22313 E/VA405 *

22317 EJA/VA405 *

22309 E/VA405 *

22313 EK *

22317 EJA/VA406 *

22309 EK *

22313 EK/VA405 *

22220 E *

22210 E *

22214 E *

22220 EK *

22210 EK *

22214 EK *

22218 E *

21310 E *

21314 E *

22218 EK *

21310 EK *

21314 EK *

22219 E *

22310 E *

22314 E *

22219 EK *

22310 E/VA405 *

22314 E/VA405 *

21319 E *

22310 EK *

22314 EK *

21319 EK *

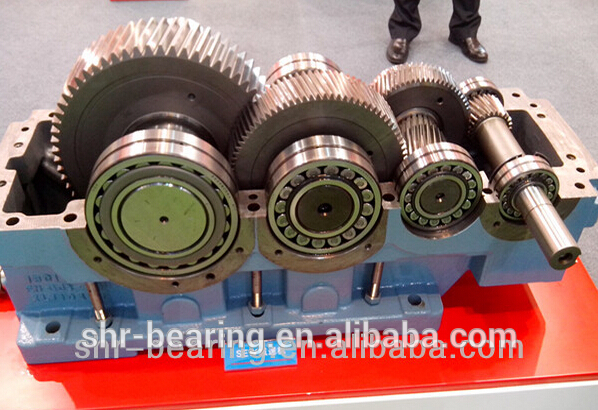

SYBR 22222 EK CC spherical roller bearing rolling bearing applications :




Packing :


SYBR 22222 EK CC spherical roller bearing rolling bearing photos

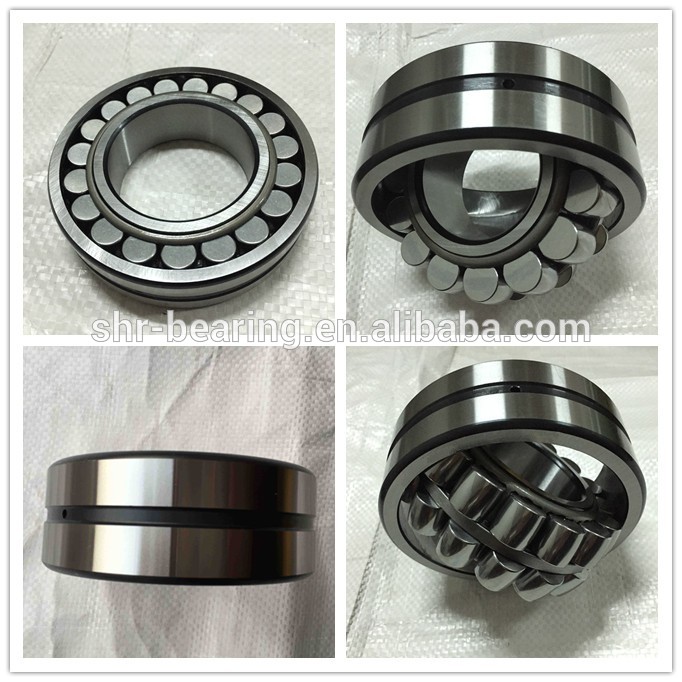

Spherical roller bearing

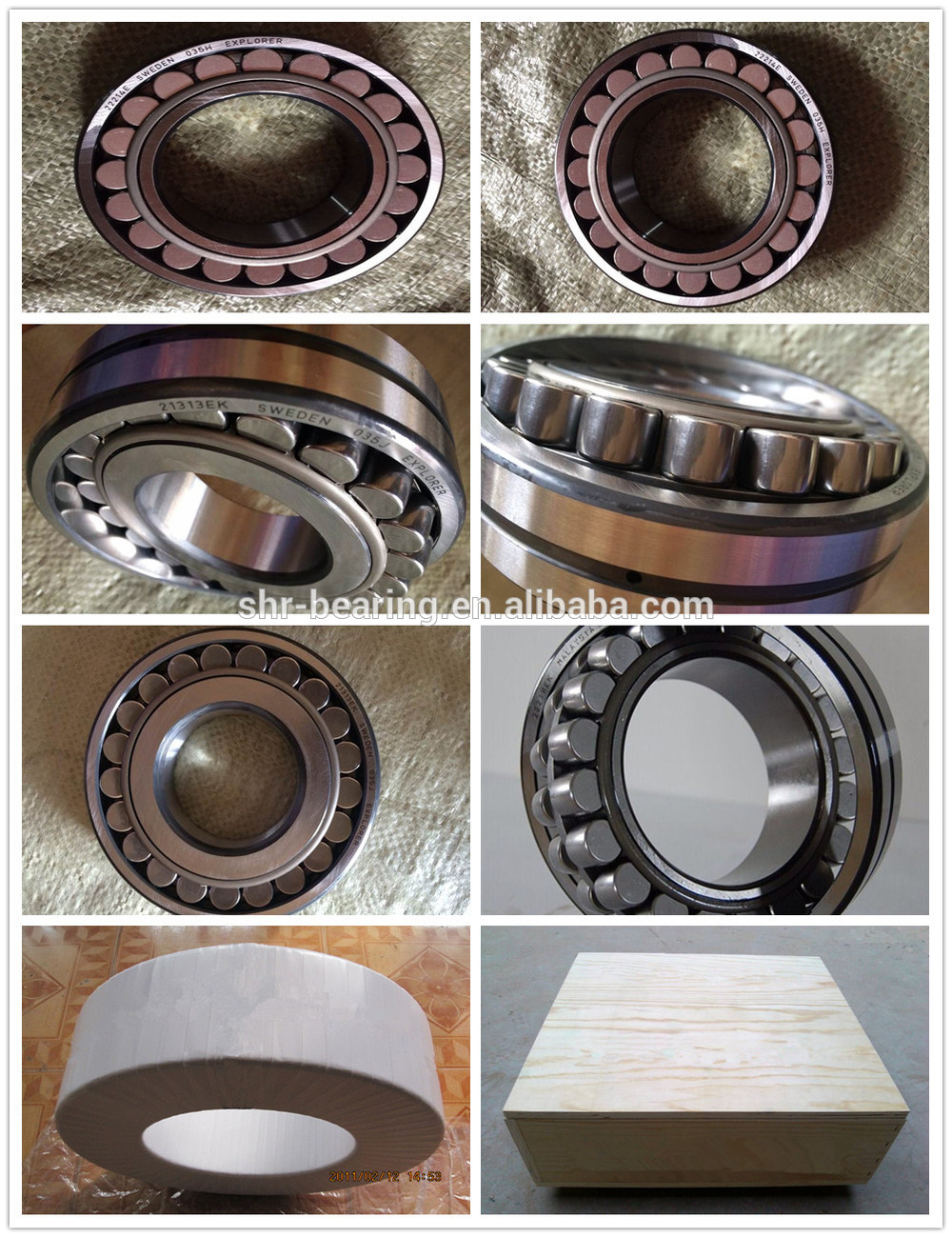

22210E bearings.jpg
